RK1000 Overview

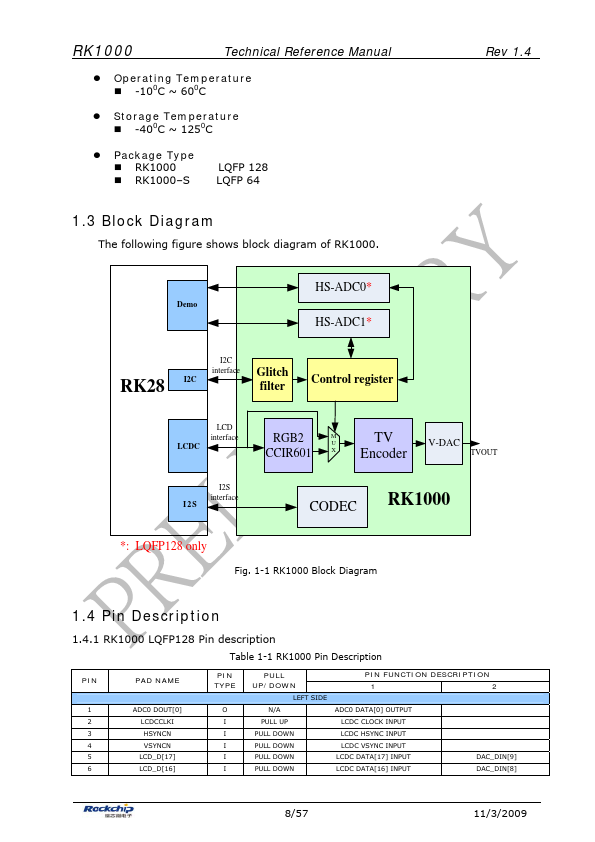

1.4.1 RK1000 LQFP128 Pin description Table 1-1 RK1000 Pin Description PIN 1 2 3 4 5 6 PAD NAME ADC0 DOUT[0] LCDCCLKI HSYNCN VSYNCN LCD_D[17] LCD_D[16] PIN TYPE O I I I I I PULL UP/DOWN PIN FUNCTION DESCRIPTION 1 2 LEFT SIDE N/A ADC0 DATA[0] OUTPUT PULL UP.

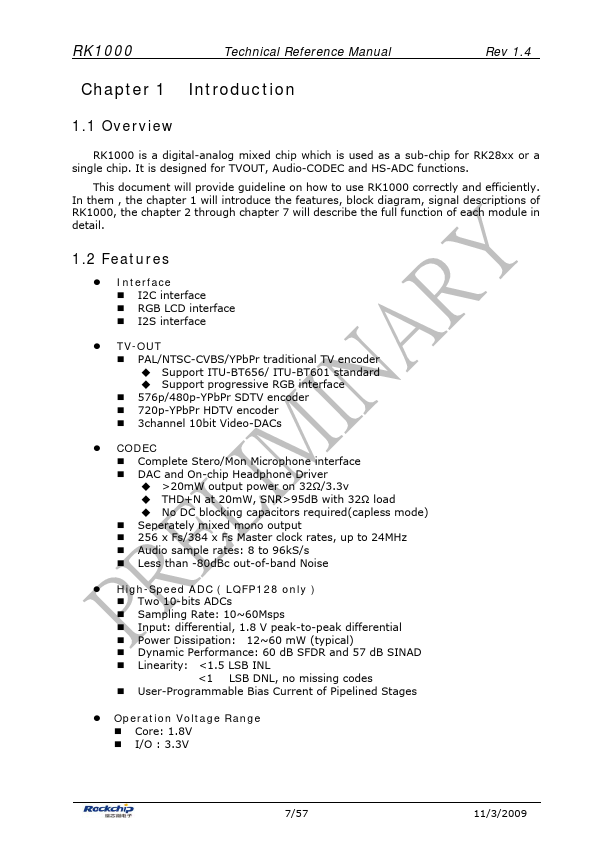

RK1000 Key Features
- I2C interface
- RGB LCD interface
- I2S interface
- PAL/NTSC-CVBS/YPbPr traditional TV encoder Support ITU-BT656/ ITU-BT601 standard Support progressive RGB interface
- 576p/480p-YPbPr SDTV encoder
- 720p-YPbPr HDTV encoder
- 3channel 10bit Video-DACs
- plete Stero/Mon Microphone interface
- DAC and On-chip Headphone Driver >20mW output power on 32Ω/3.3v THD+N at 20mW, SNR>95dB with 32Ω load No DC blocki
- Seperately mixed mono output
