RK2108D Description

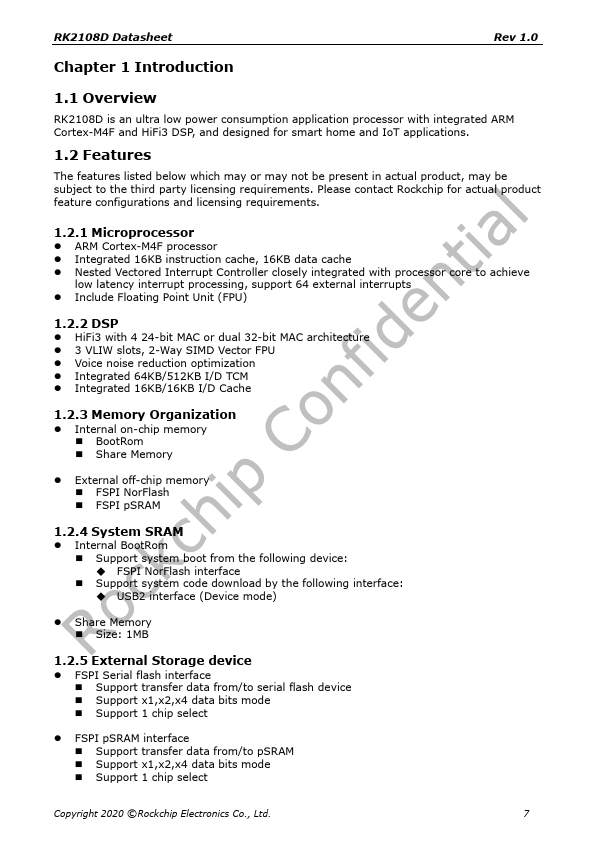

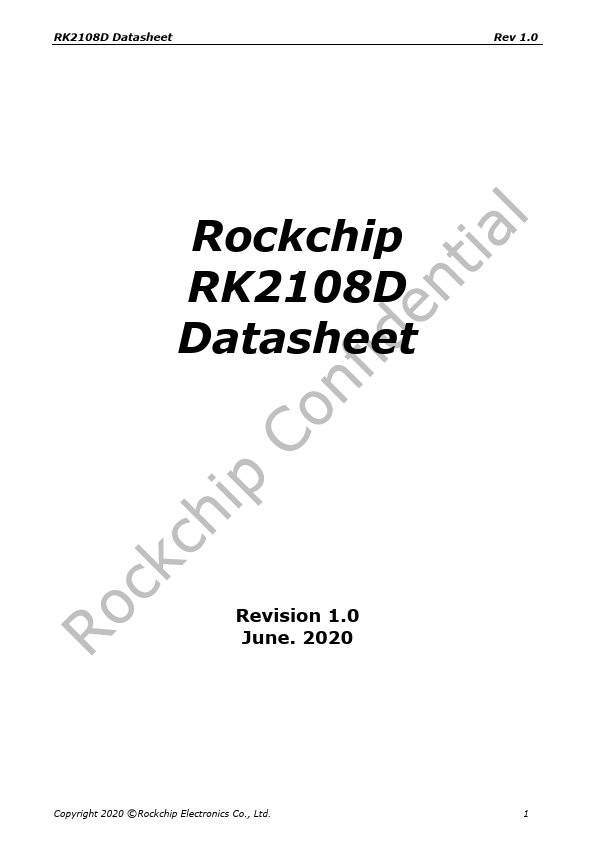

RK2108D Datasheet Rev 1.0 Rockchip RK2108D Datasheet Revision 1.0 June. 2020 Copyright 2020 ©Rockchip Electronics Co., Ltd. 1 RK2108D Datasheet Rev 1.0 Chapter 1 Introduction 1.1 Overview RK2108D is an ultra low power consumption application processor with integrated ARM Cortex-M4F and HiFi3 DSP, and designed for smart home and IoT applications.
RK2108D Key Features
- ARM Cortex-M4F processor
- Integrated 16KB instruction cache, 16KB data cache
- Nested Vectored Interrupt Controller closely integrated with processor core to achieve
- Include Floating Point Unit (FPU)
- HiFi3 with 4 24-bit MAC or dual 32-bit MAC architecture
- 3 VLIW slots, 2-Way SIMD Vector FPU
- Voice noise reduction optimization
- Integrated 64KB/512KB I/D TCM
- Integrated 16KB/16KB I/D Cache
- Internal on-chip memory
