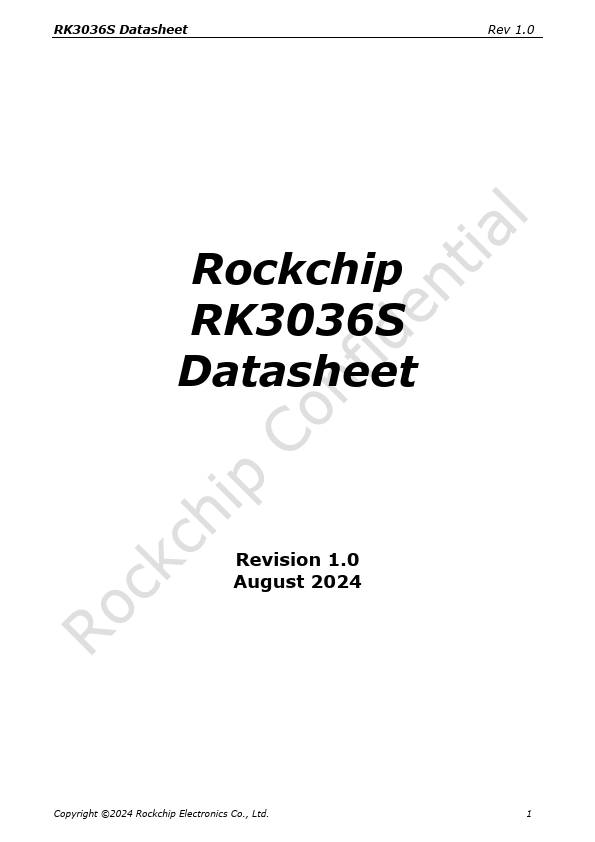

RK3036S Datasheet | Rockchip

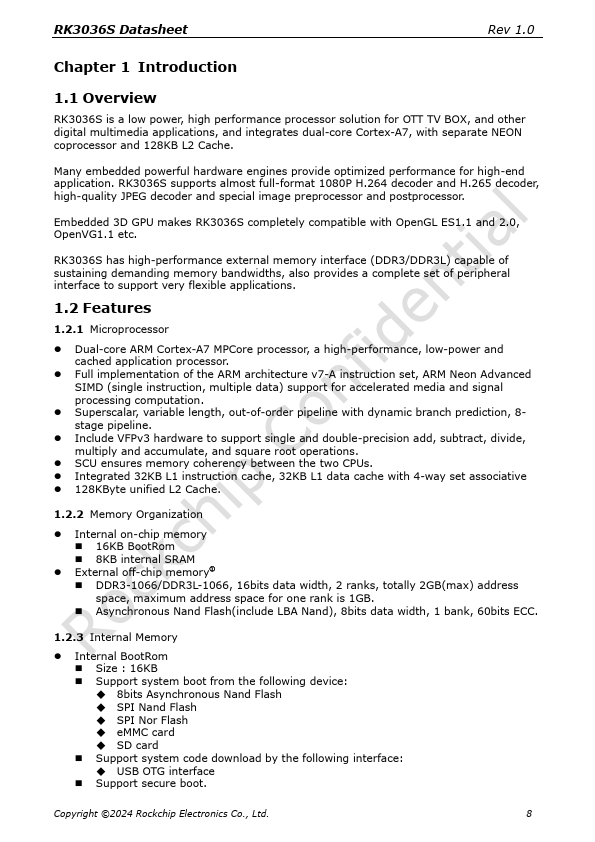

Overview RK3036S is a low power, high performance processor solution for OTT TV BOX, and other digital multimedia applications, and integrates dual-core Cortex-A7, with separate NEON coprocessor and 128KB L2 Cache. Many embedded powerful hardware engines provide optimized performance for high-end application. RK3036S supports almost full-format 1080P H.264 decoder and H.265 decoder, high-quality JPEG decoder and special image preprocessor and postprocessor. Embedded 3D GPU makes RK3036S pletely patible with Open GL ES1.1 and 2.0, Open VG1.1 etc. RK3036S has high-performance external memory interface (DDR3/DDR3L) capable of sustaining demanding memory bandwidths, also provides a plete set of peripheral interface to support very flexible applications. 1.2 Features 1.2.1 Microprocessor - Dual-core ARM Cortex-A7 MPCore processor, a high-performance, low-power and cached application processor. - Full implementation of the ARM architecture v7-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing putation. - Superscalar, variable length, out-of-order pipeline with dynamic branch prediction, 8stage pipeline. - Include VFPv3 hardware to support single and double-precision add, subtract, divide, multiply and accumulate, and square root operations. - SCU ensures memory coherency between the two CPUs. - Integrated 32KB L1 instruction cache, 32KB L1 data cache with 4-way set associative - 128KByte unified L2 Cache. 1.2.2 Memory Organization - Internal on-chip memory - 16KB Boot Rom - 8KB internal SRAM - External off-chip memory① - DDR3-1066/DDR3L-1066, 16bits data width, 2 ranks, totally 2GB(max) address space, maximum address space for one rank is 1GB. - Asynchronous Nand Flash(include LBA Nand), 8bits data width, 1 bank, 60bits ECC. 1.2.3 Internal Memory - Internal Boot Rom - Size : 16KB - Support system boot from the following device: - 8bits Asynchronous Nand Flash - SPI Nand Flash - SPI Nor Flash - e...
