RK3368 Description

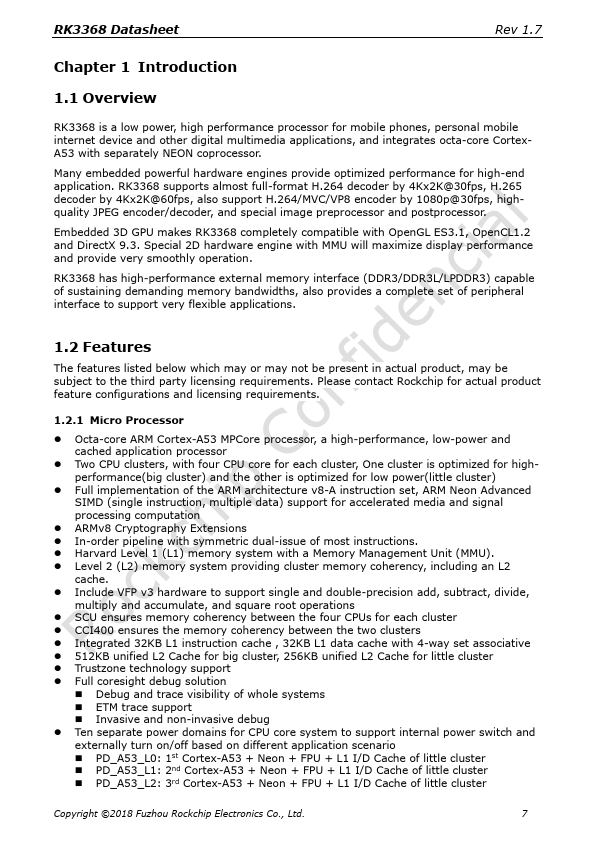

RK3368 Datasheet Rev 1.7 Rockchip RK3368 Datasheet Revision 1.7 Nov. 2018 Copyright ©2018 Fuzhou Rockchip Electronics Co., Ltd. 1 RK3368 Datasheet Rev 1.7 Chapter 1 Introduction 1.1 Overview RK3368 is a low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates octa-core CortexA53 with separately NEON coprocessor.
RK3368 Key Features
- Octa-core ARM Cortex-A53 MPCore processor, a high-performance, low-power and cached application processor
- Two CPU clusters, with four CPU core for each cluster, One cluster is optimized for highperformance(big cluster) and the
- Full implementation of the ARM architecture v8-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple d
- ARMv8 Cryptography Extensions
- In-order pipeline with symmetric dual-issue of most instructions
- Harvard Level 1 (L1) memory system with a Memory Management Unit (MMU)
- Level 2 (L2) memory system providing cluster memory coherency, including an L2
- Include VFP v3 hardware to support single and double-precision add, subtract, divide
- SCU ensures memory coherency between the four CPUs for each cluster
- CCI400 ensures the memory coherency between the two clusters
