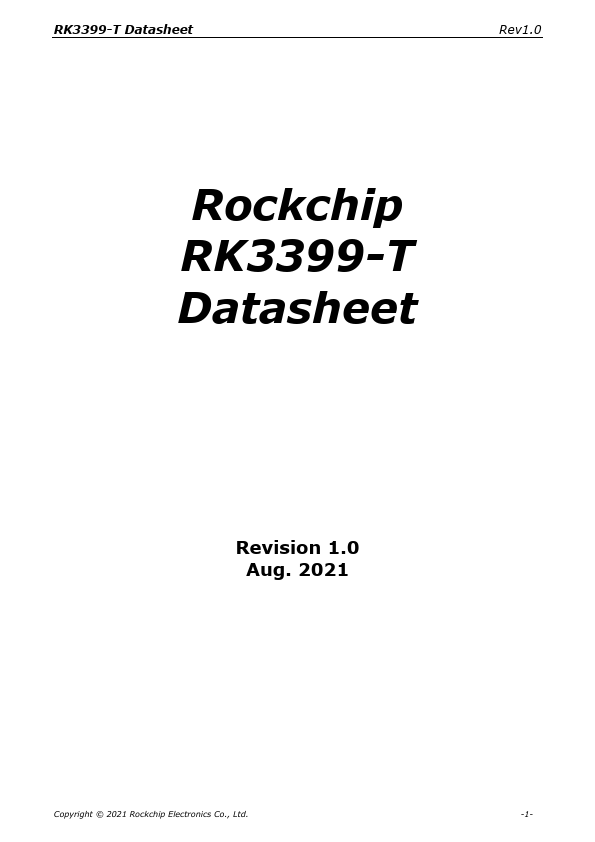

RK3399-T Datasheet | Rockchip

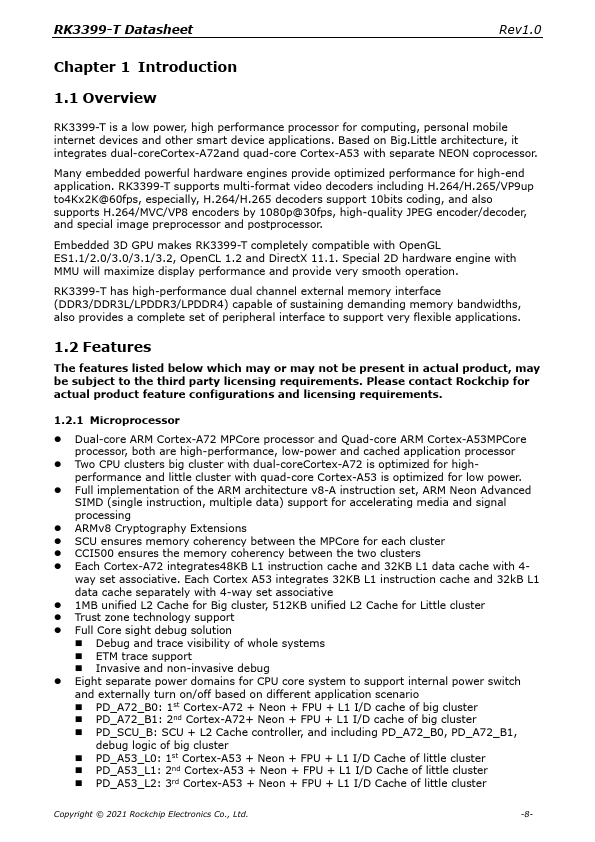

Overview RK3399-T is a low power, high performance processor for puting, personal mobile internet devices and other smart device applications. Based on Big.Little architecture, it integrates dual-core Cortex-A72and quad-core Cortex-A53 with separate NEON coprocessor. Many embedded powerful hardware engines provide optimized performance for high-end application. RK3399-T supports multi-format video decoders including H.264/H.265/VP9up to4Kx2K@60fps, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG encoder/decoder, and special image preprocessor and postprocessor. Embedded 3D GPU makes RK3399-T pletely patible with Open GL ES1.1/2.0/3.0/3.1/3.2, Open CL 1.2 and Direct X 11.1. Special 2D hardware engine with MMU will maximize display performance and provide very smooth operation. RK3399-T has high-performance dual channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining demanding memory bandwidths, also provides a plete set of peripheral interface to support very flexible applications. 1.2 Features The features listed below which may or may not be present in actual product, may be subject to the third party licensing requirements. Please contact Rockchip for actual product feature configurations and licensing requirements. 1.2.1 Microprocessor - Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53MPCore processor, both are high-performance, low-power and cached application processor - Two CPU clusters big cluster with dual-core Cortex-A72 is optimized for highperformance and little cluster with quad-core Cortex-A53 is optimized for low power. - Full implementation of the ARM architecture v8-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerating media and signal processing - ARMv8 Cryptography Extensions - SCU ensures memory coherency between the MPCore for each cluster - CCI500 ensures the memory...
