2SA2072 - Transistors

ROHM

Key Features

1) High speed switching. ( Tf : Typ. : 20ns at IC =.
3A) 2) Low saturation voltage, typically. (Typ. :.
200mV at IC =.
2.0A, IB =.
200mA) 3) Strong discharge power for inductive load and capacitance load. 4) Low Noise. 5) Complements the 2SC5825. zExternal dimensions (Unit : mm) CPT3 (SC-63) 6.5 5.1 2.3 0.5 1.5 5.5 0.9 0.75 z.

2SA2072 transistors by ROHM - Datasheet Preview

Datasheet Details

Part number	2SA2072
Manufacturer	ROHM
File Size	93.34 KB
Description	Transistors
Datasheet	2SA2072 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SA2070	Silicon PNP Transistor	Toshiba Semiconductor
2SA2074	Silicon PNP epitaxial planar type Power Transistors	Panasonic
2SA2075	Silicon PNP epitaxial planar type Power Transistors	Panasonic
2SA2077	Silicon PNP Transistor	Panasonic
2SA2078	Silicon PNP epitaxial planar type Power Transistors	Panasonic

Other Datasheets by ROHM

Part Number	Description
2SA2071	Middle Power transistor
2SA2071P5	Power transistor
2SA2073	Transistors
2SA2005	Transistors
2SA2006	High-speed Switching Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

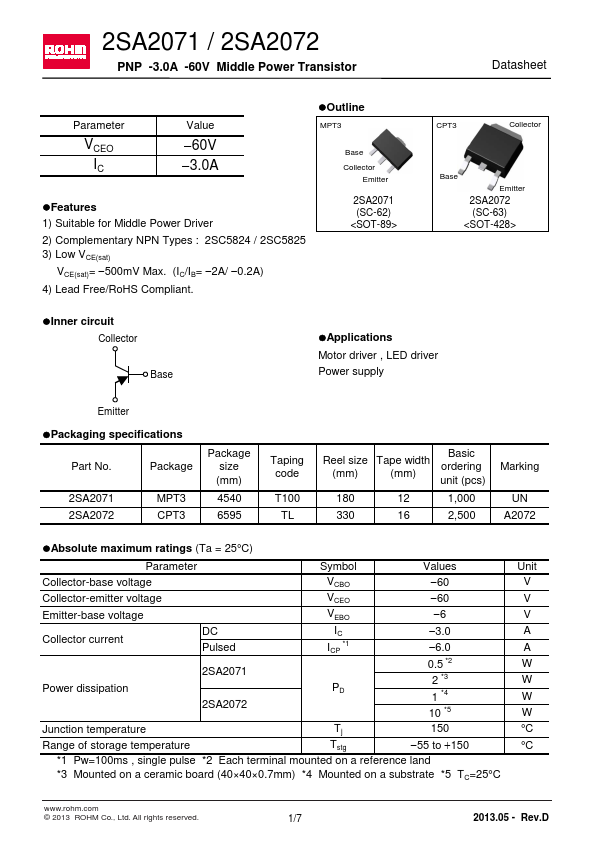

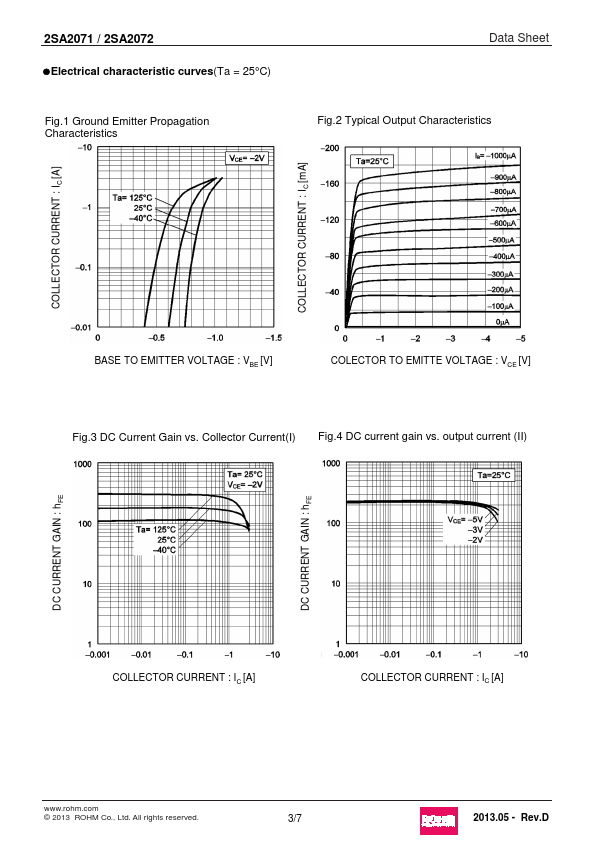

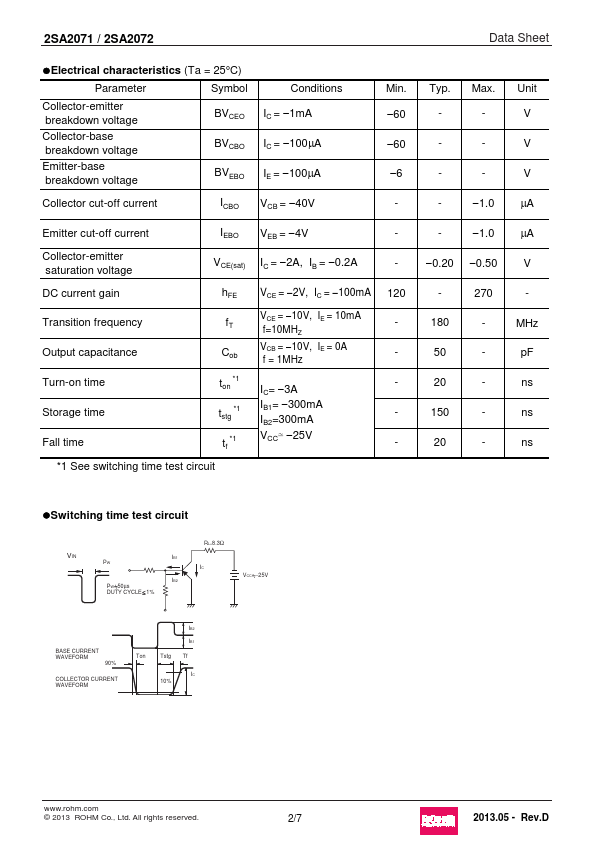

2SA2072 Transistors High voltage discharge, High speed switching, Low Noise (−60V, −3A) 2SA2072 zFeatures 1) High speed switching. ( Tf : Typ. : 20ns at IC = −3A) 2) Low saturation voltage, typically. (Typ. : −200mV at IC = −2.0A, IB = −200mA) 3) Strong discharge power for inductive load and capacitance load. 4) Low Noise. 5) Complements the 2SC5825. zExternal dimensions (Unit : mm) CPT3 (SC-63) 6.5 5.1 2.3 0.5 1.5 5.5 0.9 0.75 zApplications High speed switching, Low noise (2) Collector (3) Emitter 0.9 (1) 2.3 (2) (3) 2.3 0.8Min. 0.5 1.0 (1) Base 0.65 Abbreviated symbol : A2072 zStructure PNP silicon epitaxial planar transistor www.DataSheet4U.
