2SC4098 - High-frequency Amplifier Transistor

Key Features

  • 1) Low collector capacitance. (Cob : Typ. 1.3pF) 2) Low rbb, high gain, and excellent noise characteristics.

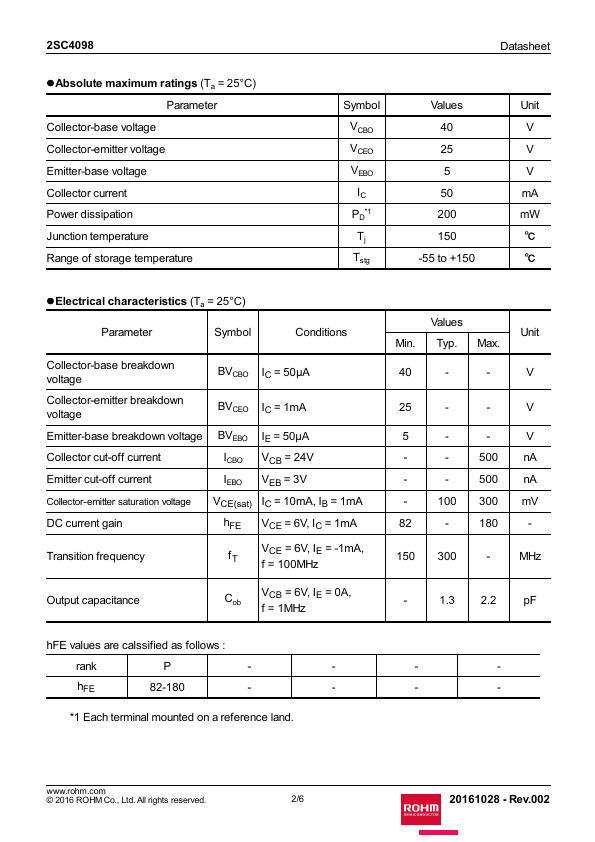

  • Absolute maximum ratings (Ta=25C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Symbol Limits Unit VCBO 40 V VCEO 25 V VEBO 5 V IC 50 mA Collector 2SC5659, 2SC4618 0.15 power PC W dissipation 2SC4098, 2SC2413K 0.2 Junction temperature Storage temperature Tj 150 ˚C Tstg.
  • 55 to +150 ˚C.
  • Pa.

📥 Download Datasheet

Datasheet Details

Part number 2SC4098
Manufacturer ROHM
File Size 98.40 KB
Description High-frequency Amplifier Transistor
Datasheet download datasheet 2SC4098 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC4098 High-frequency Amplifier Transistor Kexin
2SC4098 NPN Transistor SeCoS
2SC4098 TRANSISTOR Jin Yu Semiconductor
2SC4098 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC4092 NPN SILICON EPITAXIAL TRANSISTOR NEC

Other Datasheets by ROHM

Part Number Description
2SC4097 Medium Power Transistor
2SC4015 Chroma Amplifier Transistor
2SC4032 Silicon NPN Transistor
2SC4036 Silicon NPN Transistor
2SC4037 Silicon NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
High-frequency Amplifier Transistor (25V, 50mA, 300MHz) 2SC5659 / 2SC4618 / 2SC4098 / 2SC2413K Features 1) Low collector capacitance. (Cob : Typ. 1.3pF) 2) Low rbb, high gain, and excellent noise characteristics. Absolute maximum ratings (Ta=25C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Symbol Limits Unit VCBO 40 V VCEO 25 V VEBO 5 V IC 50 mA Collector 2SC5659, 2SC4618 0.15 power PC W dissipation 2SC4098, 2SC2413K 0.
