Transistors

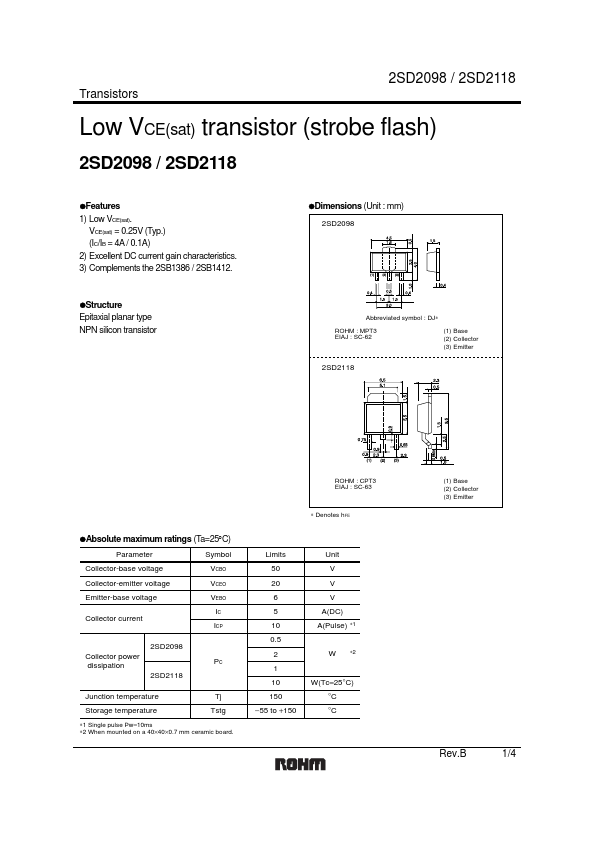

2SD2098 / 2SD2118
Low VCE(sat) transistor (strobe flash)
2SD2098 / 2SD2118 zFeatures
1) Low VCE(sat).
VCE(sat) = 0.25V (Typ.) (IC/IB = 4A / 0.1A) 2) Excellent DC current gain characteristics. 3) plements the 2SB1386 / 2SB1412. zStructure Epitaxial planar type NPN silicon transistor zDimensions (Unit : mm)
Abbreviated symbol : DJ∗
ROHM : MPT3 EIAJ : SC-62
(1) Base (2) Collector (3) Emitter
2SD2118
ROHM : CPT3 EIAJ : SC-63...
