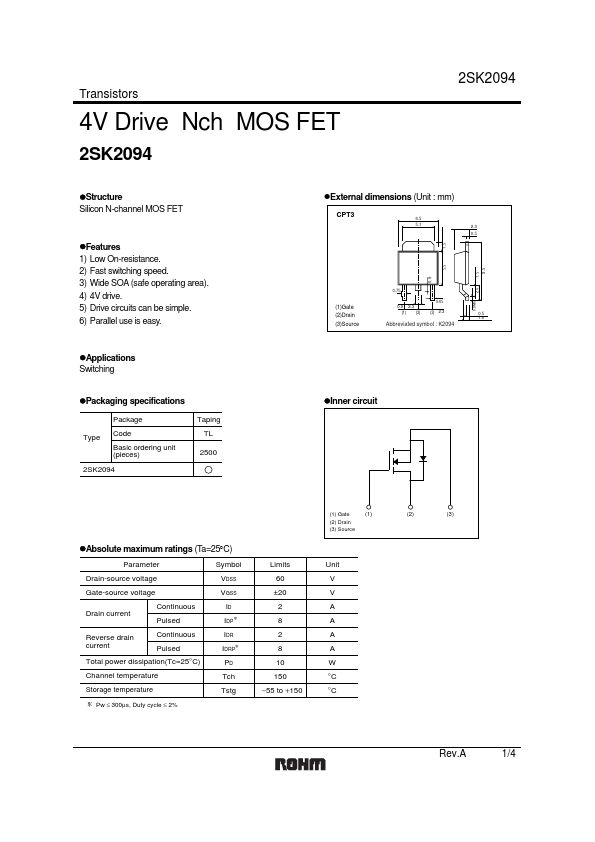

Transistors
4V Drive Nch MOS FET
2SK2094
2SK2094
1.5 9.5
zStructure Silicon N-channel MOS FET
zFeatures 1) Low On-resistance. 2) Fast switching speed. 3) Wide SOA (safe operating area). 4) 4V drive. 5) Drive circuits can be simple. 6) Parallel use is easy.
zApplications Switching
zPackaging specifications
Package
Type
Code
Basic ordering unit (pieces)
2SK2094
Taping TL
2500
zExternal dimensions (Unit : mm)
CPT3
6.5
5.1
2.3
0.5
1.5
5.5
0.9
0.8Min. 2.5
(1)Gate (2)Drain (3)Source
0.75
0.65
0.9 2.3
(1)
(2)
(3) 2.3
0.5
1.
