ROHM Semiconductor AG047FLS4FRA
Nch 60V 89A Power MOSFET
| Part No. | AG047FLS4FRA |
|---|---|
| Datasheet | AG047FLS4FRA Download |
| Manufacturer |  ROHM Semiconductor |
| Description | Nch 60V 89A Power MOSFET |
| Buy | Stock & Price |

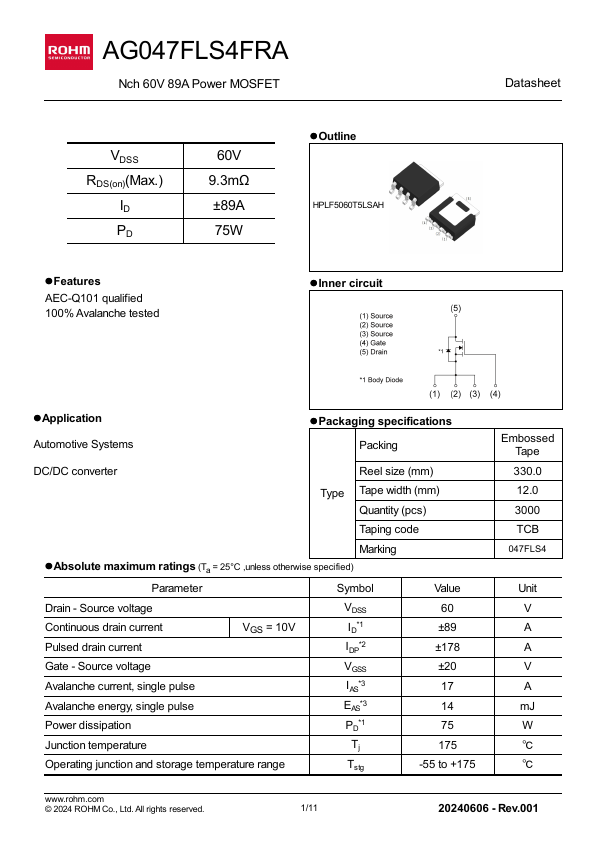

AG047FLS4FRA Nch 60V 89A Power MOSFET VDSS RDS(on)(Max.) ID PD lFeatures AEC-Q101 qualified 100% Avalanche tested 60V 9.3mΩ ±89A 75W lOutline HPLF5060T5LSAH lInner circuit Datasheet lApplication Automotive Systems lPackaging specifications Packing DC/DC converter Reel size (mm) Type Tape width (mm) Quantity (pcs) Taping code Marking lAbsolute maximum ratings (Ta = 25°C ,unless otherwise specified) Parameter Symbol Value Drain - Source voltage VDSS Continuous drain current VGS = 10V ID*1 Pulsed drain current IDP*2 Gate - Source voltage VGSS Avalanche current, single pulse IAS*3 Avalanche energy, single pulse EAS*3 Power dissipation PD*1 Junction temperature Tj Operating junction and storage temperature range Tstg 60 ±89 ±178 ±20 17 14 75 175 -55 to +175 Embossed Tape 330.0 12.0 3000 TCB 047FLS4 Unit V A A V A mJ W ℃ ℃ © 2024 ROHM Co., Ltd. All rights reserved. 1/11 20240606 - Rev.001 AG047FLS4FRA lThermal resistance Parameter Thermal resistance, junction - case Datasheet Symbol RthJC*1 Values Unit Min.
