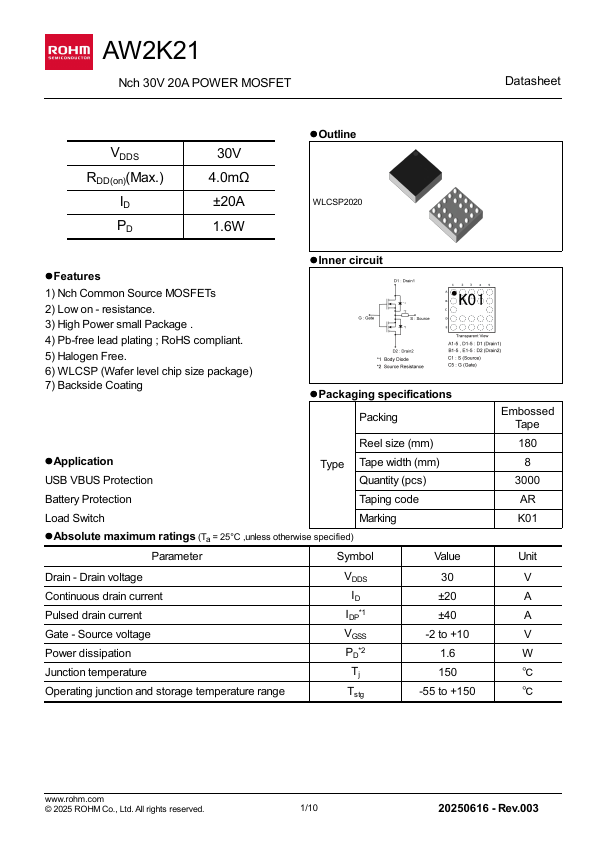

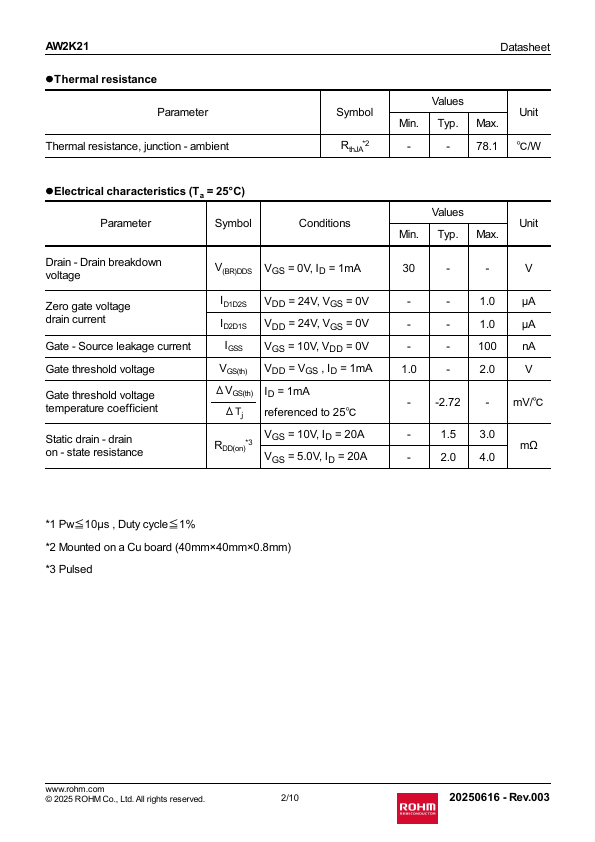

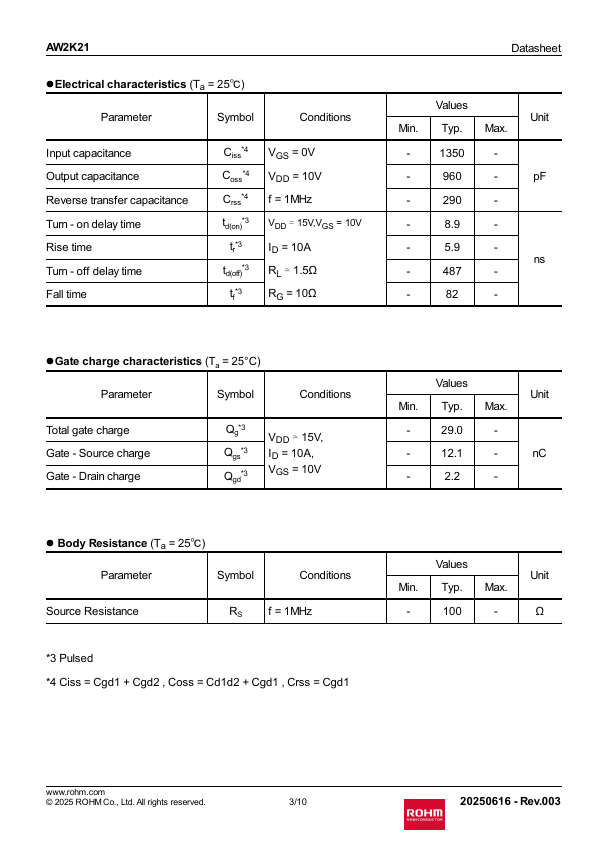

AW2K21 Nch 30V 20A POWER MOSFET Datasheet lOutline VDDS 30V RDD(on)(Max.) 4.0mΩ ID ±20A WLCSP2020 PD 1.6W lFeatures 1) Nch Common Source MOSFETs 2) Low on - resistance. 3) High Power small Package . 4) Pb-free lead plating ; RoHS compliant. 5) Halogen Free. 6) WLCSP (Wafer level chip size package) 7) Backside Coating lInner circuit lPackaging specifications Packing Embossed Tape Reel size (mm) 180 lApplication USB VBUS Protection Type Tape width (mm) Quantity (pcs) 8 3000 Battery Protection Taping code AR Load Switch Marking K01 lAbsolute maximum ratings (Ta = 25°C ,unless otherwise specified) Parameter Symbol Value Unit Drain - Drain voltage VDDS 30 V Continuous drain current ID ±20 A Pulsed drain current IDP*1 ±40 A Gate - Source voltage VGSS -2 to +10 V Power dissipation PD*2 1.6 W Junction temperature Tj 150 ℃ Operating junction and storage temperature range Tstg -55 to +150 ℃ © 2025 ROHM Co., Ltd. All rights reserved. 1/10 20250616 - Rev.003 AW2K21 lThermal resistance Parameter Thermal resistance, junction - ambient Datasheet Symbol RthJA*2 Values Unit Min.
