BA030LBSG Datasheet Super-mini Package Regulator

Manufacturer: ROHM

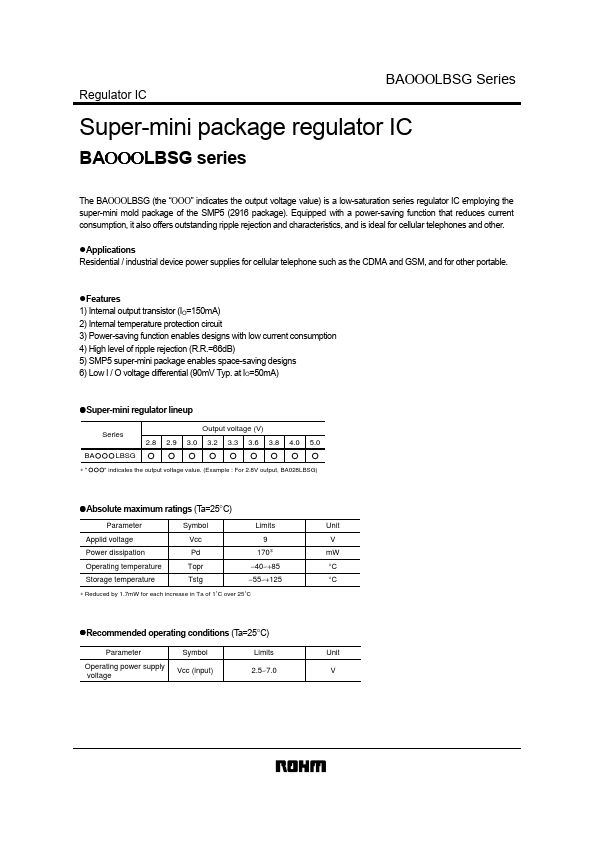

Overview: www.DataSheet4U.com Regulator IC BAΟΟΟLBSG series Super-mini package regulator IC BAΟΟΟLBSG series The BAΟΟΟLBSG (the “ΟΟΟ” indicates the output voltage value) is a low-saturation series regulator IC employing the super-mini mold package of the SMP5 (2916 package). Equipped with a power-saving function that reduces current consumption, it also offers outstanding ripple rejection and characteristics, and is ideal for cellular telephones and other. !Applications Residential / industrial device power supplies for cellular telephone such as the CDMA and GSM, and for other portable. !

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

s Pin No.

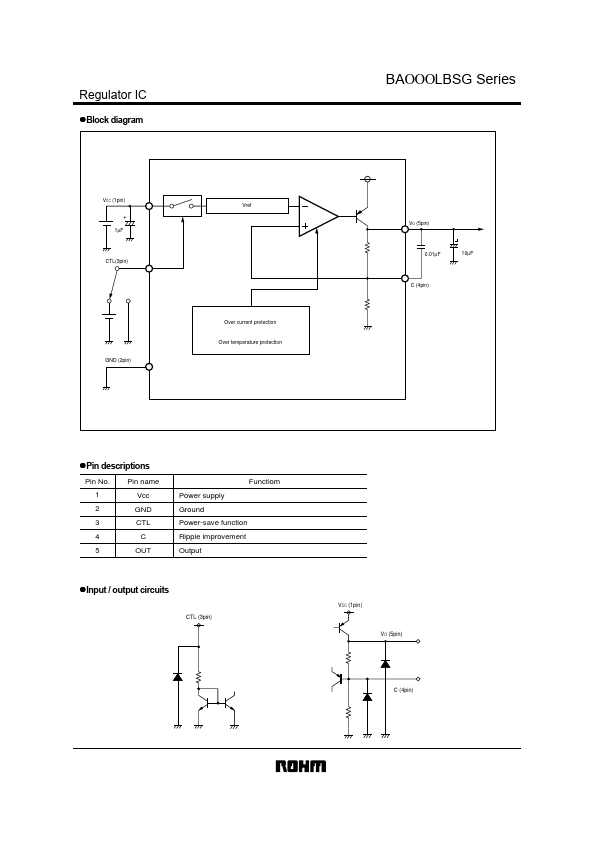

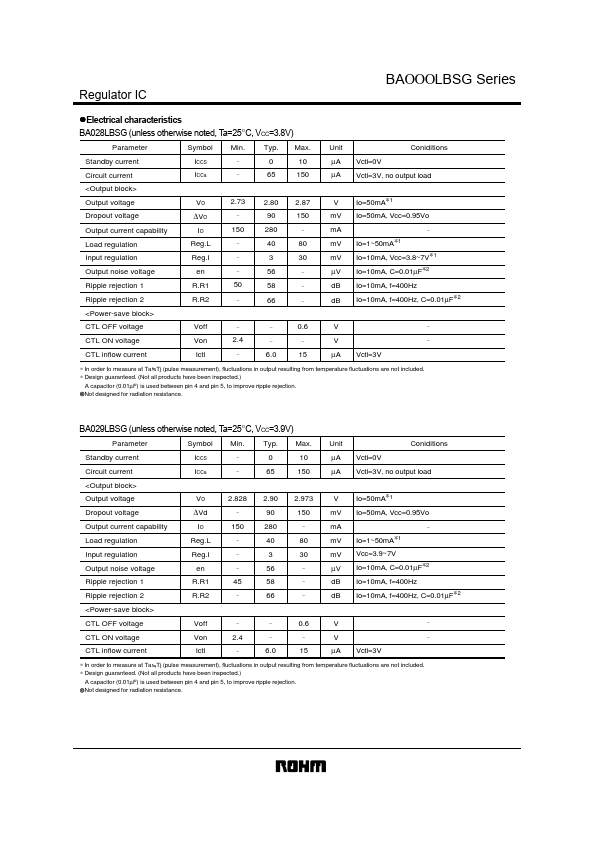

1 2 3 4 5 Pin name Vcc GND CTL C OUT Power supply Ground Power-save function Ripple improvement Output Functiom !Input / output circuits VCC (1pin) CTL (3pin) VO (5pin) C (4pin) www.DataSheet4U.com Regulator IC BAΟΟΟLBSG series !Electrical characteristics BA028LBSG (unless otherwise noted

Key Features

  • 1) Internal output transistor (IO=150mA) 2) Internal temperature protection circuit 3) Power-saving function enables designs with low current consumption 4) High level of ripple rejection (R. R. =66dB) 5) SMP5 super-mini package enables space-saving designs 6) Low I / O voltage differential (90mV Typ. at IO=50mA) !Super-mini regulator lineup Series 2.8 BA ∗" Output voltage (V) 2.9 3.0 3.2 3.3 3.6 3.8 4.0 5.0 LBSG " indicates the output voltage value. (Example : For 2.8V output, BA028LBSG) !Abs.
