BA033LBSG - Super-mini package regulator

This page provides the datasheet information for the BA033LBSG, a member of the BA050LBSG Super-mini package regulator family.

Datasheet Summary

Description

Pin No.

Features

  • 1) Internal output transistor (IO=150mA) 2) Internal temperature protection circuit 3) Power-saving function enables designs with low current consumption 4) High level of ripple rejection (R. R. =66dB) 5) SMP5 super-mini package enables space-saving designs 6) Low I / O voltage differential (90mV Typ. at IO=50mA) !Super-mini regulator lineup Series 2.8 BA ∗" Output voltage (V) 2.9 3.0 3.2 3.3 3.6 3.8 4.0 5.0 LBSG " indicates the output voltage value. (Example : For 2.8V output, BA028LBSG) !Abs.

📥 Download Datasheet

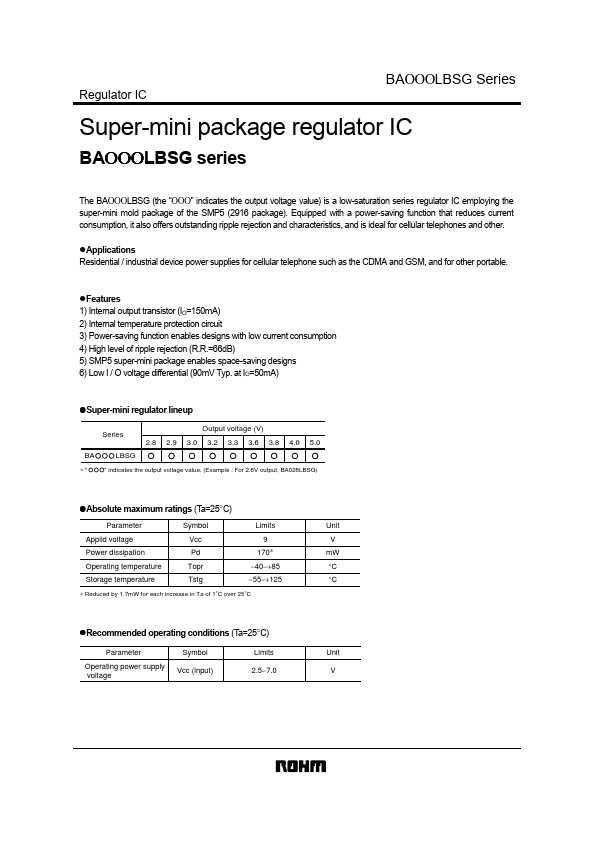

Datasheet preview – BA033LBSG

Datasheet Details

Part number BA033LBSG
Manufacturer ROHM
File Size 143.36 KB
Description Super-mini package regulator
Datasheet download datasheet BA033LBSG Datasheet
Additional preview pages of the BA033LBSG datasheet.

📁 Similar Datasheet

  • BA035HV3-800-1QPO - TFT LCD (BOE)
  • BA01202 - GaAs HBT HYBRID IC(N-CDMA hand set) (Mitsubishi Electric Semiconductor)
  • BA01203 - GaAs HBT HYBRID IC(CDMA/AMPS handheld-phone) (Mitsubishi Electric Semiconductor)
  • BA01207 - GaAs HBT HYBRID IC (Mitsubishi Electric)
  • BA01232 - GaAs RF amplifier designed (Mitsubishi Electric Semiconductor)
  • BA01303 - Triple Band(EGSM900/DCS1800/PCS1900) InGaP HBT Front-end module (Mitsubishi Electric)
  • BA070WS1-400 - TFT LCD (BOE)
  • BA091N - SMD Gas Discharge Tube (Bencent)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Regulator IC BAΟΟΟLBSG series Super-mini package regulator IC BAΟΟΟLBSG series The BAΟΟΟLBSG (the “ΟΟΟ” indicates the output voltage value) is a low-saturation series regulator IC employing the super-mini mold package of the SMP5 (2916 package). Equipped with a power-saving function that reduces current consumption, it also offers outstanding ripple rejection and characteristics, and is ideal for cellular telephones and other. !Applications Residential / industrial device power supplies for cellular telephone such as the CDMA and GSM, and for other portable. !Features 1) Internal output transistor (IO=150mA) 2) Internal temperature protection circuit 3) Power-saving function enables designs with low current consumption 4) High level of ripple rejection (R.R.
