DTA114EMHZG Datasheet PNP Digital Transistor

Manufacturer: ROHM

Overview: DTA114EM HZG PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.

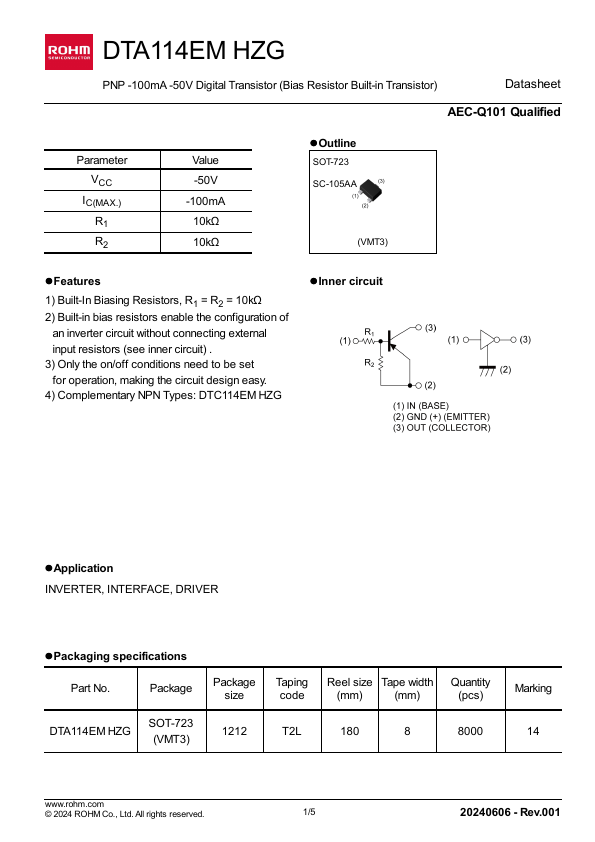

DTA114EMHZG datasheet preview

Datasheet Details

Part number	DTA114EMHZG
Manufacturer	ROHM
File Size	1.37 MB
Description	PNP Digital Transistor
Datasheet	DTA114EMHZG-Rohm.pdf

Key Features

1) Built-In Biasing Resistors, R1 = R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC114EM HZG lOutline SOT-723 　 SC-105AA 　　　　　 (VMT3) 　　　　　　　　　　　　 lInner circuit l.
