DTA124ECA - Digital transistors

Key Features

  • 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see the equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. !External dimensions (Units : mm) DTA124EE +0.1 0.2.
  • 0.05.

📥 Download Datasheet

Datasheet Details

Part number DTA124ECA
Manufacturer ROHM
File Size 79.02 KB
Description Digital transistors
Datasheet download datasheet DTA124ECA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTA124ECA PNP Digital transistors JinYu
DTA124ECA PNP Digital Transistor JCET
DTA124ECA Digital Transistor GME
DTA124ECA Digital Transistors Kexin
DTA124ECA PNP Digital Transistor WILLAS

Other Datasheets by ROHM

Part Number Description
DTA124E Digital Transistor
DTA124EE Digital transistors
DTA124EEB Digital Transistor
DTA124EEFRA PNP Digital Transistor
DTA124EKA Digital Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

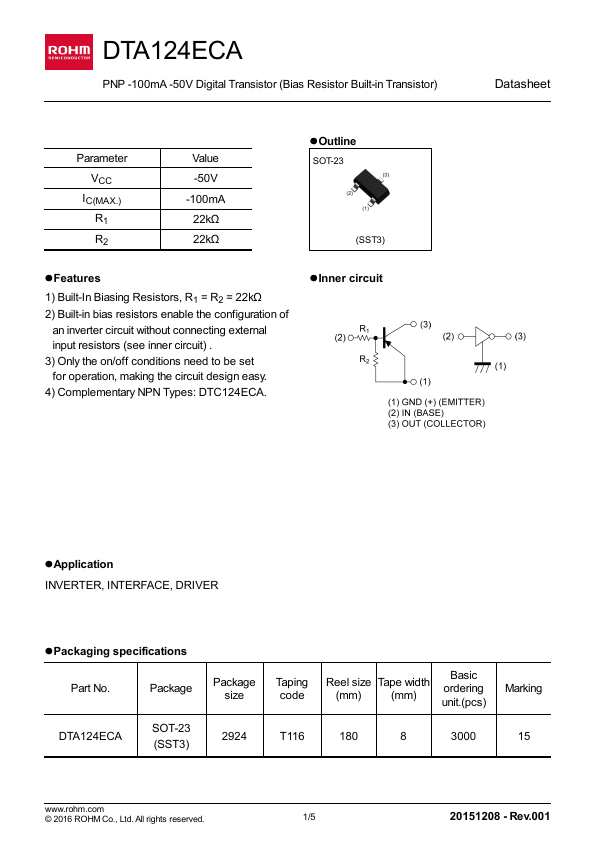

Transistor DTA124EE / DTC124EUA / DTA124EKA / DTA124ECA / DTA124ESA Digital transistors (built-in resistors) DTA124EE / DTA124EUA / DTA124EKA / DTA124ECA / DTA124ESA !Features 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see the equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. !External dimensions (Units : mm) DTA124EE +0.1 0.2−0.05 (1) (2) 1.6±0.2 1.0±0.1 0.5 0.5 0.7±0.1 +0.1 0.2− 0.05 0.8±0.1 1.6±0.2 0.55±0.1 0~0.1 (3) ROHM : EMT3 +0.1 0.3 − 0.05 0.
