DTA144ECA Datasheet | ROHM

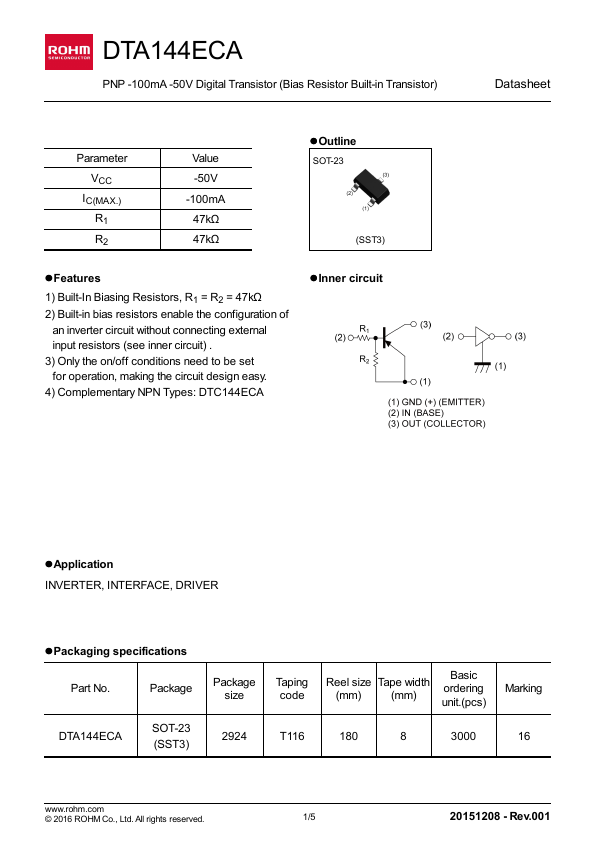

PNP -100m A -50V Digital Transistor (Bias Resistor Built-in Transistor) Parameter VCC IC(MAX.) R1 R2 Value -50V -100m A 47kΩ 47kΩ l Features 1) Built-In Biasing Resistors, R1 = R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) plementary NPN Types: DTC144ECA l Outline SOT-23 　 　 　 　 　 　 (SST3) 　 　 　 　 　　　　　　　　 l Inner circuit Datasheet l Application INVERTER, INTERFACE, DRIVER l Packaging specifications Part No. Package SOT-23 (SST3) Package size 　　　　　　　　　　　　　　　　　　　　　　 Taping code Reel size Tape width (mm) (mm) Basic ordering unit.(pcs) Marking T116 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　 .rohm. © 2016 ROHM Co., Ltd. All rights reserved. 1/5 - Rev.001 　 l Absolute maximum ratings (Ta = 25°C) Parameter Supply voltage Input voltage Output current Collector current Power...
