DTA144TM - -100mA / -50V Digital transistors

Key Features

  • s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy.
  • Structure PNP epitaxial planar silicon transistor (Resist.

📥 Download Datasheet

Datasheet Details

Part number DTA144TM
Manufacturer ROHM
File Size 134.96 KB
Description -100mA / -50V Digital transistors
Datasheet download datasheet DTA144TM Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTA144TM PNP Digital Transistor JCST
DTA144TM PNP Small Signal Transistor Taiwan Semiconductor
DTA144TM3 Digital Transistors ON Semiconductor
DTA144T PNP DIGITAL TRANSISTOR UTC
DTA144TCA PNP Digital Transistor LGE

Other Datasheets by ROHM

Part Number Description
DTA144TMFHA PNP Digital Transistor
DTA144TCA PNP Digital transistors
DTA144TE -100mA / -50V Digital transistors
DTA144TEFRA PNP Digital Transistor
DTA144TKA -100mA / -50V Digital transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

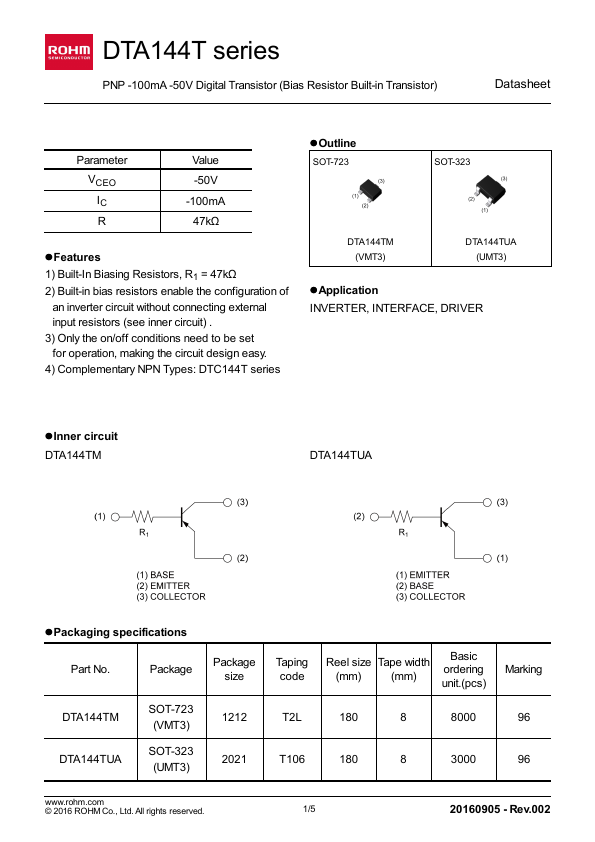

-100mA / -50V Digital transistors (with built-in resistor) DTA144TM / DTA144TE / DTA144TUA / DTA144TKA  Applications Inverter, Interface, Driver  Features 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy.  Structure PNP epitaxial planar silicon transistor (Resistor built-in type)  Dimensions (Unit : mm) DTA144TM 1.2 0.32 (3) 0.2 0.8 0.2 1.2 ROHM : VMT3 0.22 (1)(2) 0.4 0.4 0.8 0.13 0.
