EMG3 - dual digital transistors

Product Overview

Rohm

Part number	EMG3
Manufacturer	ROHM
File Size	67.60 KB
Description	dual digital transistors
Datasheet	EMG3 Datasheet

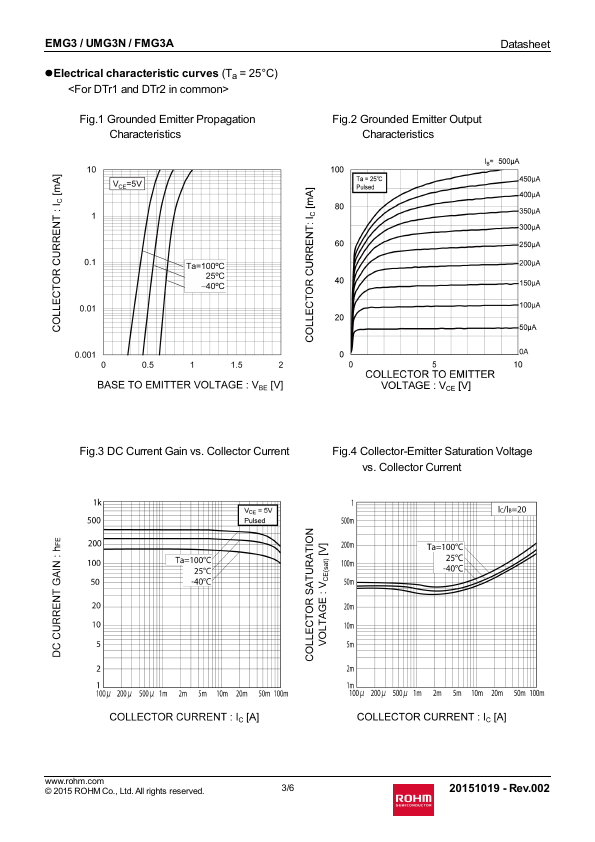

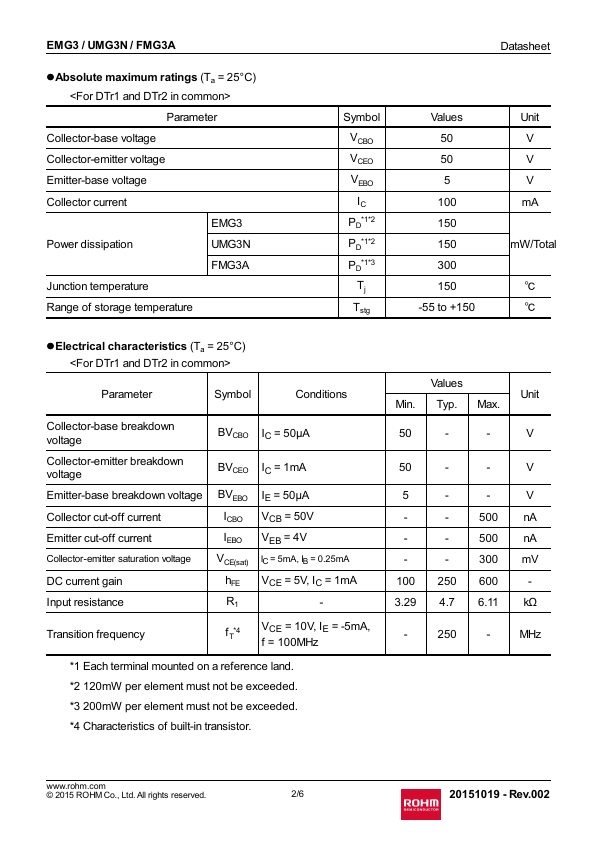

Additional preview pages of the EMG3 datasheet.

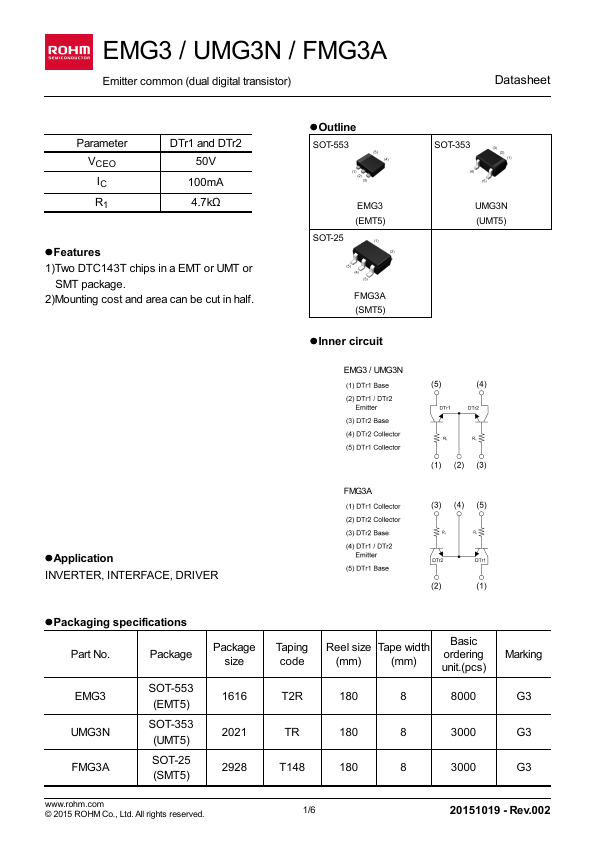

1) Two DTC143T chips in a EMT or UMT or SMT package. 2) Mounting cost and area can be cut in half. zExternal dimensions (Unit : mm) EMG3 0.5 0.5 1.0 1.6 0.22 (4) (3) (2) (5) zStructure Dual NPN digital transistor (each with a single built in resistors) ROHM : EMT5 0.13 1.2 1.6 (1) Each lead has same dimensions Abbreviated symbol : G3 (4) (3) The following characteristics apply to both the DTr1 and DTr2. UMG3N 0.65 0.65 1.3 0.2 2.0 (2) (5) zEquivalent circuit 0.15 1.25 2.1 (1).
