ROHM Semiconductor EMH1
NPN 100mA 50V Complex Digital Transistors
| Part No. | EMH1 |
|---|---|
| Datasheet | EMH1 Download |
| Manufacturer |  ROHM Semiconductor |
| Description | NPN 100mA 50V Complex Digital Transistors |
| Buy | Stock & Price |
FEATURES

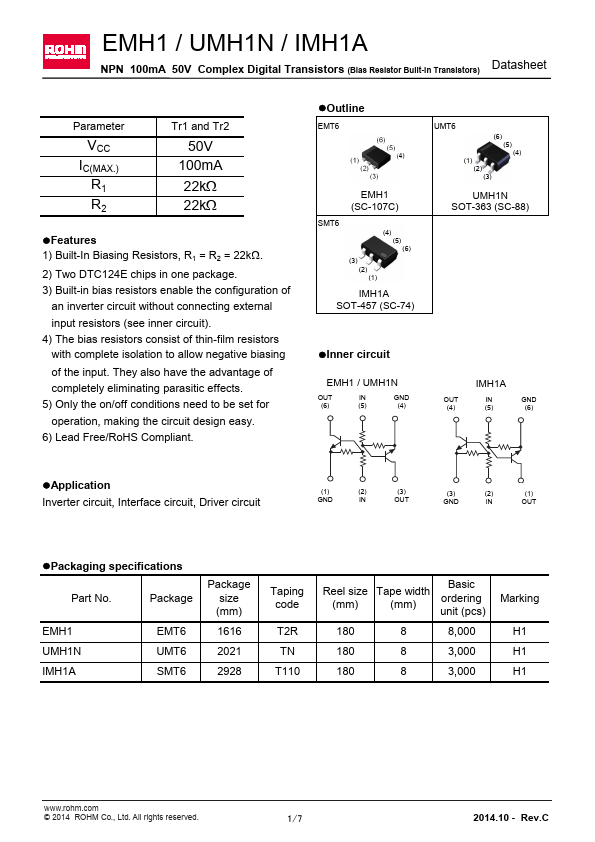

1) Built-In Biasing Resistors, R1 = R2 = 22k. 2) Two DTC124E chips in one package. 3) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 4) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. 5) Only the on/off conditions need to be set for operation, making the circuit design easy. 6) Lead Free/RoHS Compliant.●Outline EMT6 (6) (5) (1) (4) (2) (3) EMH1 (SC-107C) SMT6 (4) (5) (6) (3) (2) (1) IMH1A SOT-457 (SC-74) UMT6 (6) (5) (4) (1) (2) (3) UMH1N SOT-363 (SC-88)
●Inner circuit EMH1 / UMH1N OUT IN (6) (5) GND (4) IMH1A OUT IN (4) (5) GND (6)
●Application Inverter circuit, Interface circuit, Driver circuit (1) (2) GND IN (3) OUT (3) (2) GND IN (1) OUT

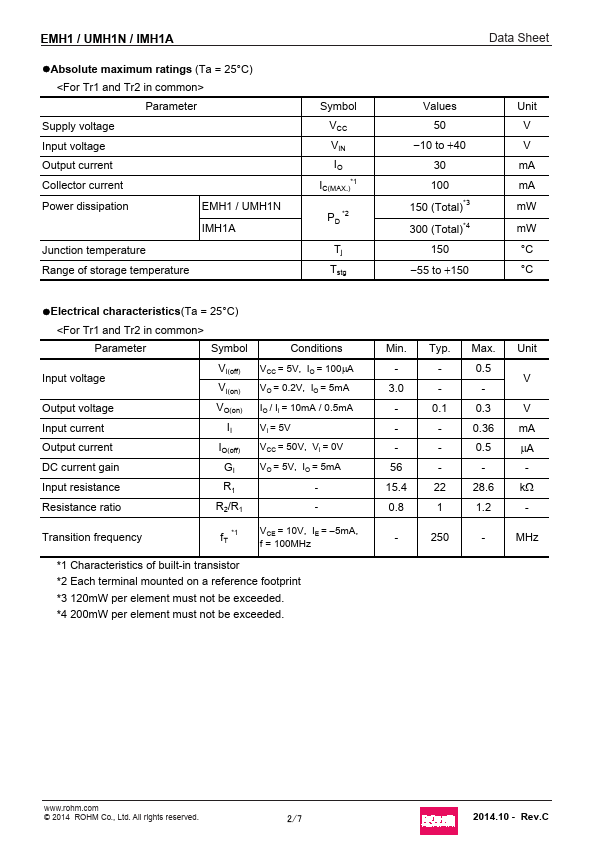

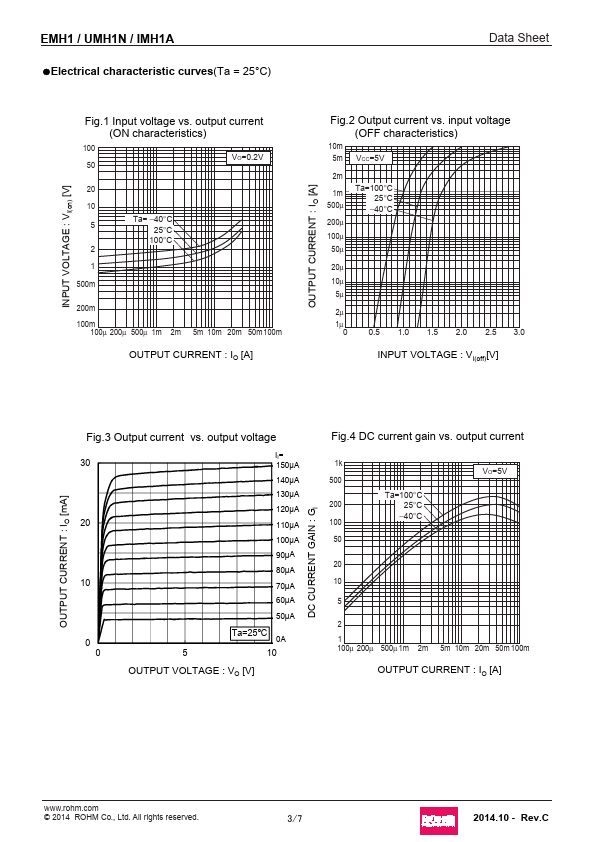

●Packaging specifications Part No. Package EMH1 UMH1N IMH1A EMT6 UMT6 SMT6 Package size (mm) 1616 2021 2928 T...
