ROHM Semiconductor EMY1
Dual Transistor
| Part No. | EMY1 |
|---|---|
| Datasheet | EMY1 Download |
| Manufacturer |  ROHM Semiconductor |
| Description | Dual Transistor |
| Buy | Stock & Price |

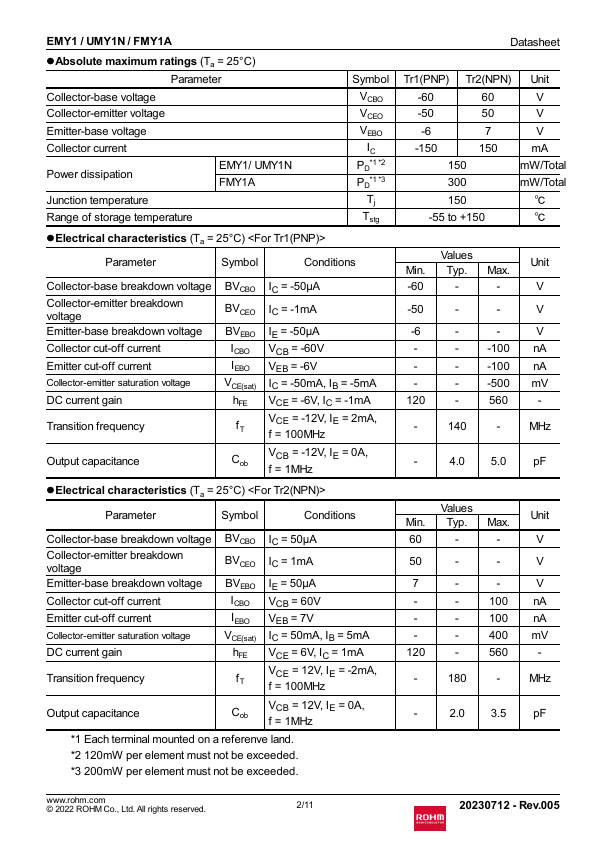

EMY1 / UMY1N / FMY1A Emitter common (dual transistors) Datasheet <For Tr1(PNP)> Parameter VCEO IC <For Tr2(NPN)> Parameter VCEO IC Value -50V -150mA Value 50V 150mA lOutline SOT-553 SOT-353 EMY1 (EMT5) SOT-25 UMY1N (UMT5) FMY1A (SMT5) lFeatures 1) Included a 2SA1037AK and a 2SC2412K transistor in a EMT, UMT or SMT package. 2)Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines. 3) PNP and NPN transistors have common emitters. 4) Mounting cost and area can be cut in half. lInner circuit EMY1 / UMY1N FMY1A lApplication GENERAL PURPOSE SMALL SIGNAL AMPLIFIER lPackaging specifications Part No. Package EMY1 UMY1N FMY1A SOT-553 (EMT5) SOT-353 (UMT5) SOT-25 (SMT5) Package size 1616 2021 2928 Taping Reel size Tape width Quantity code (mm) (mm) (pcs) T2R 180 8 8000 TR 180 8 3000 T148 180 8 3000 Marking Y1 Y1 Y1 © 2022 ROHM Co., Ltd. All rights reserved. 1/11 20230712 - Rev.005 EMY1 / UMY1N / FMY1A lAbsolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collecto...
