MCR25 - Thick Film Chip Resistors

Download the MCR25 datasheet PDF. This datasheet also covers the MCR004 variant, as both devices belong to the same thick film chip resistors family and are provided as variant models within a single manufacturer datasheet.

General Description

① Part No.

Key Features

  • 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004).
  • Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QL.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MCR004_Rohm.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MCR25
Manufacturer ROHM
File Size 1.05 MB
Description Thick Film Chip Resistors
Datasheet download datasheet MCR25 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCR25 Silicon Controlled Rectifiers Motorola
MCR25D SCR HAOPIN MICROELECTRONICS
MCR25D SILICON CONTROLLED RECTIFIERS Digitron Semiconductors
MCR25D Silicon Controlled Rectifiers Motorola
MCR25D Silicon Controlled Rectifiers ON Semiconductor

Other Datasheets by ROHM

Part Number Description
MCR25L General Purpose Chip Resistors
MCR004 Thick Film Chip Resistors
MCR004E General purpose chip resistors
MCR006 Thick film chip resistors
MCR01 Thick Film Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

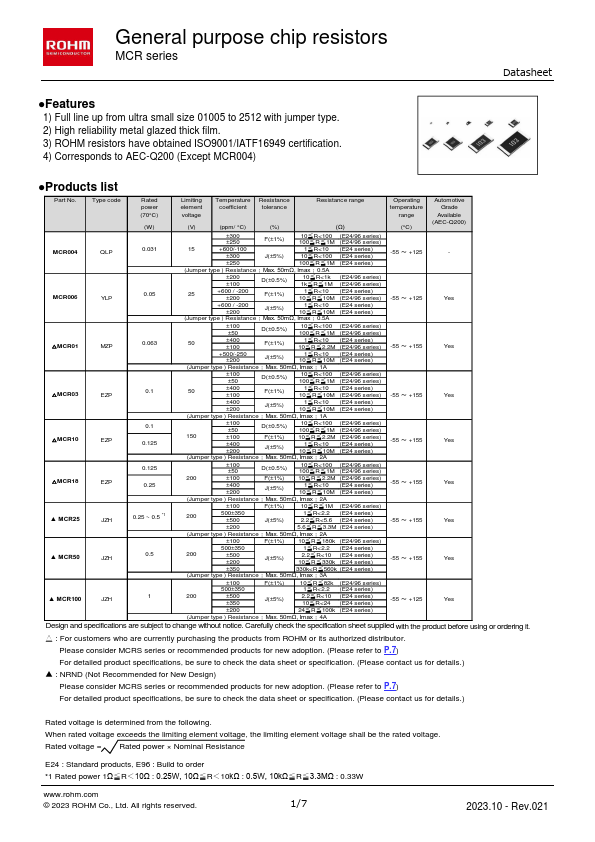

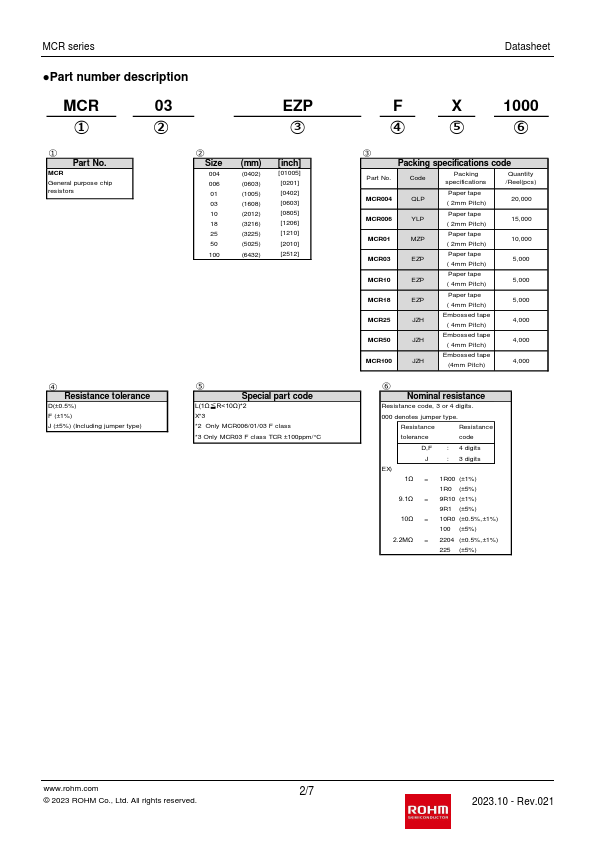

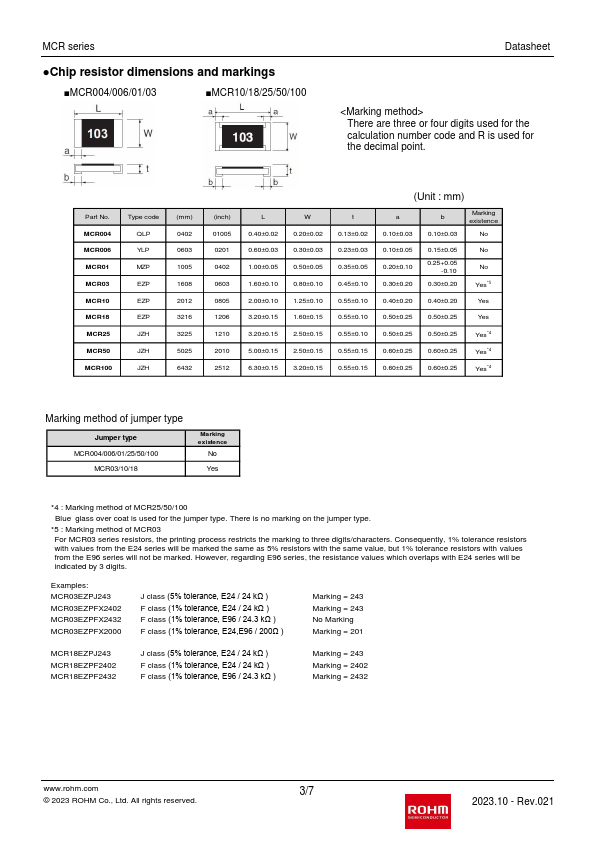

General purpose chip resistors MCR series Datasheet ●Features 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004) ●Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QLP 0.031 ±300 ±250 F(±1%) 10≦R<100 (E24/96 series) 100≦R≦1M (E24/96 series) 15 +600/-100 ±300 J(±5%) 1≦R<10 (E24 series) 10≦R<100 (E24 series) -55 ～ +125 - ±250 100≦R≦1M (E24 series) (Jumper type ) Resistance ： Max.
