RB060MM-30 - Schottky Barrier Diode

Datasheet Summary

Features

  • 1) Small power mold type (PMDU) 2) High reliability 3) Low VF 0.9±0.1 0.12 3.5±0.2 2.6±0.1 PMDU lStructure 0.8±0.1 Cathode ROHM : PMDU JEDEC : SOD-123FL : Manufacture Date lConstruction Silicon epitaxial planar type lTaping Dimensions (Unit : mm) 4.0±0.1 2.0±0.05 φ 1.55±0.05 f1.55 0.05 1.75±0.1 Anode 0.25±0.05 3.5±0.05 8.0±0.2 1.81±0.1 4.0±0.1 φ1.0 1.0±0.1 f 0.1 3.71±0.1 1.5MAX lAbsolute Maximum Ratings (Tc= 25°C) Parameter Repetitive Peak Reverse Voltage Reverse Voltage Avera.

📥 Download Datasheet

Datasheet preview – RB060MM-30

Datasheet Details

Part number RB060MM-30
Manufacturer ROHM
File Size 494.92 KB
Description Schottky Barrier Diode
Datasheet download datasheet RB060MM-30 Datasheet
Additional preview pages of the RB060MM-30 datasheet.

📁 Similar Datasheet

  • RB0807 - Radial Bobbin Inductors (Allied Components International)
Other Datasheets by Rohm

Full PDF Text Transcription

▶ Click to expand full text

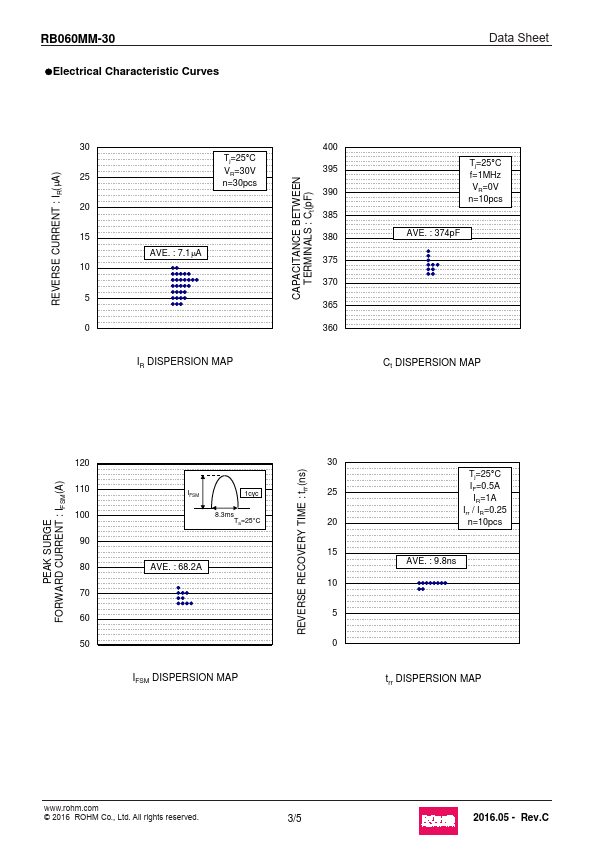

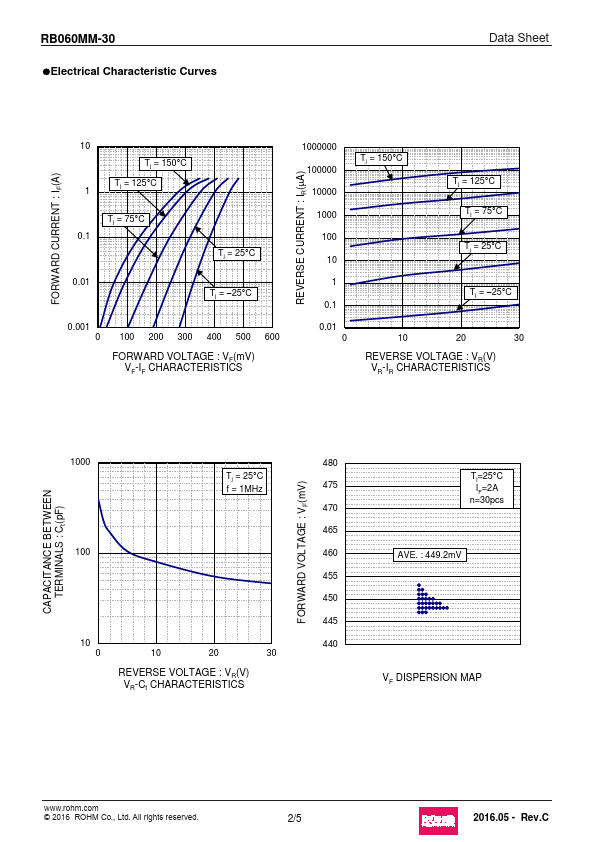

Schottky Barrier Diode RB060MM-30 lApplication General rectification lDimensions (Unit : mm) 1.6±0.1 0.1±0.1 　　　 0.05 Data Sheet lLand Size Figure (Unit : mm) 1.2 0.85 lFeatures 1) Small power mold type (PMDU) 2) High reliability 3) Low VF 0.9±0.1 0.12 3.5±0.2 2.6±0.1 PMDU lStructure 0.8±0.1 Cathode ROHM : PMDU JEDEC : SOD-123FL : Manufacture Date lConstruction Silicon epitaxial planar type lTaping Dimensions (Unit : mm) 4.0±0.1 2.0±0.05 φ 1.55±0.05 f1.55 0.05 1.75±0.1 Anode 0.25±0.
