RB400D - Schottky barrier diode

Datasheet Summary

Features

  • ) Small mold type. (SMD3) 2) Low IR 3) High reliability.
  • Construction Silicon epitaxial planer 2.9±0.2 0.4　＋－00..105 Each lead has same dimension (3) ＋0.1 0. 15 －0 .06 0.95 2.8±0.2 1 .6－＋00 . .12 (2) 0.95 0.95 1.9±0.2 (1) 0.8MIN. 0～0.1 SMD3 0 .8 ±0 .1 1. 1± 0. 2 0. 01 .
  • Structure ROHM : SMD3 JEDEC :S0T-346 JEITA : SC-59 week code.
  • Taping specifications (Unit : mm) 4.0±0 .1 2.0±0.05 φ1 .5± 0.1 　　　　　 0 0.3±0.1 1.75±0.1 3.2±0.1 5.5±0.2 3.5±0.05 8.0±0.2 3.2±0.1.

📥 Download Datasheet

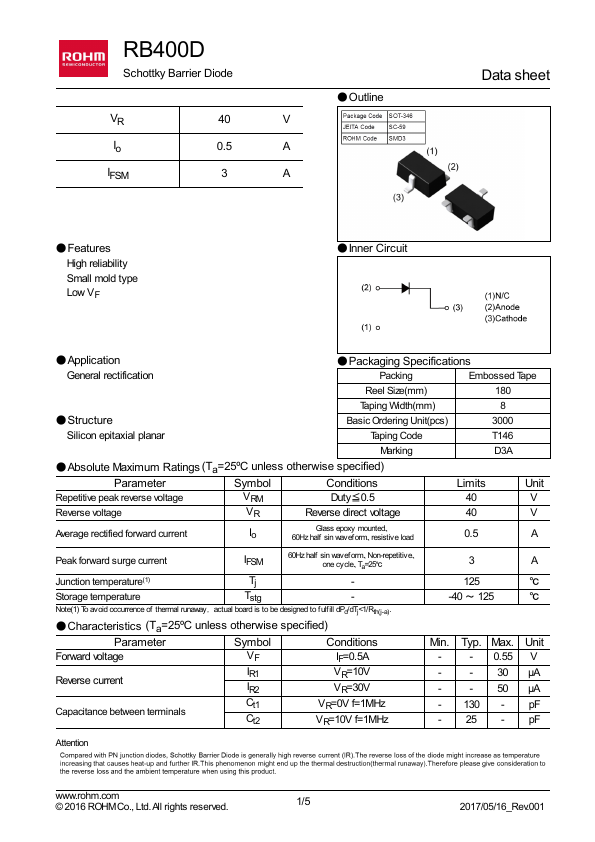

Datasheet preview – RB400D

Datasheet Details

Part number RB400D
Manufacturer ROHM
File Size 342.58 KB
Description Schottky barrier diode
Datasheet download datasheet RB400D Datasheet

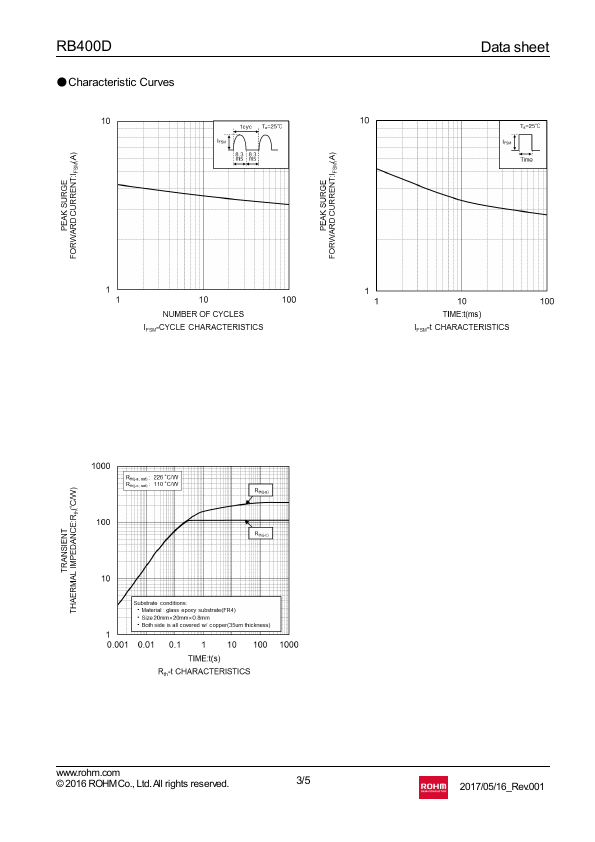

Additional preview pages of the RB400D datasheet.
