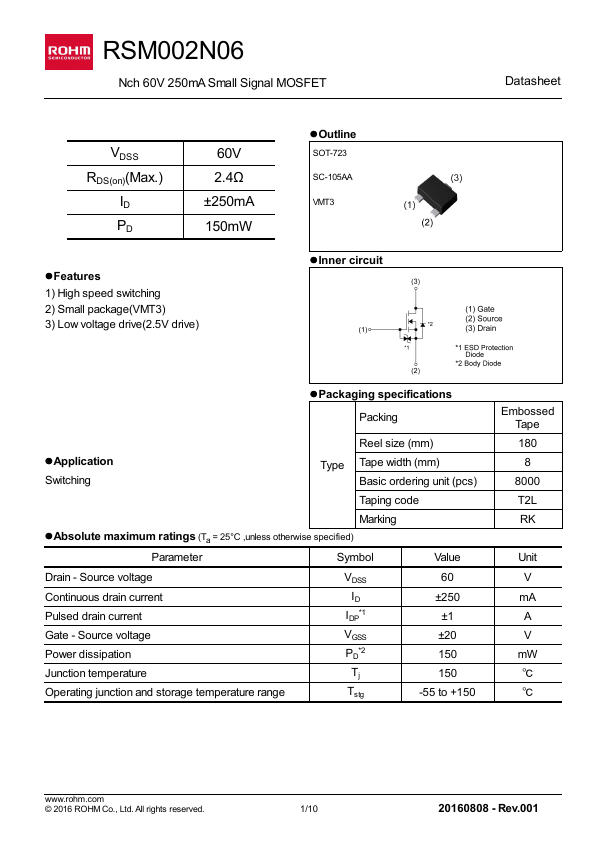

RSM002N06 - Nch 60V 250mA Small Signal MOSFET

ROHM

Key Features

1) High speed switching 2) Small package(VMT3) 3) Low voltage drive(2.5V drive) lOutline SOT-723 SC-105AA VMT3 　　　　　　　 lInner circuit 　　 Datasheet 　 lPackaging specifications Packing Embossed Tape Reel size (mm) 180 l.

RSM002N06 nch 60v 250ma small signal mosfet by ROHM - Datasheet Preview

Datasheet Details

Part number	RSM002N06
Manufacturer	ROHM
File Size	1.37 MB
Description	Nch 60V 250mA Small Signal MOSFET
Datasheet	RSM002N06 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
RSM12C	Compact Non-contact angle sensor	TOCOS
RSM1xxx	(RS Series) Metal Oxide Resistors	Stackpole Electronics
RSM200S	SURFACE MOUNT TUNING FORK CRYSTAL UNIT	Raltron Electronics
RSM2222	(RS Series) Metal Oxide Resistors	Stackpole Electronics
RSM2258	RSM2258	Risong

Other Datasheets by ROHM

Part Number	Description
RSM002P03	4V Drive Pch MOS FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

RSM002N06 　　Nch 60V 250mA Small Signal MOSFET VDSS RDS(on)(Max.) ID PD 60V 2.4Ω ±250mA 150mW lFeatures 1) High speed switching 2) Small package(VMT3) 3) Low voltage drive(2.
