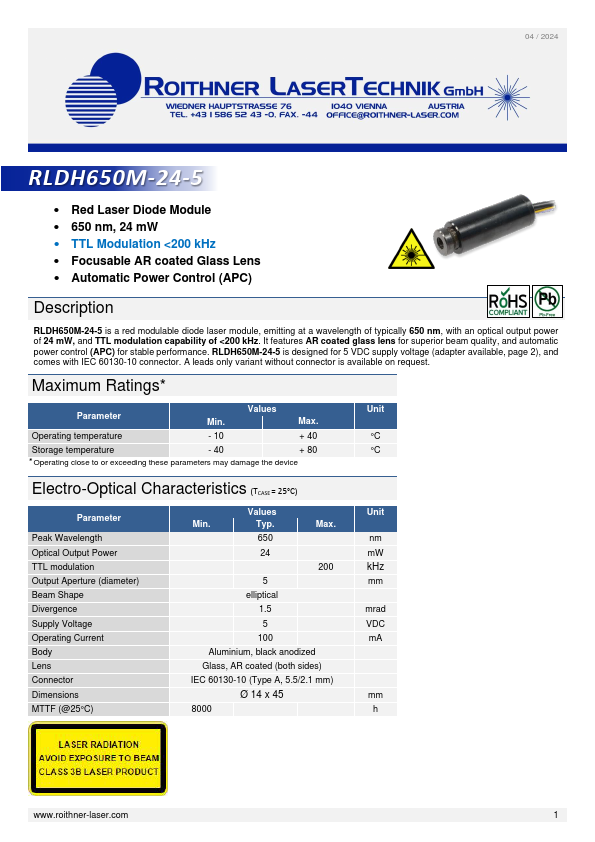

RLDH650M-24-5
Description
RLDH650M-24-5 is a red modulable diode laser module, emitting at a wavelength of typically 650 nm, with an optical output power of 24 mW, and TTL modulation capability of <200 kHz. It features AR coated glass lens for superior beam quality, and automatic power control (APC) for stable performance.
Key Features
- AR coated glass lens for superior beam quality, and automatic power control (APC) for stable performance

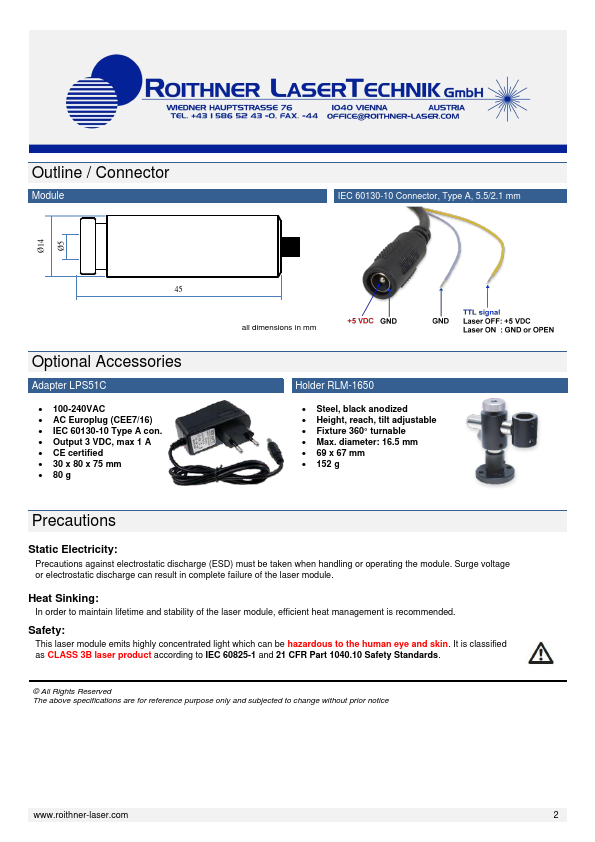

- RLDH650M-24-5 is designed for 5 VDC supply voltage (adapter available, page 2), and es with IEC 60130-10 connector
- A leads only variant without connector is available on request
