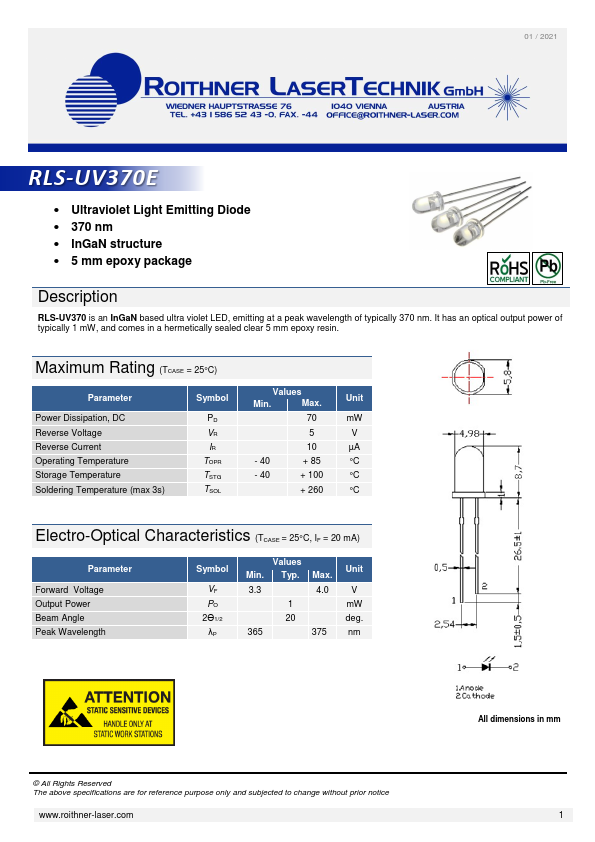

RLS-UV370E
RLS-UV370E is ultra violet LED manufactured by Roithner.
Description
RLS-UV370 is an In Ga N based ultra violet LED, emitting at a peak wavelength of typically 370 nm. It has an optical output power of typically 1 m W, and es in a hermetically sealed clear 5 mm epoxy resin.
Maximum Rating (TCASE = 25°C)
Parameter
Power Dissipation, DC Reverse Voltage Reverse Current Operating Temperature Storage Temperature Soldering Temperature (max 3s)
Symbol
PD VR IR TOPR TSTG TSOL
Values
Min.
Max.
Unit
70 m W
µA
- 40
+ 85
°C
- 40
+ 100
°C
+ 260
°C
Electro-Optical Characteristics (TCASE = 25°C, IF = 20 m A)
Parameter
Forward Voltage Output Power Beam Angle Peak Wavelength
Symbol
VF PO 2Ө1/2 λP
Values Unit
Min. Typ. Max.
4.0 V
1 m W
20 deg.
375 nm
© All Rights Reserved The above specifications are for reference purpose only and subjected to change without prior notice
.roithner-laser.
All dimensions in mm...
