MS1022 - High-Precision Time-to-Digital Converter

Description

The MS1022 is high-precision time measurement circuit, which integrates analog comparator, analog switch and schmitt trigger and so on, thus greatly simplifying peripherals.

In addition, the first wave detection function makes the MS1022 improve the anti-interference ability.

Features

  • Measurement Range 1:.
  • Dual-Channel, Single-Precision Mode 90ps.
  • Single-Channel, Dual-Precision Mode 45ps.
  • Measurement Range 3.5ns(0ns) to 2.4μs.
  • 20ns Minimum Pulse Interval, Receive Four Pulses at most Measurement Range 2:.
  • Single-Channel, Single-Precision Mode 90ps.
  • Dual-Precision Mode 45ps, Quad-Precision Mode 22ps.
  • Measurement Range 500ns to 4ms (at 4M high-speed clock).
  • Can Measure Three Pulses, Process Three Data Automatically Analog Input Circuit:.

📥 Download Datasheet

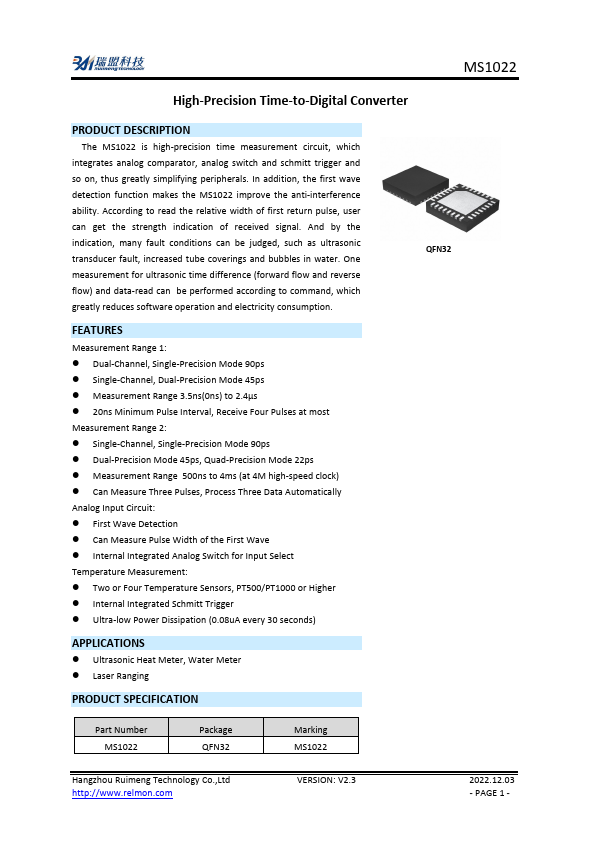

Datasheet preview – MS1022

Datasheet Details

Part number MS1022
Manufacturer Ruimeng
File Size 2.49 MB
Description High-Precision Time-to-Digital Converter
Datasheet download datasheet MS1022 Datasheet

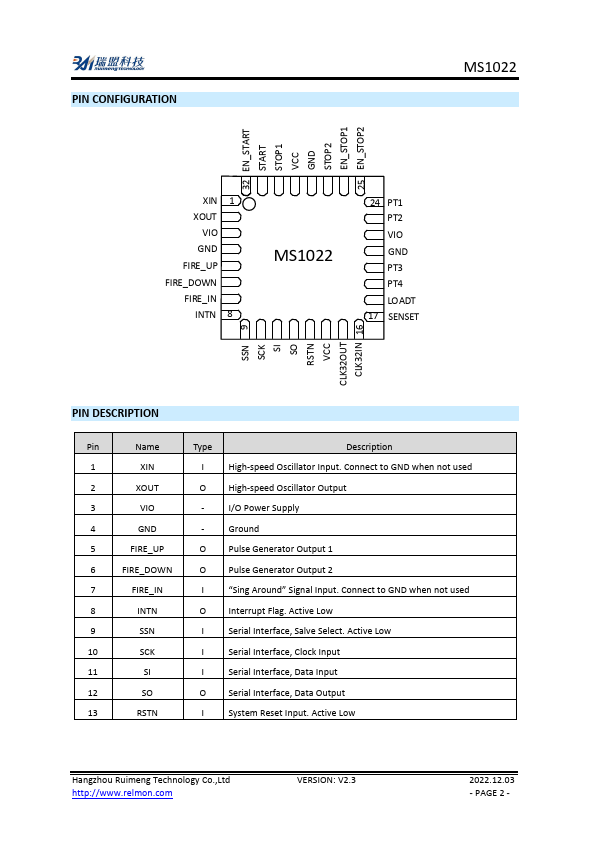

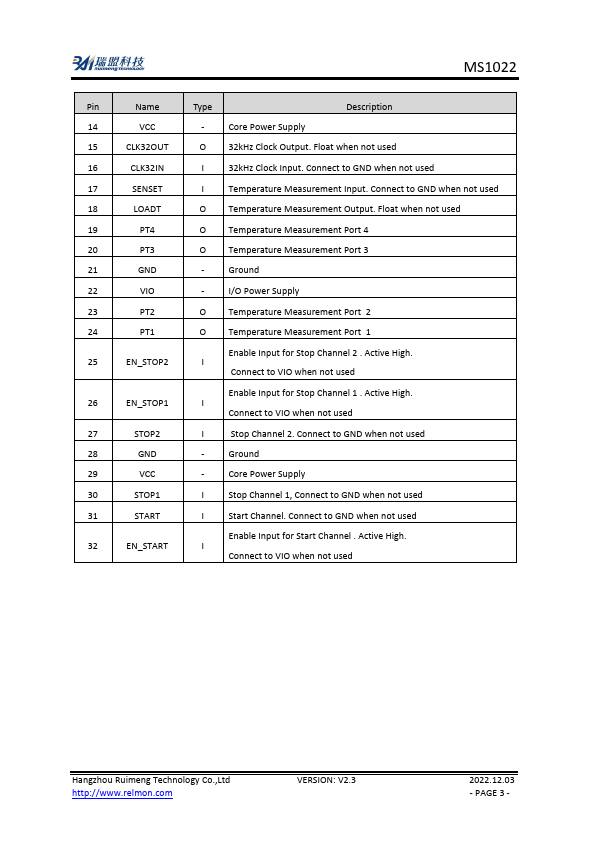

Additional preview pages of the MS1022 datasheet.

📁 Similar Datasheet

  • MS1022-CT1 - PNP RF Amplifier Transistor Surface Mount (Leshan Radio Company)
  • MS10232NL - 10/100BASE TRANSFORMER (Mnova)
  • MS1000 - RF & MICROWAVE TRANSISTORS (Advanced Power Technology)
  • MS1000 - Single axis analog accelerometer (SAFRAN)
  • MS1000L - Single axis analog accelerometer (SAFRAN)
  • MS1000T - Single axis analog accelerometer (SAFRAN)
  • MS1001 - RF & MICROWAVE TRANSISTORS (Advanced Power Technology)
  • MS1003 - 10 AMP SCHOTTKY BARRIER RECTIFIERS (Microsemi Corporation)
  • MS1003 - RF & MICROWAVE TRANSISTORS (Advanced Power Technology)
  • MS1003SH - Quasi-Resonant Power Supply (Shindengen)
Other Datasheets by Ruimeng
  • MS1050NA - Four-channel time-to-digital converter
  • MS1100 - 16-Bit ADC
  • MS1112 - 16-bit multi-input built-in reference analog-to-digital converter
  • MS1242 - 24bit High Precision Low Power Dissipation ADC
  • MS1243 - 24bit High Precision Low Power Dissipation ADC
  • MS1585 - RS-485 transceiver
  • MS1585D - RS-485 transceiver
  • MS1585M - RS-485 transceiver

Full PDF Text Transcription

Click to expand full text
MS1022 High-Precision Time-to-Digital Converter PRODUCT DESCRIPTION The MS1022 is high-precision time measurement circuit, which integrates analog comparator, analog switch and schmitt trigger and so on, thus greatly simplifying peripherals. In addition, the first wave detection function makes the MS1022 improve the anti-interference ability. According to read the relative width of first return pulse, user can get the strength indication of received signal. And by the indication, many fault conditions can be judged, such as ultrasonic transducer fault, increased tube coverings and bubbles in water.
