MS1100 - 16-Bit ADC

Datasheet Summary

Description

The MS1100 is a precision, continuously self-calibrating ADC up to 16 bits resolution.

The on-board reference provides a differential input range of ±2.048V.

The MS1100 uses an I2C serial interface.

Features

  • I2C Serial Interface.
  • On-board Reference: Accuracy: 2.048V ±0.5% ; Drift:10ppm/°C.
  • On-board PGA and OSC.
  • 16 bits Resolution.
  • INL: 0.01% of FSR Max.
  • I2C Address Number:8.
  • Programmable Data Rate: 15SPS to 240SPS.
  • Power Supply: 2.7V to 5.5V.
  • Low Current Consumption: 315μA.

📥 Download Datasheet

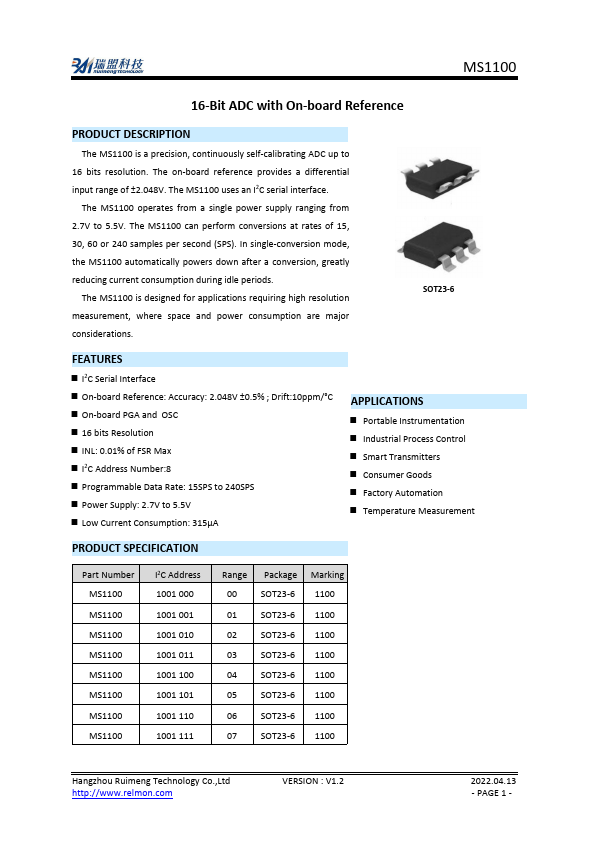

Datasheet preview – MS1100

Datasheet Details

Part number MS1100
Manufacturer Ruimeng
File Size 1.04 MB
Description 16-Bit ADC
Datasheet download datasheet MS1100 Datasheet

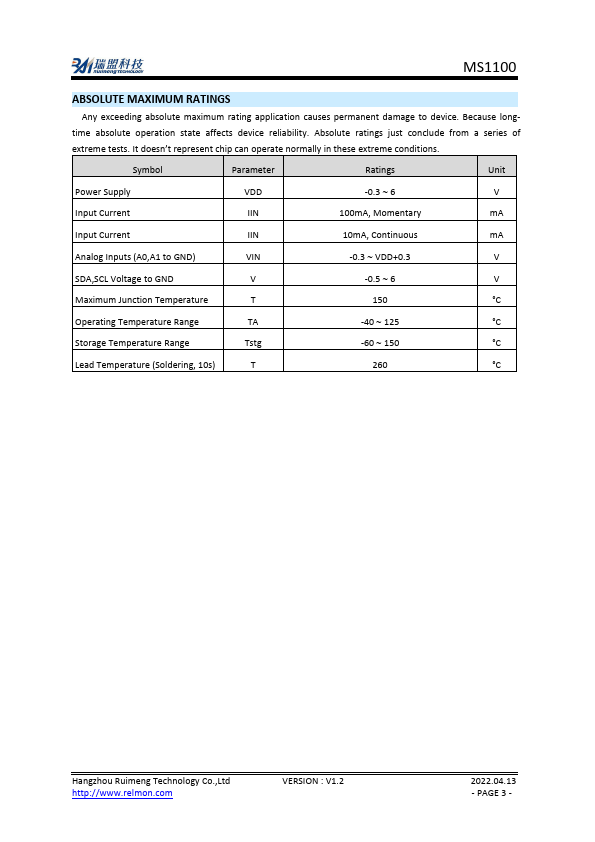

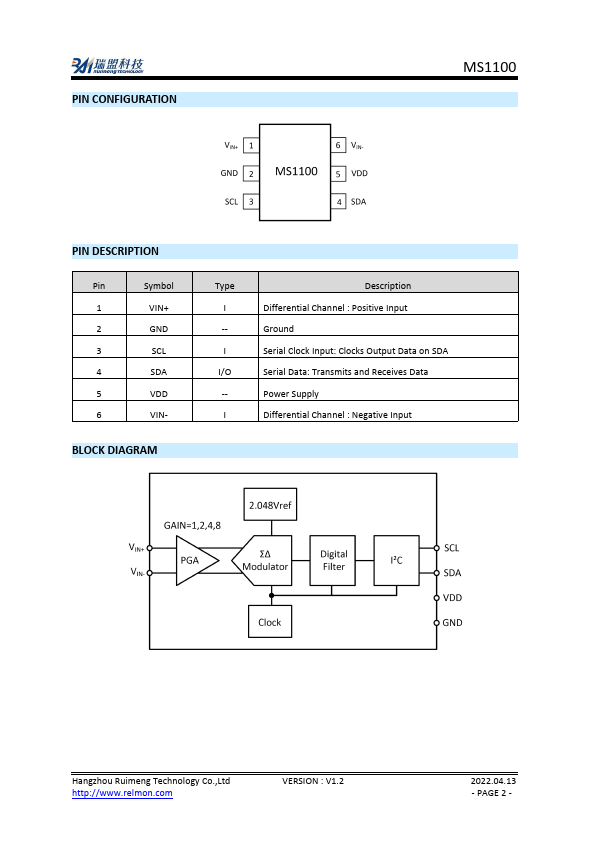

Additional preview pages of the MS1100 datasheet.

📁 Similar Datasheet

  • MS1100 - VOC Monitor (multisensor)
  • MS1100 - VOCs Sensor (ETC)
  • MS1100 - VOC Sensor (ETC)
  • MS1100-111 - VOC Sensor (ETC)
  • MS1100-P211-S - Semiconductor formaldehyde sensing module (Blue Moon)
  • MS110 - 1 Amp Schottky Rectifier (Microsemi Corporation)
  • MS110 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • MS115 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • MS11HS1P4024 - STEPPING MOTOR (MOONS)
  • MS11HS1P4050 - STEPPING MOTOR (MOONS)
Other Datasheets by Ruimeng
  • MS1112 - 16-bit multi-input built-in reference analog-to-digital converter
  • MS1022 - High-Precision Time-to-Digital Converter
  • MS1050NA - Four-channel time-to-digital converter
  • MS1242 - 24bit High Precision Low Power Dissipation ADC
  • MS1243 - 24bit High Precision Low Power Dissipation ADC
  • MS1585 - RS-485 transceiver
  • MS1585D - RS-485 transceiver
  • MS1585M - RS-485 transceiver

Full PDF Text Transcription

Click to expand full text
MS1100 16-Bit ADC with On-board Reference PRODUCT DESCRIPTION The MS1100 is a precision, continuously self-calibrating ADC up to 16 bits resolution. The on-board reference provides a differential input range of ±2.048V. The MS1100 uses an I2C serial interface. The MS1100 operates from a single power supply ranging from 2.7V to 5.5V. The MS1100 can perform conversions at rates of 15, 30, 60 or 240 samples per second (SPS). In single-conversion mode, the MS1100 automatically powers down after a conversion, greatly reducing current consumption during idle periods. The MS1100 is designed for applications requiring high resolution measurement, where space and power consumption are major considerations. SOT23-6 FEATURES  I2C Serial Interface  On-board Reference: Accuracy: 2.048V ±0.
