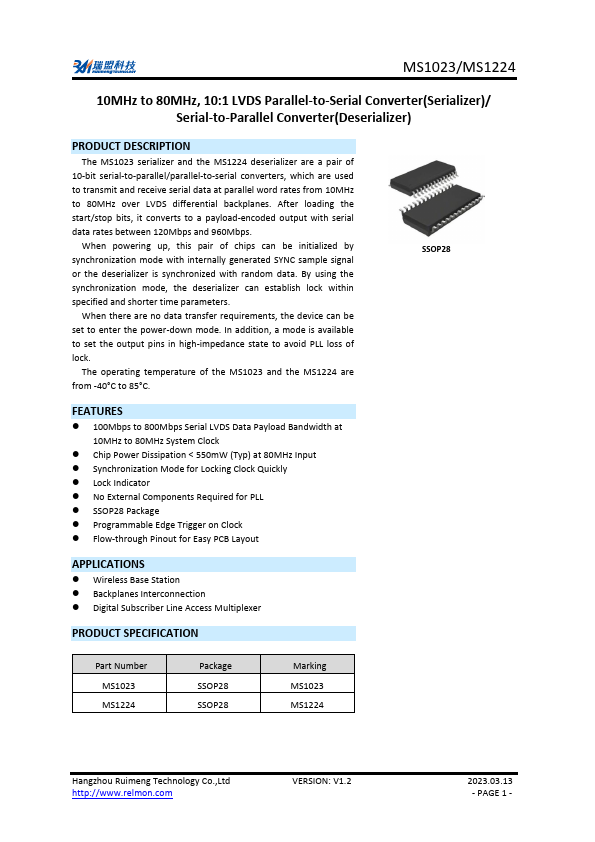

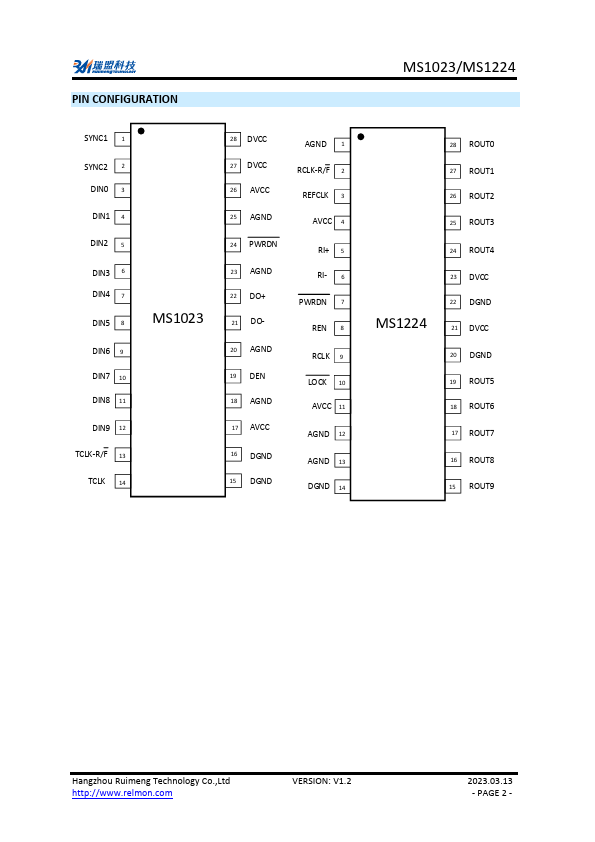

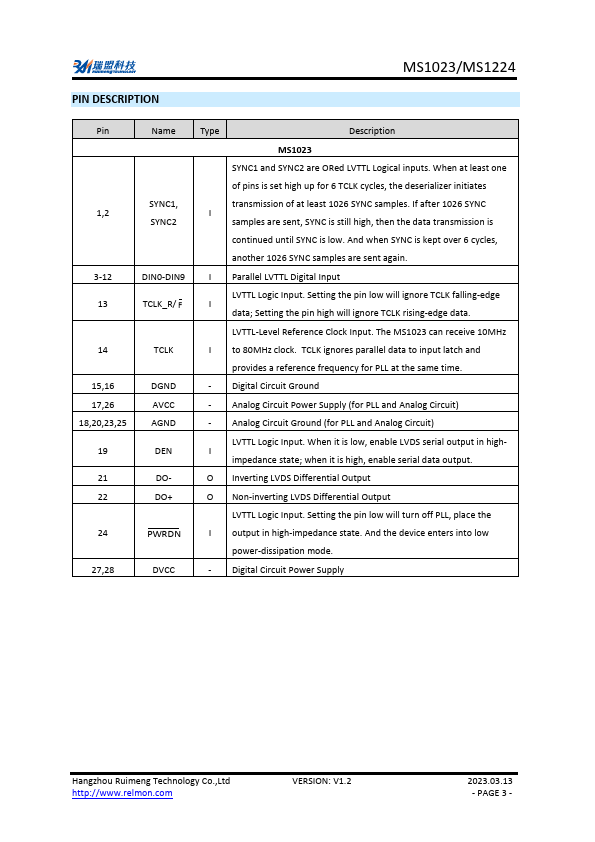

MS1224 Overview
The MS1023 serializer and the MS1224 deserializer are a pair of 10-bit serial-to-parallel/parallel-to-serial converters, which are used to transmit and receive serial data at parallel word rates from 10MHz to 80MHz over LVDS differential backplanes. After loading the start/stop bits, it converts to a payload-encoded output with serial data rates between 120Mbps and 960Mbps. When powering up, this pair of chips can...
MS1224 Key Features
- 100Mbps to 800Mbps Serial LVDS Data Payload Bandwidth at 10MHz to 80MHz System Clock
- Chip Power Dissipation < 550mW (Typ) at 80MHz Input
- Synchronization Mode for Locking Clock Quickly
- Lock Indicator
- No External ponents Required for PLL
- SSOP28 Package
- Programmable Edge Trigger on Clock
- Flow-through Pinout for Easy PCB Layout
