Ruimeng MS2201
The MS2201 is a gigabit ethernet transceiver, which could achieve super high-speed full-duplex data transmission. The communication follows the timing requirement protocol of 10-bit interface in the IEEE 802.3 Gigabit Ethernet protocol. The MS2201 supports data transmission rate ranging from 1Gbps to 1.85Gbps.| Part No. | MS2201 |
|---|---|
| Datasheet | MS2201 Download |
| Manufacturer |  Ruimeng |
| Description | Ethernet Transceiver |
| Buy | Stock & Price |
DESCRIPTION
FEATURES
● Power Supply : 2.5V, 3.3V● Operating Temperature : -40°C100°C
● Transmission Data : 1Gbps1.85Gbps
● Low Power Dissipation : Less than 200mW at 1.25Gbps
● Compatible with LVPECL High-speed Differential I/O Interface
● Single PLL
● Support 10-bit Interface or 5-bit Interface (Double Data Rate)
● Support Receiving Minimum 200mV Differential-mode Voltage for Differential Signal
● Support 3.3V LVTTL Input
● Hot-plug Protection
● Follow IEEE 802.3 Gigabit Ethernet Protocol
● Follow IEEE 1149.1 JTAG Protocol
APPLICATIONS

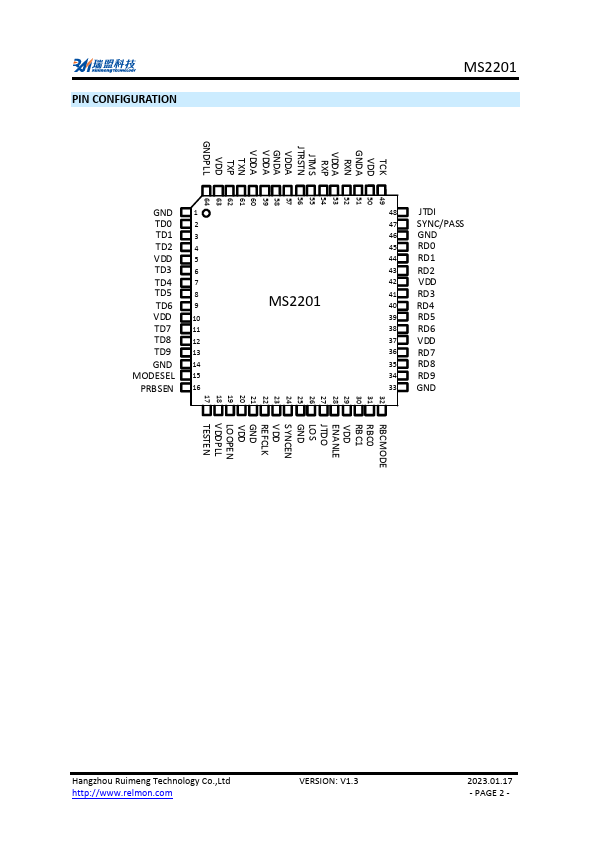

● Optical Fibre Communication PRODUCT SPECIFICATION Part Number MS2201 Package TQFP64 Marking MS2201 MS2201 TQFP64 TQFP-64 Hangzhou Ruimeng Technology Co.,Ltd VERSION: V1.3 2023.01.17 - PAGE 1 - PIN CONFIGURATION MS2201 TCK 49 VDD 50 GNDA 51 RXN 52 VDDA 53 RXP 54 JTMS 55 JTRSTN 56 VDDA 57 GNDA 58 VDDA 59 VDDA 60 TXN 61 TXP 62 VDD 63 GNDPLL 64 GND 1 TD0 2 TD1 3 TD2 4 VDD 5 TD3 6 TD4 7 TD5 8 TD6 9 VDD 10 TD7 11 TD8 12 TD9 13 GND 14 MODESEL 15 PRBSEN 16...
