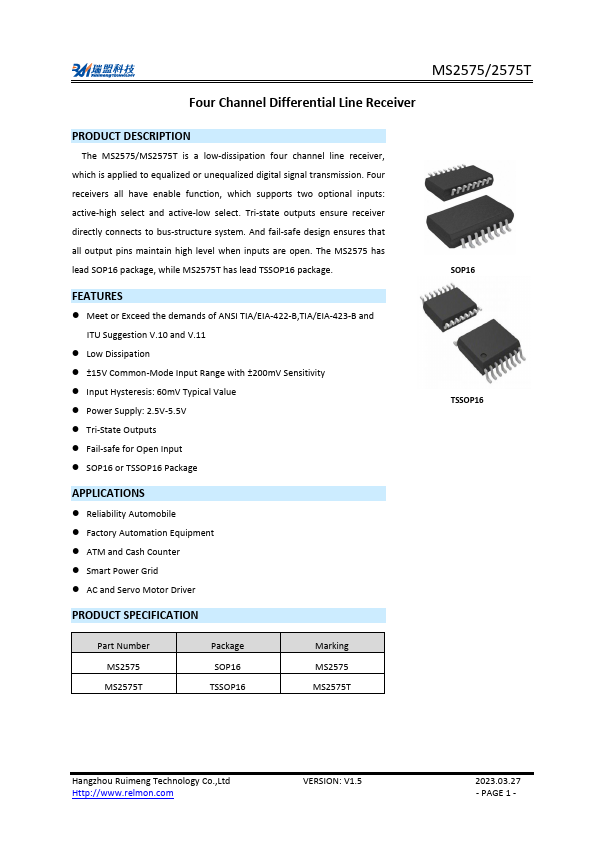

MS2575/2575T Four Channel Differential Line Receiver PRODUCT DESCRIPTION The MS2575/MS2575T is a low-dissipation four channel line receiver, which is applied to equalized or unequalized digital signal transmission. Four receivers all have enable function, which supports two optional inputs: active-high select and active-low select. Tri-state outputs ensure receiver directly connects to bus-structure system. And fail-safe design ensures that all output pins maintain high level when inputs are open. The MS2575 has lead SOP16 package, while MS2575T has lead TSSOP16 package. Features - Meet or Exceed the demands of ANSI TIA/EIA-422-B,TIA/EIA-423-B and ITU Suggestion V.10 and V.11 - Low Dissipation - ±15V mon-Mode Input Range with ±200m V Sensitivity - Input Hysteresis: 60m V Typical Value - Power Supply: 2.5V-5.5V - Tri-State Outputs - Fail-safe for Open Input - SOP16 or TSSOP16 Package APPLICATIONS - Reliability Automobile - Factory Automation Equipment - ATM and Cash Counter - Smart Power Grid - AC and Servo Motor Driver PRODUCT SPECIFICATION SOP16 TSSOP16 Part Number MS2575 MS2575T Package SOP16 TSSOP16 Marking MS2575 MS2575T Hangzhou Ruimeng Technology Co.,Ltd Http://.relmon. VERSION: V1.5 - PAGE 1 - PIN CONFIGURATION 1B 1 1A 2 1Y 3 EN 4 2Y 5 2A 6 2B 7 GND...
