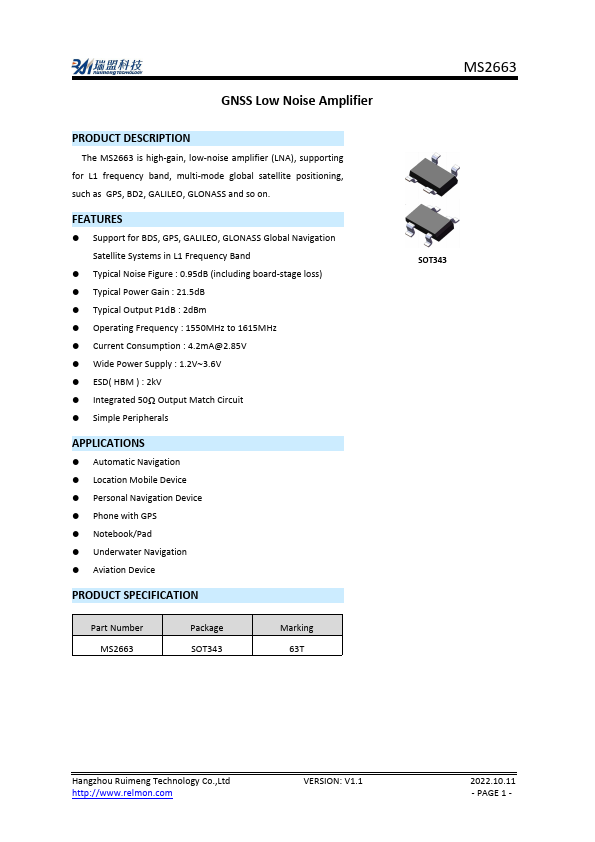

MS2663
MS2663 is GNSS Low Noise Amplifier manufactured by Ruimeng.
DESCRIPTION
The MS2663 is high-gain, low-noise amplifier (LNA), supporting for L1 frequency band, multi-mode global satellite positioning, such as GPS, BD2, GALILEO, GLONASS and so on.
FEATURES
- Support for BDS, GPS, GALILEO, GLONASS Global Navigation Satellite Systems in L1 Frequency Band
- Typical Noise Figure : 0.95d B (including board-stage loss)
- Typical Power Gain : 21.5d B
- Typical Output P1d B : 2d Bm
- Operating Frequency : 1550MHz to 1615MHz
- Current Consumption : 4.2m A@2.85V
- Wide Power Supply : 1.2V3.6V
- ESD( HBM ) : 2k V
- Integrated 50Ω Output Match Circuit
- Simple Peripherals
APPLICATIONS
- Automatic Navigation
- Location Mobile Device
- Personal Navigation Device
- Phone with GPS
- Notebook/Pad
- Underwater Navigation
- Aviation Device
PRODUCT SPECIFICATION
Part Number MS2663
Package SOT343
Marking 63T
SOT343
Hangzhou Ruimeng Technology Co.,Ltd http://.relmon.
VERSION: V1.1
- PAGE 1

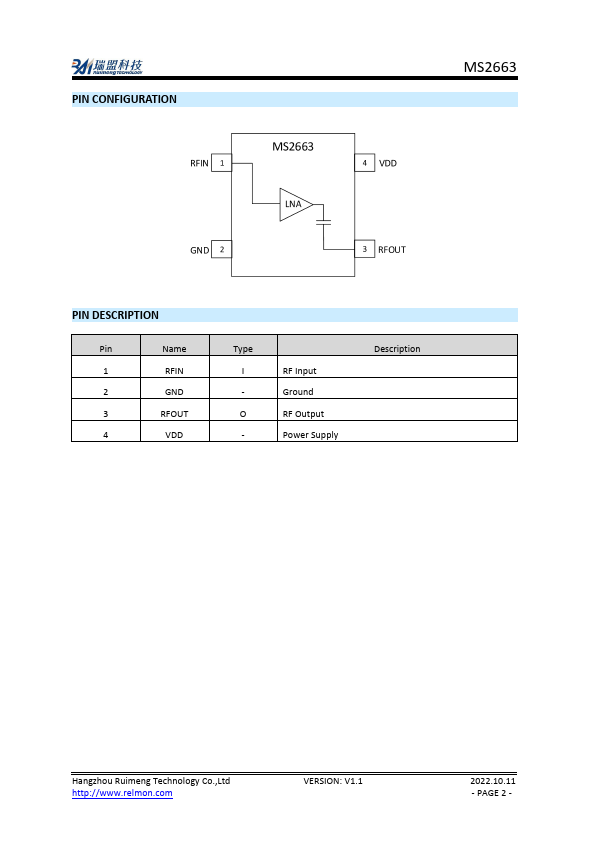

- PIN CONFIGURATION
PIN DESCRIPTION
Pin
Name
RFIN
RFOUT
Type I...
