MS324 - Low Power Dissipation Operational Amplifier

Download the MS324 datasheet PDF (MS321 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for low power dissipation operational amplifier.

Description

The MS321, MS358, MS324 are single channel, dual channel, four channel amplifiers respectively.

It has high unit gain bandwidth and the slew rate could be up to 0.4V/μs on specific condition.

Each amplifier only has 430μA quiescent current at 5V.

Features

  • Gain Bandwidth : 1MHz@25°C.
  • Low Power Supply Current: 430μA.
  • Low Input Bias Current: 30nA.
  • Power Supply Range: 2.5V to 36V.
  • Maintain Stable in Large Capacitance Load SOT23-5 SOP8.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS321-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS324
Manufacturer Ruimeng
File Size 510.54 KB
Description Low Power Dissipation Operational Amplifier
Datasheet download datasheet MS324 Datasheet

📁 Similar Datasheet

  • MS3201 - 115.2 kbps infrared transceiver module (ETC)
  • MS322R025 - MS322R025 (ETC)
  • MS3003 - P-Channel Power MOSFET (ON Semiconductor)
  • MS3004 - P-Channel Power MOSFET (ON Semiconductor)
  • MS3057A - Straight Non-Self-Locking Strain Relief (Glenair)
  • MS3100 - High Resolution 3-Chip Digital Smart Camera (MegaPlus)
  • MS3102 - RF Microwave Transistors (Microsemi)
  • MS310256 - 32768 x 8 CMOS Mask Programmable ROM (Mos Electronics)
  • MS3106A - Circular 97 Series Threaded Connectors (Amphend)
  • MS3106A-xx - Circular 97 Series Threaded Connectors (Amphend)
Other Datasheets by Ruimeng
  • MS324V - Low-voltage rail-to-rail input/output op-amp
  • MS321 - Low Power Dissipation Operational Amplifier
  • MS321V - Low-voltage rail-to-rail input/output op-amp
  • MS358 - Low Power Dissipation Operational Amplifier
  • MS358V - Low-voltage rail-to-rail input/output op-amp
  • MS3988 - quad DMOS full-bridge driver
  • MS3988N - quad DMOS full-bridge driver

Full PDF Text Transcription

Click to expand full text

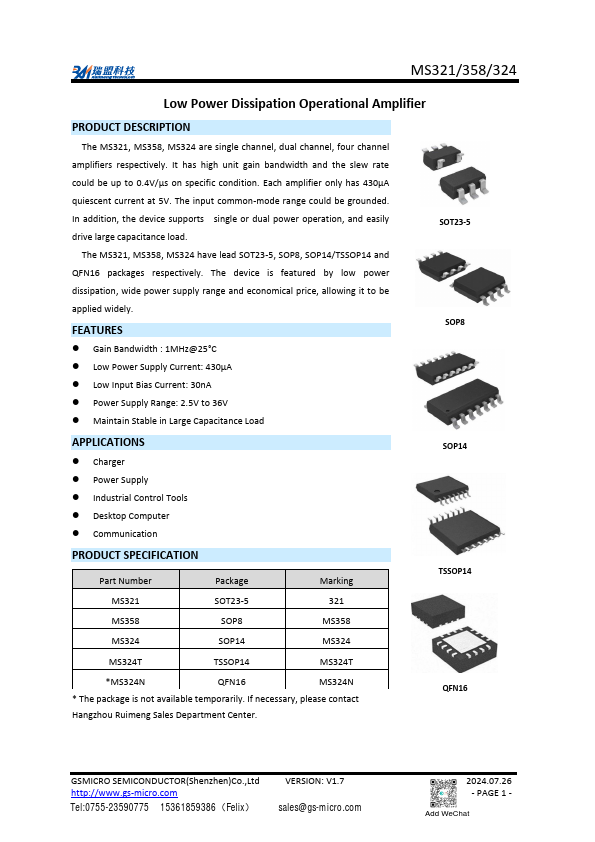

MS321/358/324 Low Power Dissipation Operational Amplifier PRODUCT DESCRIPTION The MS321, MS358, MS324 are single channel, dual channel, four channel amplifiers respectively. It has high unit gain bandwidth and the slew rate could be up to 0.4V/μs on specific condition. Each amplifier only has 430μA quiescent current at 5V. The input common-mode range could be grounded. In addition, the device supports single or dual power operation, and easily drive large capacitance load. The MS321, MS358, MS324 have lead SOT23-5, SOP8, SOP14/TSSOP14 and QFN16 packages respectively. The device is featured by low power dissipation, wide power supply range and economical price, allowing it to be applied widely.
