MS358 Datasheet PDF (Low Power Dissipation Operational Amplifier)

MS358 - Low Power Dissipation Operational Amplifier

This page provides the datasheet information for the MS358, a member of the MS321 Low Power Dissipation Operational Amplifier family.

Description

The MS321, MS358, MS324 are single channel, dual channel, four channel amplifiers respectively.

It has high unit gain bandwidth and the slew rate could be up to 0.4V/μs on specific condition.

Each amplifier only has 430μA quiescent current at 5V.

Features

Gain Bandwidth : 1MHz@25°C.
Low Power Supply Current: 430μA.
Low Input Bias Current: 30nA.
Power Supply Range: 2.5V to 36V.
Maintain Stable in Large Capacitance Load SOT23-5 SOP8.

Datasheet Details

Part number	MS358
Manufacturer	Ruimeng
File Size	510.54 KB
Description	Low Power Dissipation Operational Amplifier
Datasheet	MS358 Datasheet

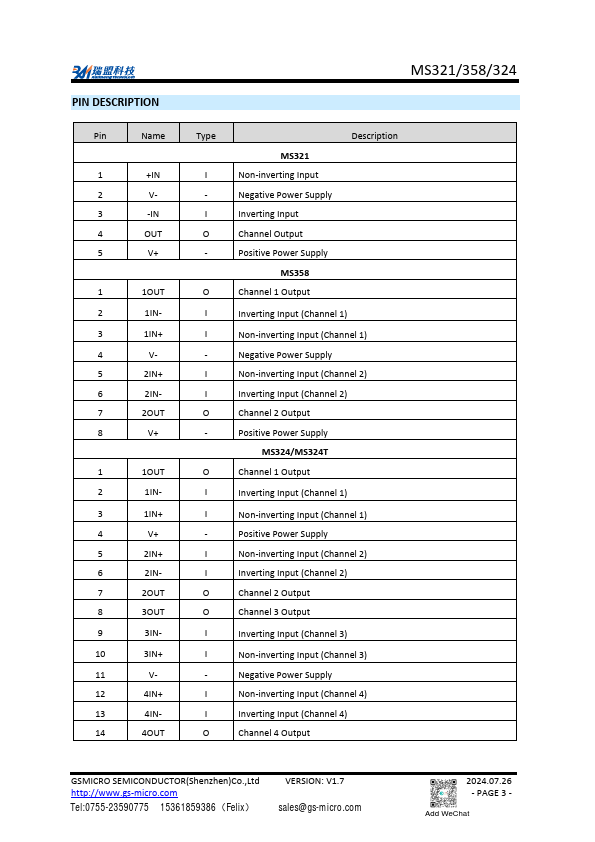

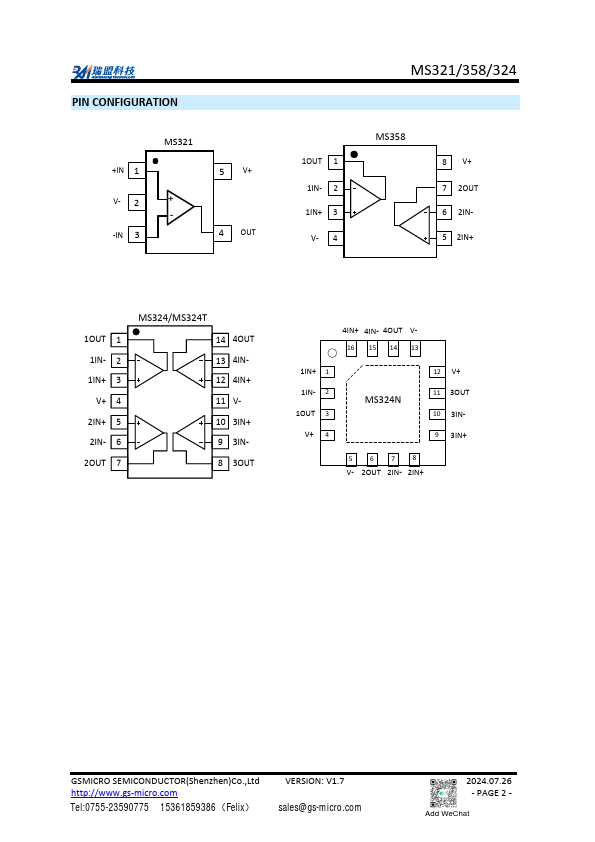

Additional preview pages of the MS358 datasheet.

📁 Similar Datasheet

MS35842-10 - MILITARY / AEROSPACE / CUSTOM Band (Breeze)

MS35842-10 - Band (Clamp)

MS35842-11 - MILITARY / AEROSPACE / CUSTOM Band (Breeze)

MS35842-11 - Band (Clamp)

MS35842-12 - MILITARY / AEROSPACE / CUSTOM Band (Breeze)

MS35842-12 - Band (Clamp)

MS35842-13 - MILITARY / AEROSPACE / CUSTOM Band (Breeze)

MS35842-13 - Band (Clamp)

MS35842-14 - MILITARY / AEROSPACE / CUSTOM Band (Breeze)

MS35842-14 - Band (Clamp)

Full PDF Text Transcription

Click to expand full text

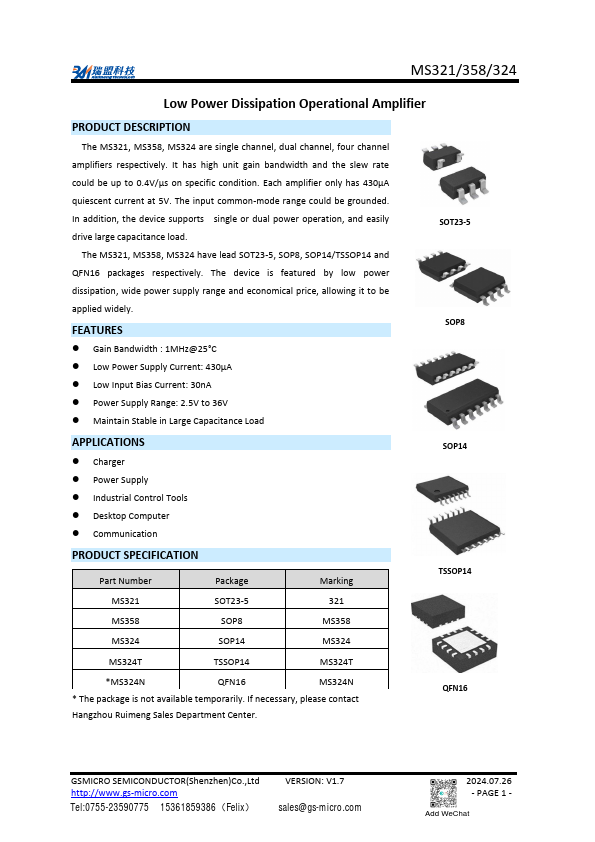

MS321/358/324 Low Power Dissipation Operational Amplifier PRODUCT DESCRIPTION The MS321, MS358, MS324 are single channel, dual channel, four channel amplifiers respectively. It has high unit gain bandwidth and the slew rate could be up to 0.4V/μs on specific condition. Each amplifier only has 430μA quiescent current at 5V. The input common-mode range could be grounded. In addition, the device supports single or dual power operation, and easily drive large capacitance load. The MS321, MS358, MS324 have lead SOT23-5, SOP8, SOP14/TSSOP14 and QFN16 packages respectively. The device is featured by low power dissipation, wide power supply range and economical price, allowing it to be applied widely.
