MS5213T - 16-bit Analog to Digital Converter

Description

The MS5213T is an analog-to-digital converter for low-frequency measurement.

It uses Σ-Δ conversion technology to realize 16-bit no missing code feature.

The operating voltage range is 2.7V-3.3V or 4.75V-5.25V.

Features

  • Two Fully Differential Input Channels.
  • 16-bit No Missing Codes.
  • 0.003% Non-linearity.
  • PGA: Gain from 1 to 128.
  • 3-Wire Serial Port: SPI, QSPI,.

📥 Download Datasheet

Datasheet Details

Part number MS5213T
Manufacturer Ruimeng
File Size 711.03 KB
Description 16-bit Analog to Digital Converter
Datasheet download datasheet MS5213T Datasheet

📁 Similar Datasheet

  • MS500 - Surface Mount Si-Bridge-Rectifiers (Diotec Semiconductor)
  • MS508 - 5 Amp Schottky Rectifier (Microsemi Corporation)
  • MS509 - 5 Amp Schottky Rectifier (Microsemi Corporation)
  • MS510 - 5 Amp Schottky Rectifier (Microsemi Corporation)
  • MS5168 - ZigBee Module (Meshreen)
  • MS5168-M00 - ZigBee Module (Meshreen)
  • MS5168-M03 - ZigBee Module (Meshreen)
  • MS5168-M04 - ZigBee Module (Meshreen)
  • MS5168-M05 - ZigBee Module (Meshreen)
  • MS51830E - Insert / Screw-Thread / Key Locked (ETC)
Other Datasheets by Ruimeng
  • MS5224D - 2.7V to 5.5V 12-bit four-channel analog-to-digital converter
  • MS5281D - 24bit 192kHz Dual Channel Differential Digital to Analog Converter
  • MS5175 - 16-bit built-in reference analog-to-digital converter
  • MS5182N - 16bit 4/8-Channel SAR ADC
  • MS5189N - 16bit 4/8-Channel SAR ADC
  • MS5192T - 16-/24-Bit ADC
  • MS5193T - 16-/24-Bit ADC
  • MS5194T - Low Noise Low Power Dissipation ADC

Full PDF Text Transcription

Click to expand full text

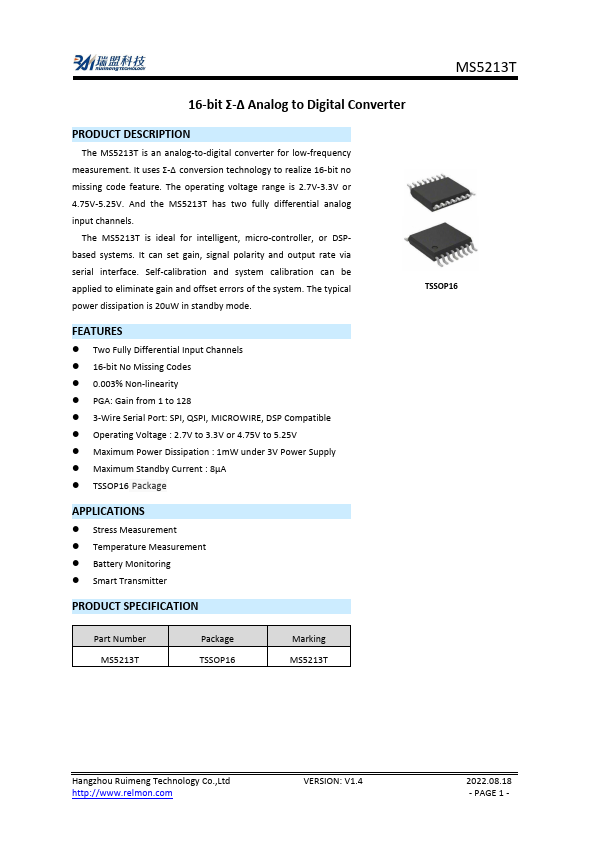

MS5213T 16-bit Σ-Δ Analog to Digital Converter PRODUCT DESCRIPTION The MS5213T is an analog-to-digital converter for low-frequency measurement. It uses Σ-Δ conversion technology to realize 16-bit no missing code feature. The operating voltage range is 2.7V-3.3V or 4.75V-5.25V. And the MS5213T has two fully differential analog input channels. The MS5213T is ideal for intelligent, micro-controller, or DSPbased systems. It can set gain, signal polarity and output rate via serial interface. Self-calibration and system calibration can be applied to eliminate gain and offset errors of the system. The typical power dissipation is 20uW in standby mode. FEATURES  Two Fully Differential Input Channels  16-bit No Missing Codes  0.
