MS5351M - General Clock Generator

Product Overview

Ruimeng

Datasheet Details

Part number	MS5351M
Manufacturer	Ruimeng
File Size	300.24 KB
Description	General Clock Generator
Datasheet	MS5351M Datasheet

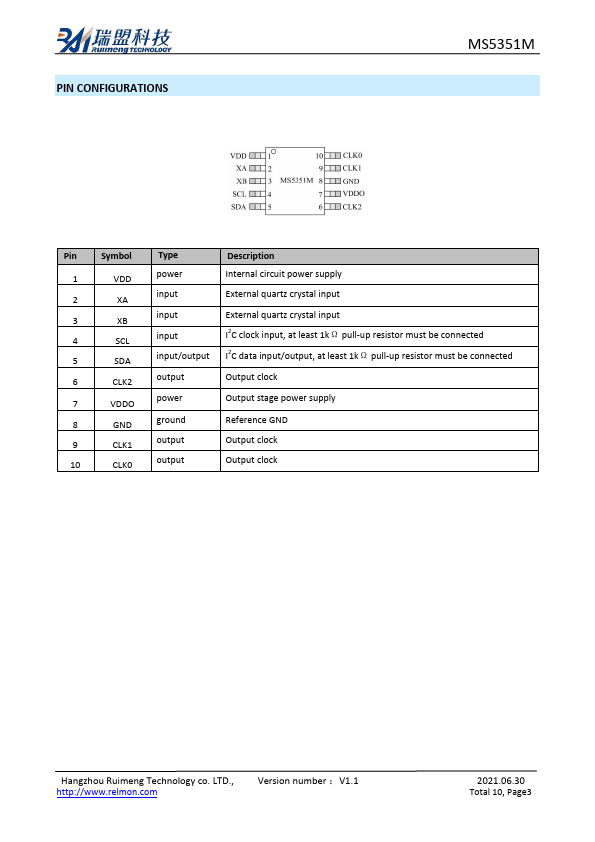

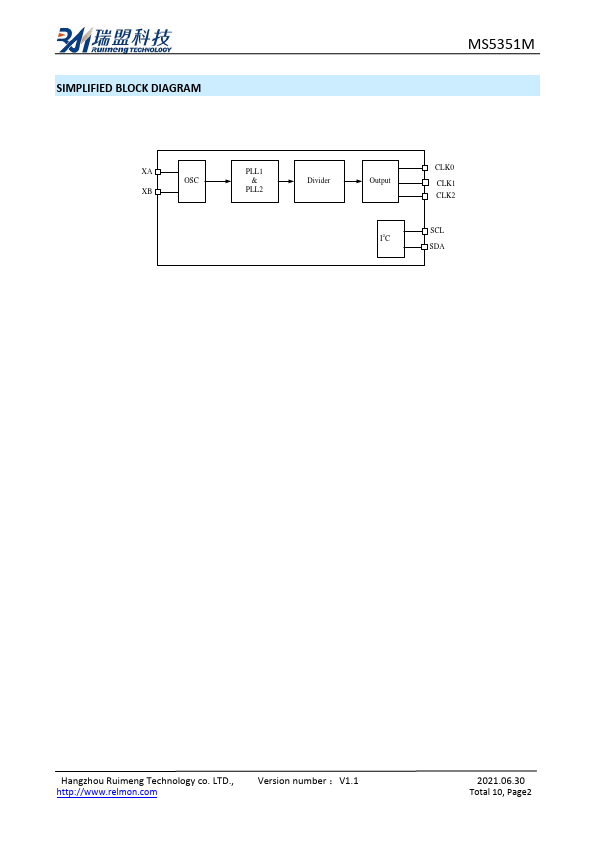

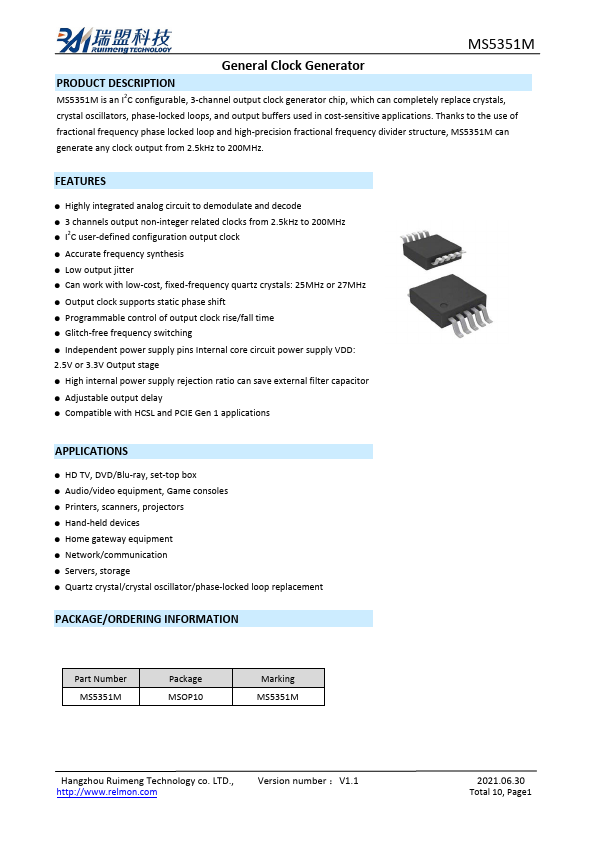

Additional preview pages of the MS5351M datasheet.

Product details

Description

MS5351M is an I2C configurable, 3-channel output clock generator chip, which can completely replace crystals, crystal oscillators, phase-locked loops, and output buffers used in cost-sensitive applications.

Features

Highly integrated analog circuit to demodulate and decode.
3 channels output non-integer related clocks from 2.5kHz to 200MHz.
I2C user-defined configuration output clock.
Accurate frequency synthesis.
Low output jitter.
Can work with low-cost, fixed-frequency quartz crystals: 25MHz or 27MHz.
Output clock supports static phase shift.
Programmable control of output clock rise/fall time.
Glitch-free frequency switching.
Independent power supply pi.
