MS5358 - 24-Bit 96-kHz Stereo ADC

Description

applications.

Its sample rate ranges from 8kHz to 96kHz.

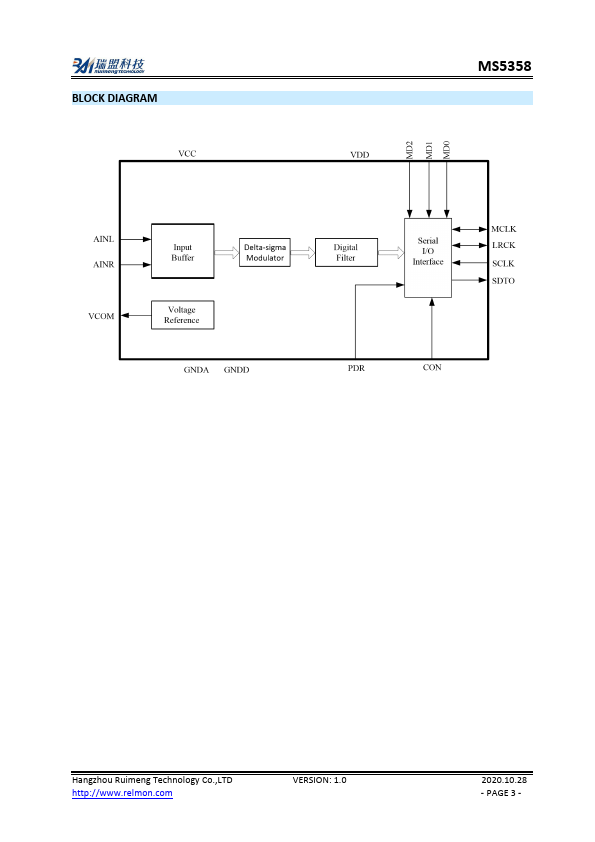

The MS5358 has high-accuracy feature achieved by using a delta-sigma modulator and a digital decimation filter.

Features

  • 24bit ADC.
  • Single-ended Input.
  • High Performance: THD+N: -92.5dB DR: 102dB S/N: 102dB.
  • Sampling Rate: 8kHz  96kHz.
  • Master Clock: 256fs/384fs/512fs/768fs (8kHz48kHz) 256fs/384fs (48kHz96kHz).
  • Digital Input Level: CMOS.
  • Master or Slave Mode.
  • Audio Interface: 24bit MSB Justified or I2S.
  • Analog Power Supply：4.5V5.5V.
  • Digital Power Supply：2.7V3.6V.
  • Ambient Temperature: -40°C105°C.
  • TSSOP16 Package.

📥 Download Datasheet

Datasheet Details

Part number MS5358
Manufacturer Ruimeng
File Size 967.04 KB
Description 24-Bit 96-kHz Stereo ADC
Datasheet download datasheet MS5358 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS500 Surface Mount Si-Bridge-Rectifiers Diotec Semiconductor
MS508 5 Amp Schottky Rectifier Microsemi Corporation
MS509 5 Amp Schottky Rectifier Microsemi Corporation
MS510 5 Amp Schottky Rectifier Microsemi Corporation
MS5168 ZigBee Module Meshreen

Other Datasheets by Ruimeng

Part Number Description
MS5351M General Clock Generator
MS5175 16-bit built-in reference analog-to-digital converter
MS5182N 16bit 4/8-Channel SAR ADC
MS5189N 16bit 4/8-Channel SAR ADC
MS5192T 16-/24-Bit ADC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

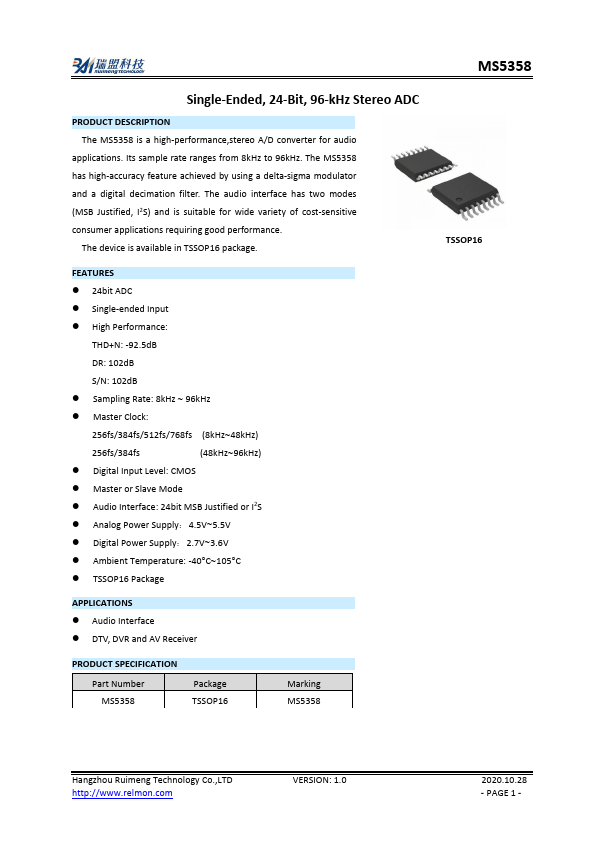

Single-Ended, 24-Bit, 96-kHz Stereo ADC PRODUCT DESCRIPTION The MS5358 is a high-performance,stereo A/D converter for audio applications. Its sample rate ranges from 8kHz to 96kHz. The MS5358 has high-accuracy feature achieved by using a delta-sigma modulator and a digital decimation filter. The audio interface has two modes (MSB Justified, I2S) and is suitable for wide variety of cost-sensitive consumer applications requiring good performance. The device is available in TSSOP16 package. FEATURES  24bit ADC  Single-ended Input  High Performance: THD+N: -92.
