MS5510 - 8-bit High-speed ADC

Description

The MS5510 is a 8-bit, 20MSPS analog-to-digital converter (ADC) using semiflash architecture.

The MS5510 operates in 5V supply and the typical power dissipation is only 130mW.

Features

  • Analog Signal Input Range : Mode 1: 2V (Max); Mode 2: 4V (Max).
  • Resolution : 8bit.
  • INL: ±0.75 LSB (25°C); ±1 LSB (-20°C-75°C).
  • DNL: ±0.5 LSB (25°C); ±0.75 LSB (-20°C-75°C).
  • Fastest Conversion Rate : 20MSPS.
  • 5VSingle Power Supply.
  • Low Power Dissipation : Mode 1 : 127.5mW ; Mode 2: 150mW SOP24.

📥 Download Datasheet

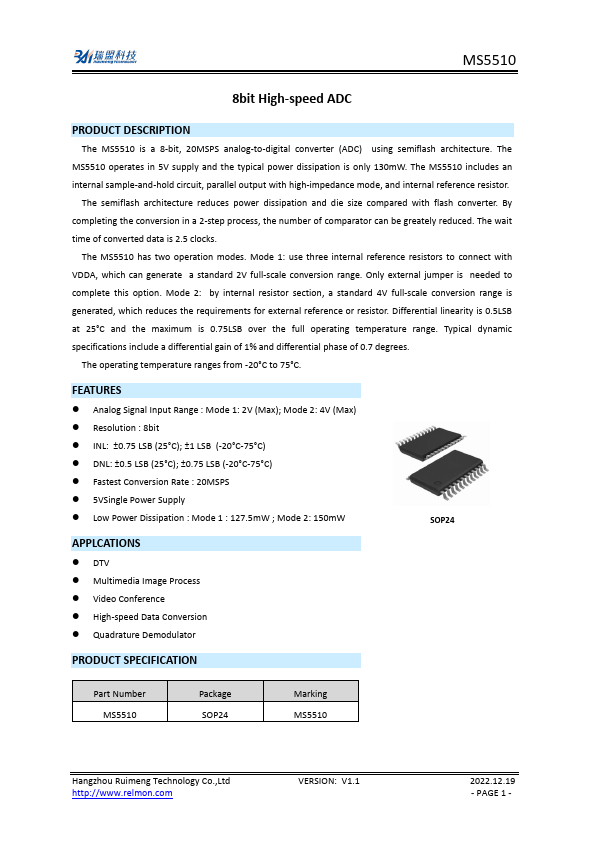

Datasheet preview – MS5510

Datasheet Details

Part number MS5510
Manufacturer Ruimeng
File Size 487.80 KB
Description 8-bit High-speed ADC
Datasheet download datasheet MS5510 Datasheet

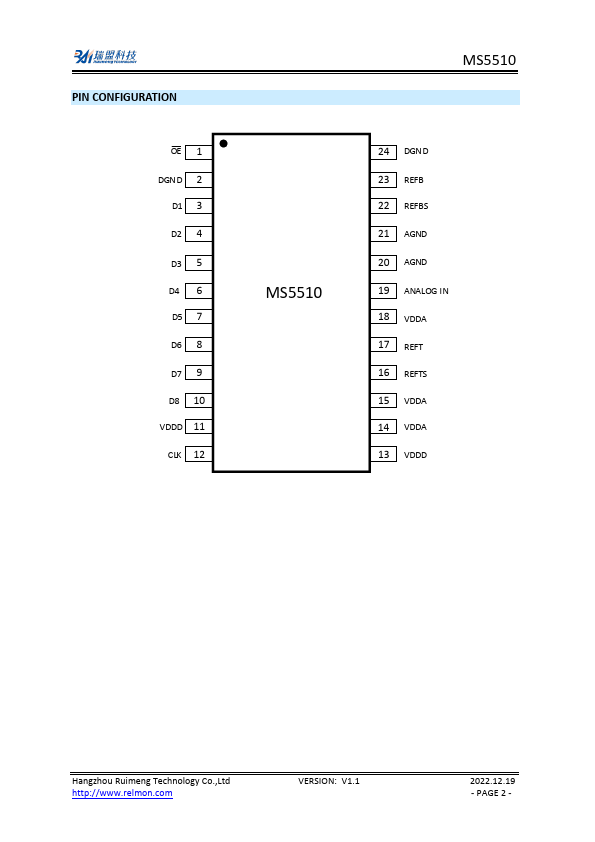

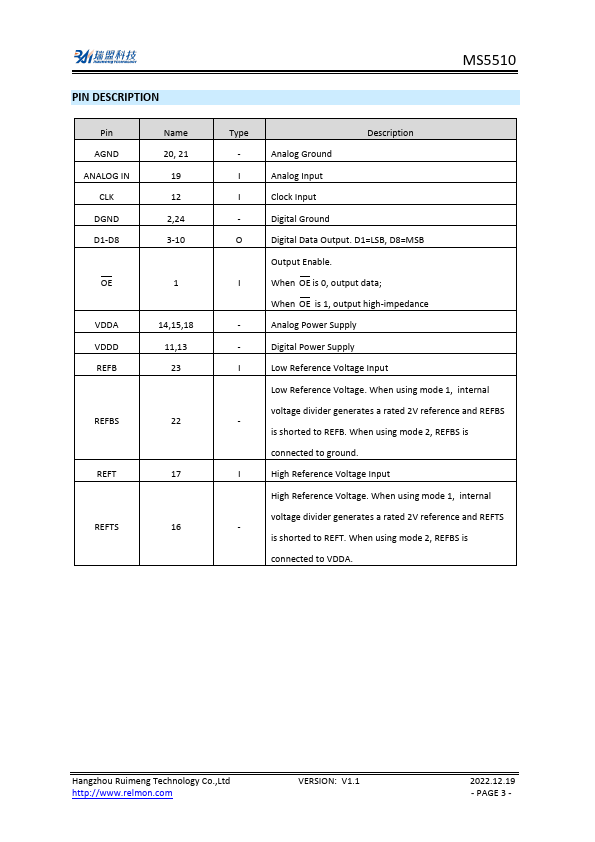

Additional preview pages of the MS5510 datasheet.

📁 Similar Datasheet

  • MS5525DSO - Digital Small Outline pressure sensors (TE)
  • MS5534A - BAROMETER MODULE (ETC)
  • MS5534B - BAROMETER MODULE (ETC)
  • MS5534C - Barometer Module (TE)
  • MS5535-30C - 30 bar Pressure Sensor Module (TE)
  • MS5535B - PRESSURE SENSOR MODULE (Intersema)
  • MS5535C - PRESSURE SENSOR MODULE (Intersema)
  • MS5535C - 14 bar Pressure Sensor Module (TE)
  • MS5536C - SMD Gage Pressure Module (TE)
  • MS5540B - MINIATURE BAROMETER MODULE (Intersema)
Other Datasheets by Ruimeng
  • MS5541 - 2.7V to 5.5V 16-Bit DAC
  • MS5541A - 2.7V to 5.5V 16-Bit DAC
  • MS5541M - 2.7V to 5.5V 16-Bit DAC
  • MS5542 - 2.7V to 5.5V 16-Bit DAC
  • MS5543 - 16-Bit DAC
  • MS5175 - 16-bit built-in reference analog-to-digital converter
  • MS5182N - 16bit 4/8-Channel SAR ADC
  • MS5189N - 16bit 4/8-Channel SAR ADC

Full PDF Text Transcription

Click to expand full text
MS5510 8bit High-speed ADC PRODUCT DESCRIPTION The MS5510 is a 8-bit, 20MSPS analog-to-digital converter (ADC) using semiflash architecture. The MS5510 operates in 5V supply and the typical power dissipation is only 130mW. The MS5510 includes an internal sample-and-hold circuit, parallel output with high-impedance mode, and internal reference resistor. The semiflash architecture reduces power dissipation and die size compared with flash converter. By completing the conversion in a 2-step process, the number of comparator can be greately reduced. The wait time of converted data is 2.5 clocks. The MS5510 has two operation modes. Mode 1: use three internal reference resistors to connect with VDDA, which can generate a standard 2V full-scale conversion range.
