MS5602 Overview
Description

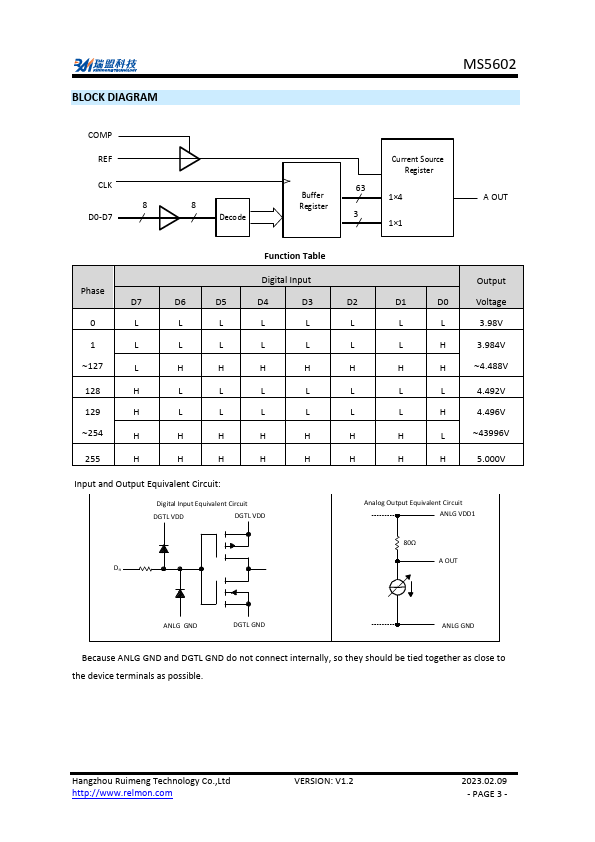

Digital Ground - Digital Power Supply I/O Phase Compensation Capacitance I Input Reference Voltage - Analog Power Supply 1 O Analog Output - Not Connection - Analog Power Supply 2 -- Analog Ground I Clock Input I 8-Bit Digital Input (D7 is high, D0 is low) - Not Connection Hangzhou Ruimeng Technology Co.,Ltd VERSION: V1.2 2023.02.09 - PAGE 2 - MS5602 COMP REF CLK 8 D0-D7 8 Decode Buffer Register Current Source Register 63 1×4 3 1×1 A OUT Function Table Phase D7 0 L 1 L 127 L Digital Input D6 D5 D4 D3 L L L L L L L L H H H H 128 H L L L L 129 H L L L L 254 H H H H H 255 H H H.
Key Features
- 8-Bit Resolution
- ±0.2% Linearity
- Maximum Conversion Rate Typical Value: 30MHz Minimum Value: 20MHz
- Analog Output Voltage Range: VDD to VDD-1V
- TTL Digital Input Level
