MS6031 - Rail-to-Rail Input and Output Operational Amplifier

Description

The MS6031/2/3/4 family is single-channel, dual-channel, singlechannel with chip selection and four-channel rail-to-rail input and output operational amplifier with single power supply respectively.

Features

  • Rail-to-Rail Input and Output.
  • Low Offset Voltage: ±150μV.
  • Low Quiescent Current: 1μA.
  • Power Supply Voltage: 1.8V to 5.5V.
  • Gain Bandwidth: 13kHz.
  • Temperature Range: -40°C to 125°C.

📥 Download Datasheet

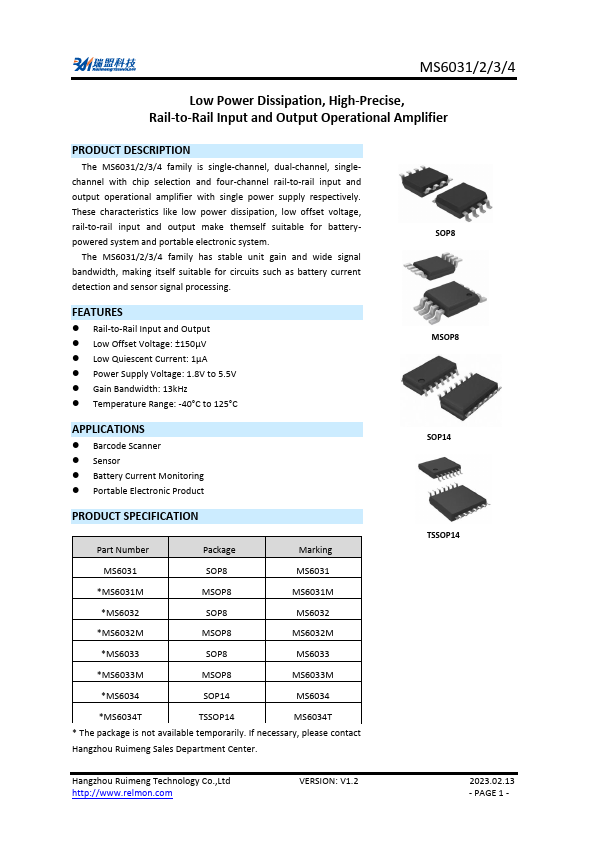

Datasheet preview – MS6031

Datasheet Details

Part number MS6031
Manufacturer Ruimeng
File Size 346.27 KB
Description Rail-to-Rail Input and Output Operational Amplifier
Datasheet download datasheet MS6031 Datasheet

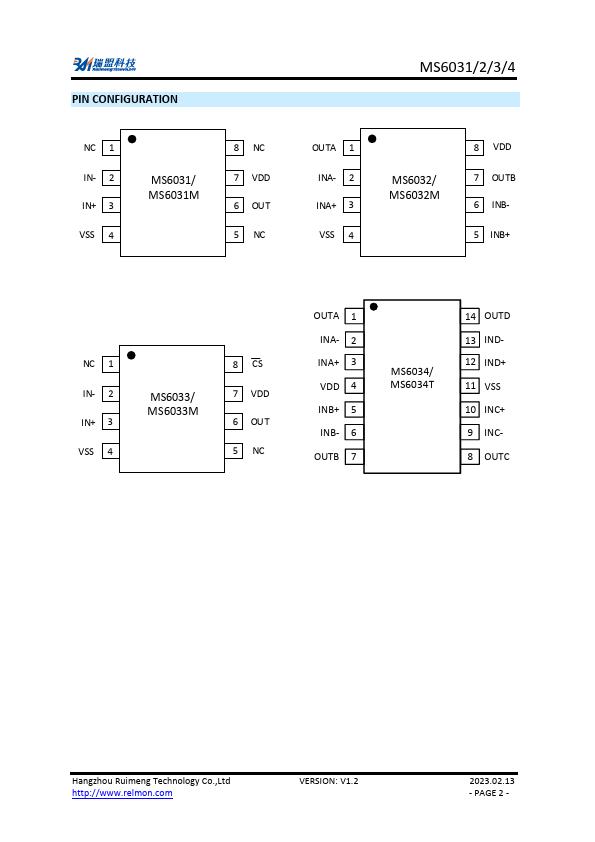

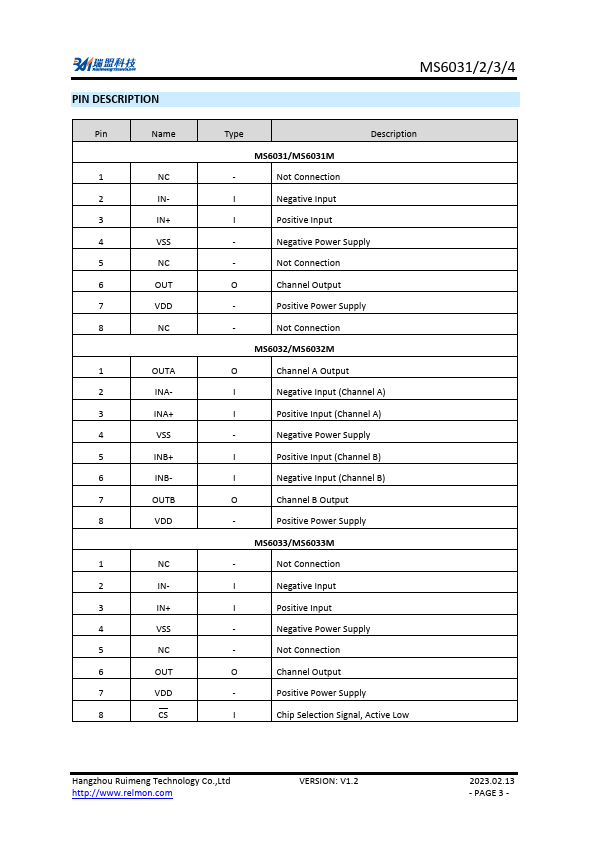

Additional preview pages of the MS6031 datasheet.

📁 Similar Datasheet

  • MS60180 - (MS60180 - MS60200) 60 Amp Schottky Rectifier (Microsemi Corporation)
  • MS60200 - (MS60180 - MS60200) 60 Amp Schottky Rectifier (Microsemi Corporation)
  • MS60N60HGB3 - MOSFET (MASPOWER)
  • MS60N60HGC1 - MOSFET (MASPOWER)
  • MS614 - Coin-type Manganese Silicon Rechargeable Lithium Batteries (Panasonic)
  • MS614E - MS Lithium Rechargeable Battery (Seiko)
  • MS614SE - MS Lithium Rechargeable Battery (Seiko)
  • MS619ST - Digital Projector User Manual (BenQ)
  • MS621000 - 1M CMOS Static RAM (Mosel-Vitelic)
  • MS621002 - 256K x 4 CMOS Static RAM (Mosel-Vitelic)
Other Datasheets by Ruimeng
  • MS6032 - Rail-to-Rail Input and Output Operational Amplifier
  • MS6033 - Rail-to-Rail Input and Output Operational Amplifier
  • MS6034 - Rail-to-Rail Input and Output Operational Amplifier
  • MS6001 - Rail-to-Rail Input/Output Amplifier
  • MS6002 - Rail-to-Rail Input/Output Amplifier
  • MS6002M - Rail-to-Rail Input/Output Amplifier
  • MS6004 - Rail-to-Rail Input/Output Amplifier
  • MS6004S - Rail-to-Rail Input/Output Amplifier

Full PDF Text Transcription

Click to expand full text
MS6031/2/3/4 Low Power Dissipation, High-Precise, Rail-to-Rail Input and Output Operational Amplifier PRODUCT DESCRIPTION The MS6031/2/3/4 family is single-channel, dual-channel, singlechannel with chip selection and four-channel rail-to-rail input and output operational amplifier with single power supply respectively. These characteristics like low power dissipation, low offset voltage, rail-to-rail input and output make themself suitable for batterypowered system and portable electronic system. The MS6031/2/3/4 family has stable unit gain and wide signal bandwidth, making itself suitable for circuits such as battery current detection and sensor signal processing.
