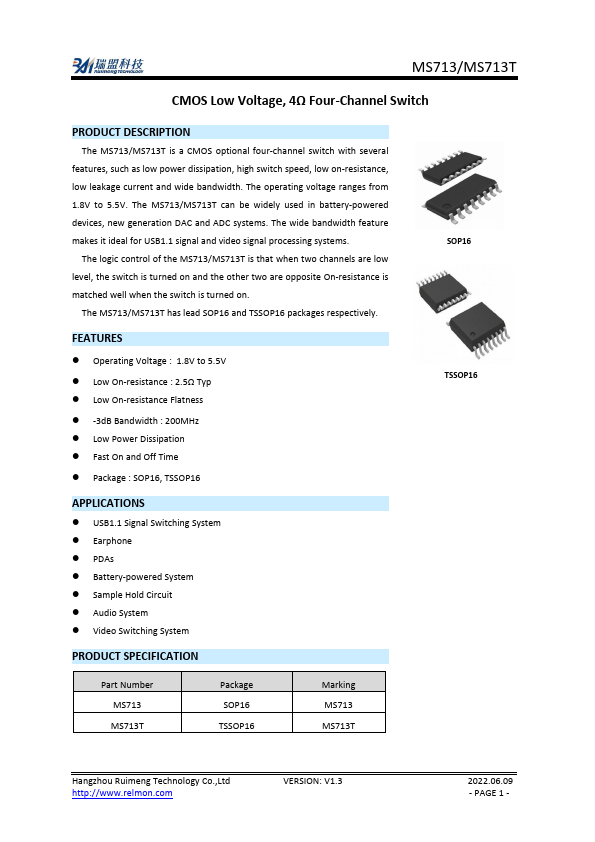

MS713T
DESCRIPTION
The MS713/MS713T is a CMOS optional four-channel switch with several features
, such as low power dissipation, high switch speed, low on-resistance, low leakage current and wide bandwidth. The operating voltage ranges from 1.8V to 5.5V. The MS713/MS713T can be widely used in battery-powered devices, new generation DAC and ADC systems. The wide bandwidth feature makes it ideal for USB1.1 signal and video signal processing systems.
The logic control of the MS713/MS713T is that when two channels are low level, the switch is turned on and the other two are opposite On-resistance is matched well when the switch is turned on.
The MS713/MS713T has lead SOP16 and TSSOP16 packages respectively.
FEATURES
- Operating Voltage : 1.8V to 5.5V
- Low On-resistance : 2.5Ω Typ
- Low On-resistance Flatness
- -3d B Bandwidth : 200MHz
- Low Power Dissipation
- Fast On and Off Time
- Package : SOP16, TSSOP16
APPLICATIONS
- USB1.1 Signal Switching System
- Earphone
- PDAs
- Battery-powered...
