MS7332M - Integrated Single Video Amplifier And Video Coaxial Control Decoder

Description

The MS7332M integrated Single video amplifier and video coaxial control decoder.

video amplifier integrates Single rail-to-rail output driver with 6dB Gain and 10th output reconstruction filter, it has 35MHz -3dB bandwidth.

Features

  • Tenth-order 35MHz (HD) Filter.
  • Transparent input clamping.
  • 6dB output driver Gain and drive dual video load.
  • Rail-to-Rail Output.
  • Input Voltage Range Includes Ground.
  • AC or DC Coupled Inputs.
  • AC or DC Coupled Outputs.
  • Operates from 2.7V to 5V Single power supply.
  • Low Power 25mA Supply Current.
  • Lead MSOP-8 package.

📥 Download Datasheet

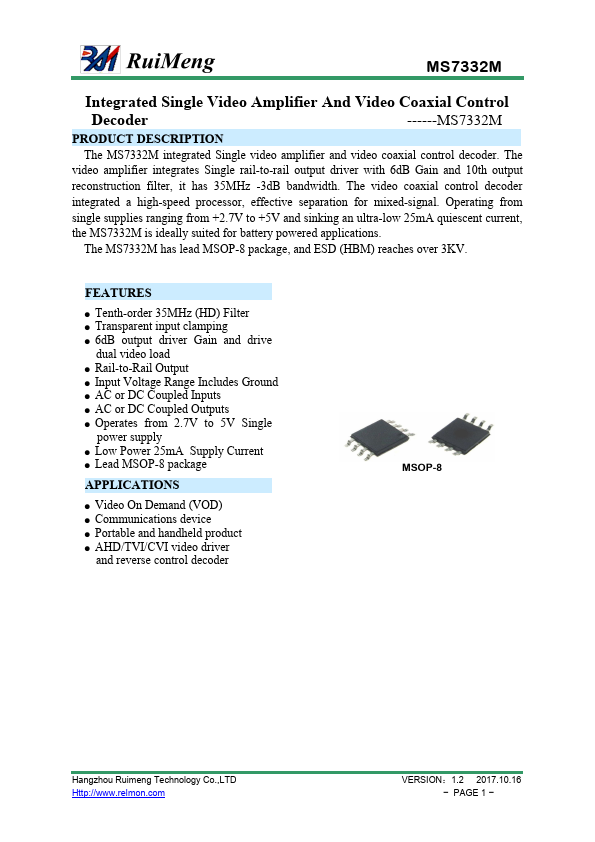

Datasheet preview – MS7332M

Datasheet Details

Part number MS7332M
Manufacturer Ruimeng
File Size 377.75 KB
Description Integrated Single Video Amplifier And Video Coaxial Control Decoder
Datasheet download datasheet MS7332M Datasheet

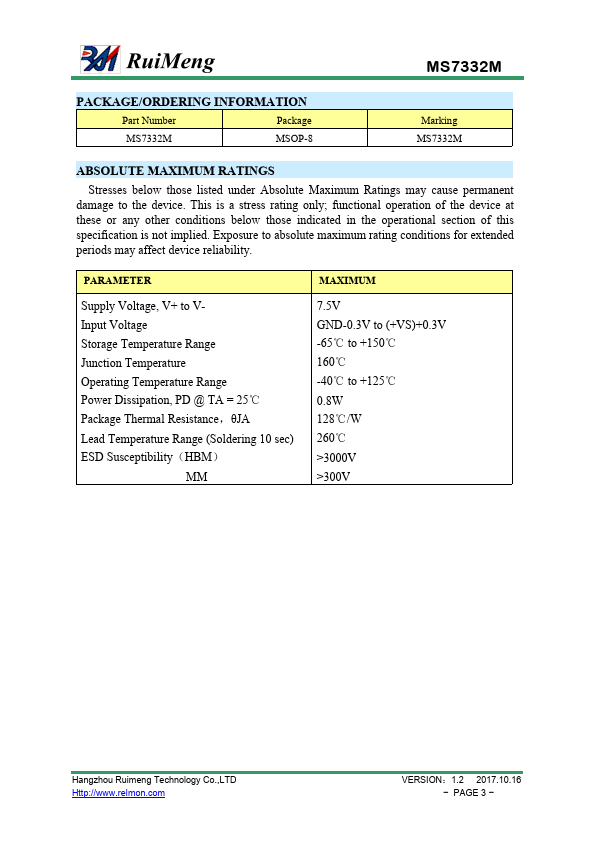

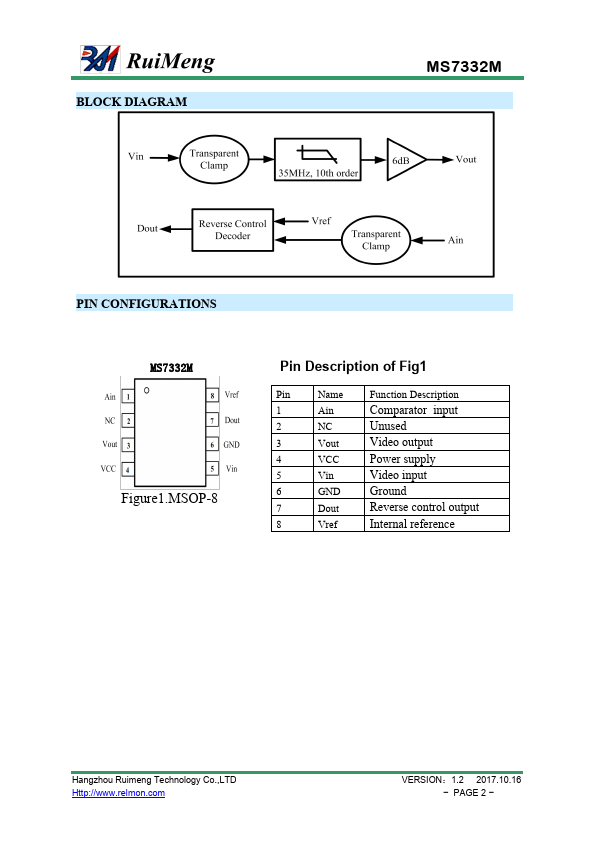

Additional preview pages of the MS7332M datasheet.

📁 Similar Datasheet

  • MS7 - MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS (RUBYCON CORPORATION)
  • MS7200 - HD to Digital RGB/YUV (MACRO SILICON)
  • MS7212 - PRESSURE SENSOR DIE (Measurement)
  • MS7212-A2 - Hermetic Pressure Sensor Die (Measurement)
  • MS74181 - Power Inductor (Fenghua Advanced Technology)
  • MS75083 - Inductors (Vishay)
  • MS75084 - Inductors (Vishay)
  • MS75085 - Inductors (Vishay)
  • MS75089D - Coil (ETC)
  • MS75101 - Inductors (Vishay)
Other Datasheets by Ruimeng
  • MS7335M - Integrated single-channel video op-amp
  • MS7336M - HD/FHD Selectable Video Filter Driver
  • MS7336MA - HD/FHD Selectable Video Filter Driver
  • MS7337M - Integrated single-channel video op-amp
  • MS7338MA - HD/FHD Selectable Video Filter Driver
  • MS7372 - Integrates CVBS And FHD Filter Driver
  • MS7372M - Integrates CVBS And FHD Filter Driver
  • MS721 - Meter bus (M-Bus) slave transceiver circuit

Full PDF Text Transcription

Click to expand full text
MS7332M Integrated Single Video Amplifier And Video Coaxial Control Decoder ------MS7332M PRODUCT DESCRIPTION The MS7332M integrated Single video amplifier and video coaxial control decoder. The video amplifier integrates Single rail-to-rail output driver with 6dB Gain and 10th output reconstruction filter, it has 35MHz -3dB bandwidth. The video coaxial control decoder integrated a high-speed processor, effective separation for mixed-signal. Operating from single supplies ranging from +2.7V to +5V and sinking an ultra-low 25mA quiescent current, the MS7332M is ideally suited for battery powered applications. The MS7332M has lead MSOP-8 package, and ESD (HBM) reaches over 3KV.
