MS762 - Push-Pull Output Comparator

This page provides the datasheet information for the MS762, a member of the MS761 Push-Pull Output Comparator family.

Description

The MS761/MS762 is a high-precision comparator with low noise and low input offset voltage.

The typical value of input offset voltage is 200μV in room temperature and maximum value is 1mV within full temperature range.

Features

  • CMOS input and push-pull output. It have low bias current and high input impedance with no need for an external pull-up resistor. The MS761 is available in SOT23-6 and SOP8 package. The MS762 is available in SOP8 and MSOP8 package.

📥 Download Datasheet

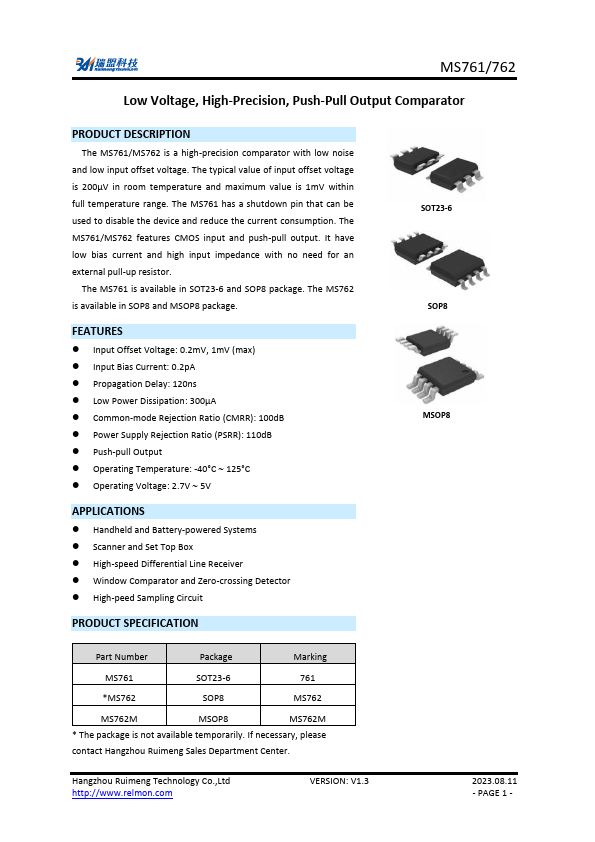

Datasheet preview – MS762

Datasheet Details

Part number MS762
Manufacturer Ruimeng
File Size 1.19 MB
Description Push-Pull Output Comparator
Datasheet download datasheet MS762 Datasheet

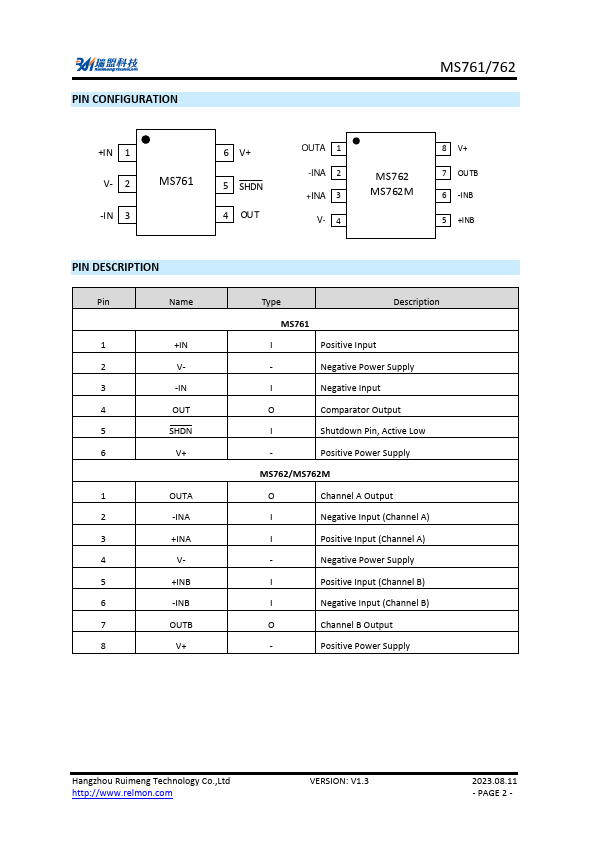

Additional preview pages of the MS762 datasheet.

📁 Similar Datasheet

  • MS761 - PRESSURE SENSOR DIE (Intersema)
  • MS7 - MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS (RUBYCON CORPORATION)
  • MS7200 - HD to Digital RGB/YUV (MACRO SILICON)
  • MS7212 - PRESSURE SENSOR DIE (Measurement)
  • MS7212-A2 - Hermetic Pressure Sensor Die (Measurement)
  • MS74181 - Power Inductor (Fenghua Advanced Technology)
  • MS75083 - Inductors (Vishay)
  • MS75084 - Inductors (Vishay)
  • MS75085 - Inductors (Vishay)
  • MS75089D - Coil (ETC)
Other Datasheets by Ruimeng
  • MS762M - Push-Pull Output Comparator
  • MS761 - Push-Pull Output Comparator
  • MS7632M - Single Video Amplifier And Video Coaxial Control Decoder
  • MS7682 - Video Amplifier And Video Coaxial Control Decoder
  • MS7682M - Video Amplifier And Video Coaxial Control Decoder
  • MS721 - Meter bus (M-Bus) slave transceiver circuit
  • MS7332M - Integrated Single Video Amplifier And Video Coaxial Control Decoder
  • MS7335M - Integrated single-channel video op-amp

Full PDF Text Transcription

Click to expand full text
MS761/762 Low Voltage, High-Precision, Push-Pull Output Comparator PRODUCT DESCRIPTION The MS761/MS762 is a high-precision comparator with low noise and low input offset voltage. The typical value of input offset voltage is 200μV in room temperature and maximum value is 1mV within full temperature range. The MS761 has a shutdown pin that can be used to disable the device and reduce the current consumption. The MS761/MS762 features CMOS input and push-pull output. It have low bias current and high input impedance with no need for an external pull-up resistor. The MS761 is available in SOT23-6 and SOP8 package. The MS762 is available in SOP8 and MSOP8 package. FEATURES ⚫ Input Offset Voltage: 0.2mV, 1mV (max) ⚫ Input Bias Current: 0.
