Datasheet Details
| Part number | MS8228 |
|---|---|
| Manufacturer | Ruimeng |
| File Size | 428.36 KB |
| Description | Dual-channel low-offset operational amplifier |
| Download | MS8228 Download (PDF) |
|
|
| Part number | MS8228 |
|---|---|
| Manufacturer | Ruimeng |
| File Size | 428.36 KB |
| Description | Dual-channel low-offset operational amplifier |
| Download | MS8228 Download (PDF) |
|
|
|

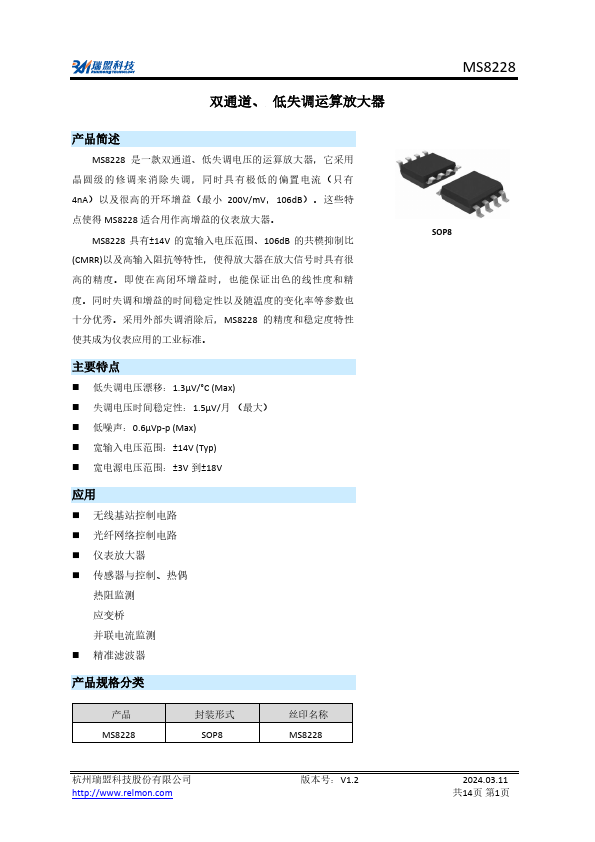

双通道、 低失调运算放大器 产品简述 MS8228 是一款双通道、低失调电压的运算放大器，它采用 晶圆级的修调来消除失调，同时具有极低的偏置电流（只有 4nA）以及很高的开环增益（最小 200V/mV，106dB）。这些特 点使得 MS8228 适合用作高增益的仪表放大器。 MS8228 具有±14V 的宽输入电压范围、106dB 的共模抑制比.
