MS8241 - Voltage Feedback Amplifier

Description

The MS8241 is a high-speed voltage feedback amplifier with the high-speed conversion characteristic possessed by current feedback amplifier.

The MS8241 can be used in all traditional voltage feedback amplifier applications.

Features

  • Simple and Easy Use for Voltage Feedback Topology.
  • Ultra-high Slew Rate: 3200V/μs.
  • High Unity Gain Bandwidth: 140MHz.
  • -3dB Bandwidth(AV=+2): 120MHz.
  • Low Quiescent Current: 7mA.
  • High Output Current: 200mA.
  • Operating Voltage: ±5V to ±8V.

📥 Download Datasheet

Datasheet Details

Part number MS8241
Manufacturer Ruimeng
File Size 400.97 KB
Description Voltage Feedback Amplifier
Datasheet download datasheet MS8241 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS8240B Digital Multimeter Manual Mastech
MS820 8 Amp Schottky Barrier Rectifier Micro Commercial Components
MS8208 Secondary cost meter microsyst
MS8229 DIGITAL MULTIMETER Mastech
MS8230B Digital Multimeter Manual Mastech

Other Datasheets by Ruimeng

Part Number Description
MS8241M Voltage Feedback Amplifier
MS8228 Dual-channel low-offset operational amplifier
MS8231 Rail-to-Rail Input and Output Operational Amplifier
MS8232 Rail-to-Rail Input and Output Operational Amplifier
MS8251 Low-noise CMOS rail-to-rail input/output operational amplifier

Full PDF Text Transcription

Click to expand full text

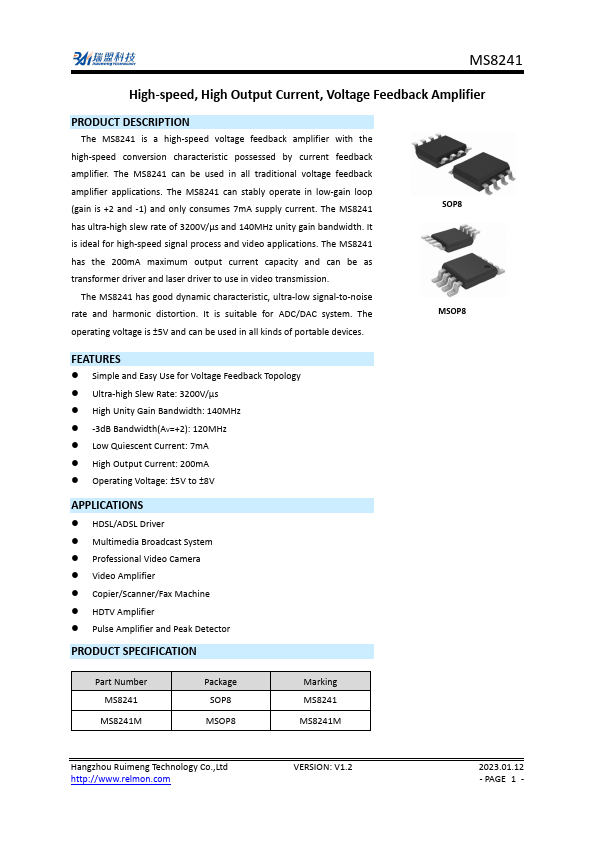

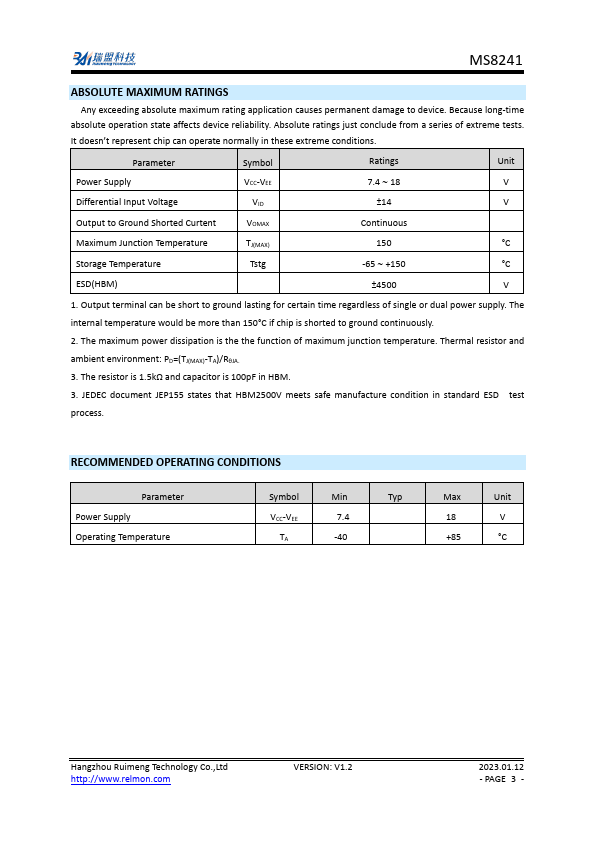

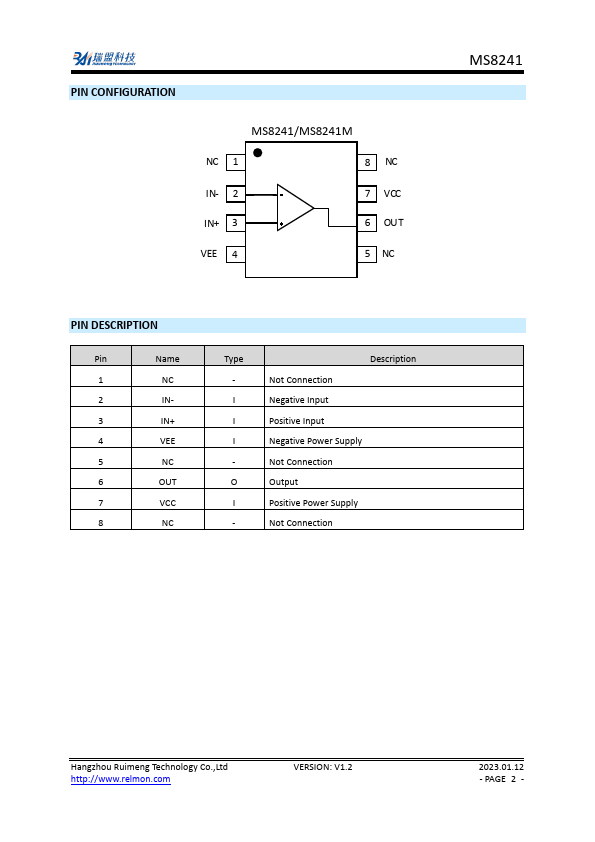

MS8241 High-speed, High Output Current, Voltage Feedback Amplifier PRODUCT DESCRIPTION The MS8241 is a high-speed voltage feedback amplifier with the high-speed conversion characteristic possessed by current feedback amplifier. The MS8241 can be used in all traditional voltage feedback amplifier applications. The MS8241 can stably operate in low-gain loop (gain is +2 and -1) and only consumes 7mA supply current. The MS8241 has ultra-high slew rate of 3200V/μs and 140MHz unity gain bandwidth. It is ideal for high-speed signal process and video applications. The MS8241 has the 200mA maximum output current capacity and can be as transformer driver and laser driver to use in video transmission.
