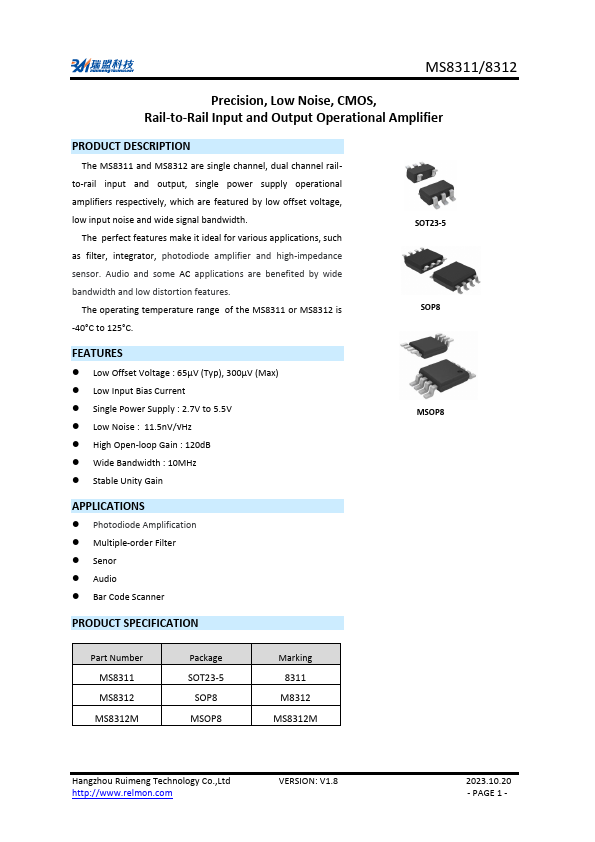

MS8312
DESCRIPTION
The MS8311 and MS8312 are single channel, dual channel railto-rail input and output, single power supply operational amplifiers respectively, which are featured by low offset voltage, low input noise and wide signal bandwidth.
The perfect features make it ideal for various applications, such as filter, integrator, photodiode amplifier and high-impedance sensor. Audio and some AC applications are benefited by wide bandwidth and low distortion features
.
The operating temperature range of the MS8311 or MS8312 is -40°C to 125°C.
FEATURES
- Low Offset Voltage : 65μV (Typ), 300μV (Max)
- Low Input Bias Current
- Single Power Supply : 2.7V to 5.5V
- Low Noise : 11.5n V/√Hz
- High Open-loop Gain : 120d B
- Wide Bandwidth : 10MHz
- Stable Unity Gain
APPLICATIONS
- Photodiode Amplification
- Multiple-order Filter
- Senor
- Audio
- Bar Code Scanner
SOT23-5 SOP8 MSOP8
PRODUCT SPECIFICATION
Part Number MS8311 MS8312 MS8312M
Package SOT23-5
SOP8 MSOP8
Marking 8311 M8312
MS8312M
Hangz...
