MS8923 - Push-Pull Output Comparator

Description

The MS8923/8923S is a differential input, high-speed and low power dissipation comparator with complementary TTL outputs.

Its propagation delay is about 10ns and its common-mode input range includes the negative rail.

The MS8923/8923S output can remain stable output in the linear region.

Features

  • Fast Propagation Delay: 10ns.
  • Single Power Supply +5V or Dual Power Supply ±5V.
  • Input Voltage Range below the Negative Rail.
  • Low Power Dissipation: 6mA.
  • No Requirement for the Minimum Input Signal Changing Rate.
  • Stable in the Linear Region.
  • Input Offset Voltage: 0.8mV.
  • Operating Temperature: -40°C ∼ 120°C.

📥 Download Datasheet

Datasheet Details

Part number MS8923
Manufacturer Ruimeng
File Size 442.48 KB
Description Push-Pull Output Comparator
Datasheet download datasheet MS8923 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS890 8 Amp Schottky Rectifier Microsemi Corporation
MS80 Surface Mount Si-Bridge-Rectifiers Diotec Semiconductor
MS8000 Single axis analog accelerometer SAFRAN
MS8001 GaAs Schottky Diodes Microsemi
MS8002 GaAs Schottky Diodes Microsemi

Other Datasheets by Ruimeng

Part Number Description
MS8923S Push-Pull Output Comparator
MS8051 CMOS Operational Amplifier
MS8052 CMOS Operational Amplifier
MS8054 CMOS Operational Amplifier
MS8091 350MHz Rail-to-Rail Operational Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

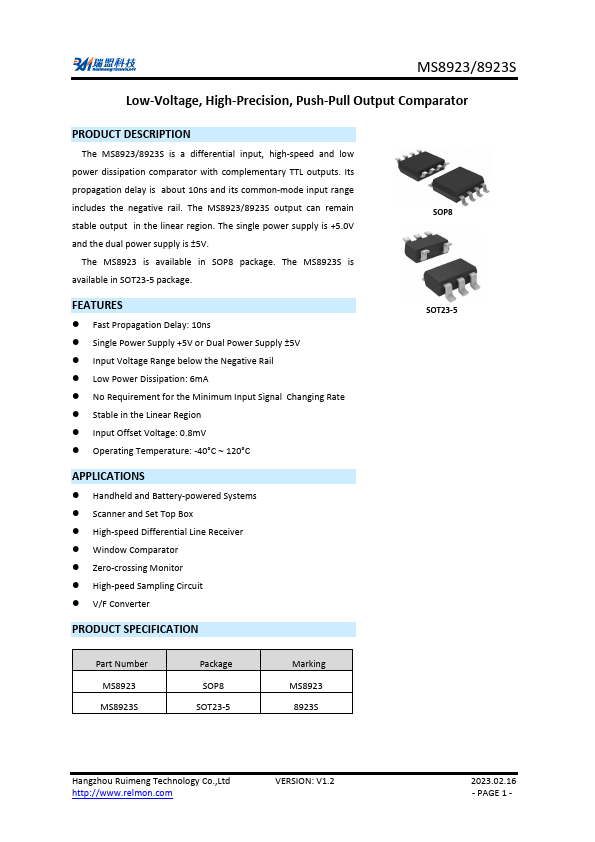

MS8923/8923S Low-Voltage, High-Precision, Push-Pull Output Comparator PRODUCT DESCRIPTION The MS8923/8923S is a differential input, high-speed and low power dissipation comparator with complementary TTL outputs. Its propagation delay is about 10ns and its common-mode input range includes the negative rail. The MS8923/8923S output can remain stable output in the linear region. The single power supply is +5.0V and the dual power supply is ±5V. The MS8923 is available in SOP8 package. The MS8923S is available in SOT23-5 package.
