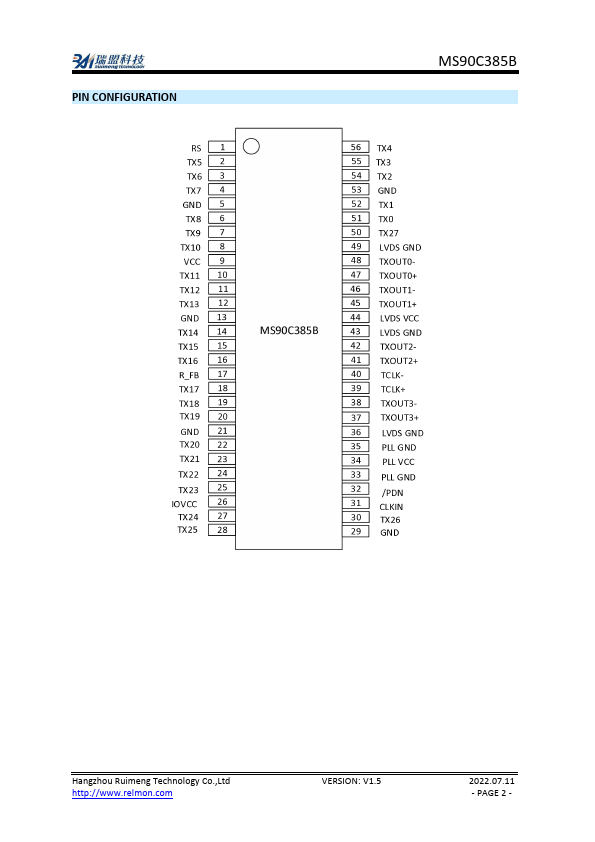

DESCRIPTION The MS90C385B transmitter converts 28 bits TTL data into fourchannel LVDS (Low Voltage Differential Signaling). Clock channel is phase-locked and then is in parallel with data channel. At a transmit clock frequency of 150MHz, 24 bits of RGB data and 3 bits of LCD timing and 1 bit control data are transmitted at a rate of 1050Mbps per LVDS data channel. When input clock frequency is 150MHz, the data transmit rate is 525Mbytes/sec. The MS90C385B can be programmed as valid for rising edge or falling edge via R_FB pin. This chip is an ideal product to solve EMI and cable length problems associated with wide bandwidth, high-speed TTL interfaces. FEATURES - Frequency Range: 20-150MHz Clock Signal - Less Bus reducing Cable Size and Cost - IO Power Supply patible with 1.8V, 3.3V - Low Power Dissipation Mode - Support VGA, SVGA, XGA, SXGA - Support Extend Frequency Spectrum Clock Generation - Internal Integrated Input Jitter Filter - 525Megabytes/sec Bandwidth - Reduced LVDS Swing to reduce EMI (200m V or 345m V Optional) - PLL without External Structure - Observe TIA/EIA-644 LVDS Standard APPLICATIONS - Monitor Camera - Desktop/Laptop - Printer RODUCT SPECIFICATION TSSOP56 Part Number MS90C385B Package TSSOP56 Marking MS90C385B Hangzhou Ruimeng Technology Co.,Ltd http://.relmon. VERSION: V1.5 - PAGE 1 - PIN CONFIGURATION Hangzhou Ruimeng Technology Co.,Ltd http://.relmon. VERSION: V1.5 - PAGE 2 - MS90C385B PIN DESCRIPTION Pin Name 47, 48 TXOUT0+, TXOUT0- 45, 46 TXOUT1+,...
