MS9280 Datasheet 10-Bit 35MSPS A/D Converter

Manufacturer: Ruimeng

MS9280 10-bit 35msps a/d converter by Ruimeng - Datasheet Preview

Datasheet Details

Part number	MS9280
Manufacturer	Ruimeng
File Size	451.80 KB
Description	10-Bit 35MSPS A/D Converter
Download	MS9280 Download (PDF)

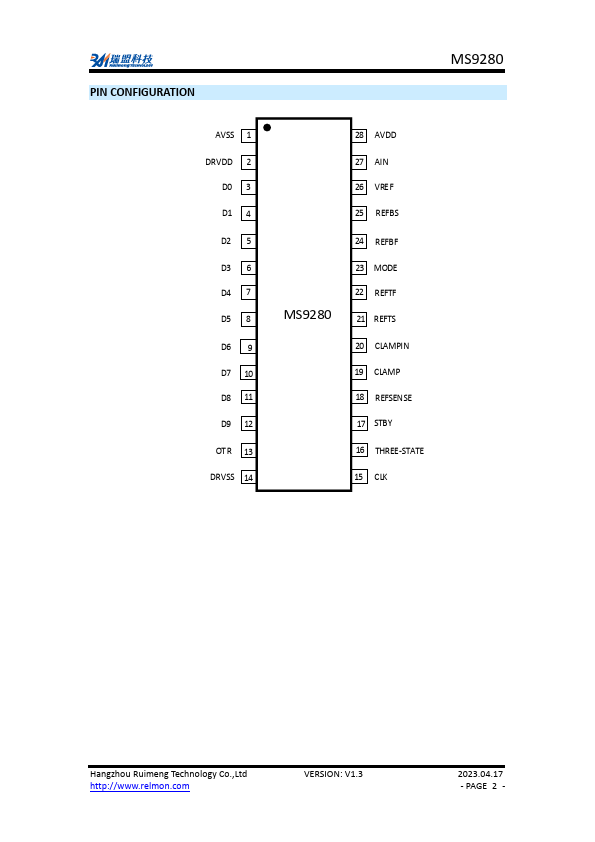

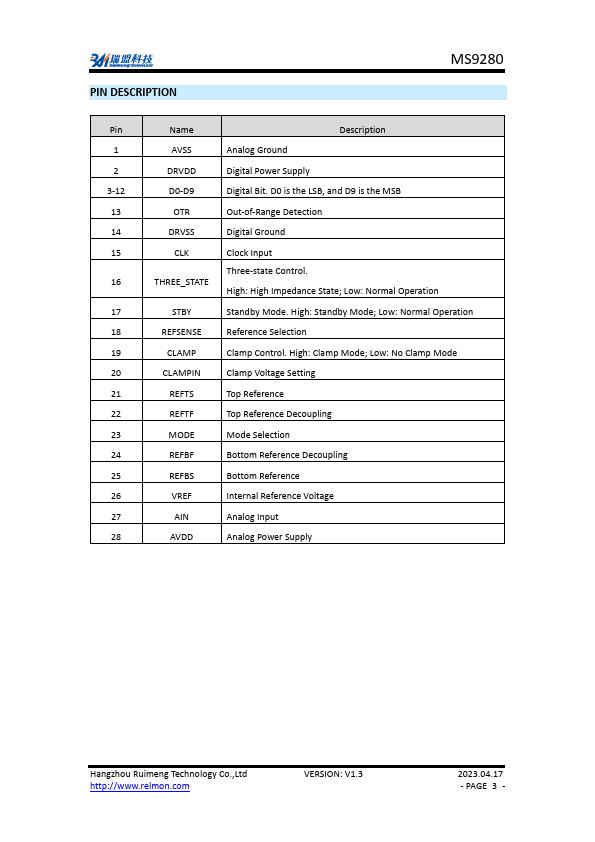

General Description

The MS9280 is a single-chip, single power supply, 10bit, 35MSPS analog-to-digital converter.

It is integrated with the sample-and-hold amplifier and reference power supply internally.

The MS9280 uses multistage differential pipeline architecture to guarantee no missing codes over the full operating temperature range at 35MSPS data rate.

Overview

10-Bit, 35MSPS A/D Converter PRODUCT.

Key Features

10bit, 35MSPS Pipeline ADC.
Low Power Dissipation: 90mV (3V Power Supply).
Wide Operating Voltage Range: 2.7V  5.5V.
High Linearity: DNL: 0.2 LSB.
Low Power Dissipation Control Mode.
Three-state Outputs.
Quantized Range Detection.
Built-in Clamp Function.
High-precision Programmable Reference.
IF Sub-sampling up to 135MHz.
