EC3201C - NPN Epitaxial Planar Silicon Transistors

Download the EC3201C datasheet PDF. This datasheet also covers the EC3101C variant, as both devices belong to the same npn epitaxial planar silicon transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Ultraminiature package facilitates miniaturization in end products. Specifications ( ) : EC3101C Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Electrical Characteristics at Ta=25°C Conditions Parameter Collector Cutoff Current Emitter Cutoff.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EC3101C-SANYO.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
EC3228 High-Performance PWM Controller E-CMOS
EC3292B 18V/2A High Efficiency Synchronous Rectified Step-Down DC/DC Converter E-CMOS
EC30HA03L Schottky Barrier Diode Kyocera
EC30HA03L SBD Nihon Inter Electronics
EC30HA04 Schottky Barrier Diode Kyocera

Other Datasheets by SANYO (now Panasonic)

Part Number Description
EC3101C PNP Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

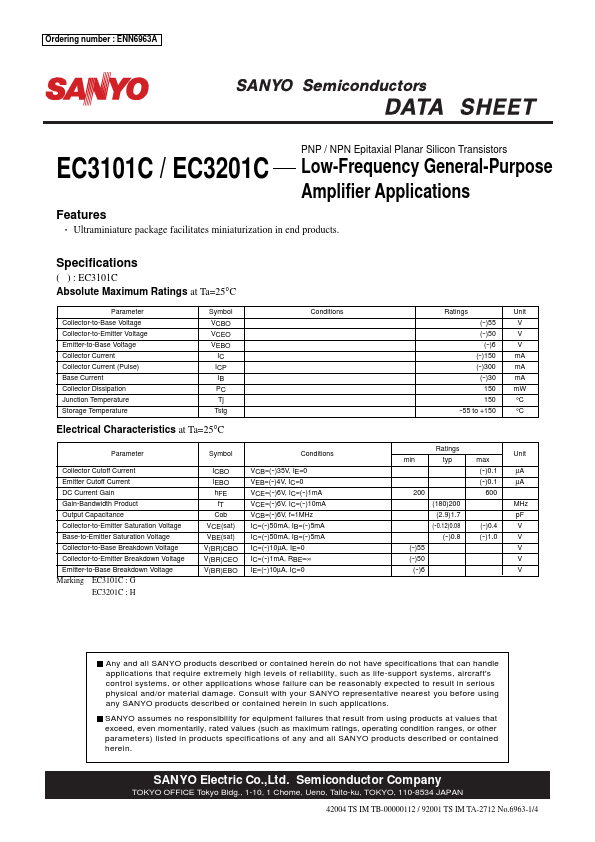

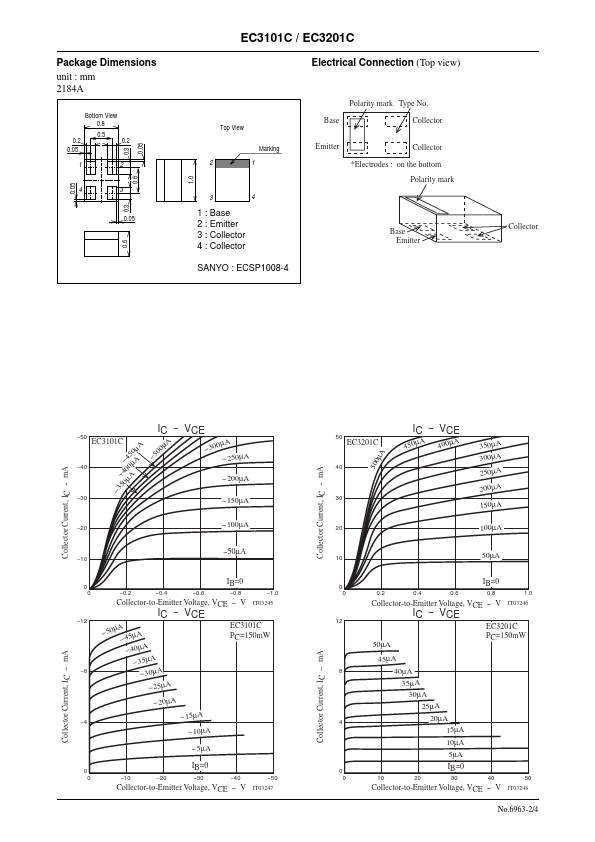

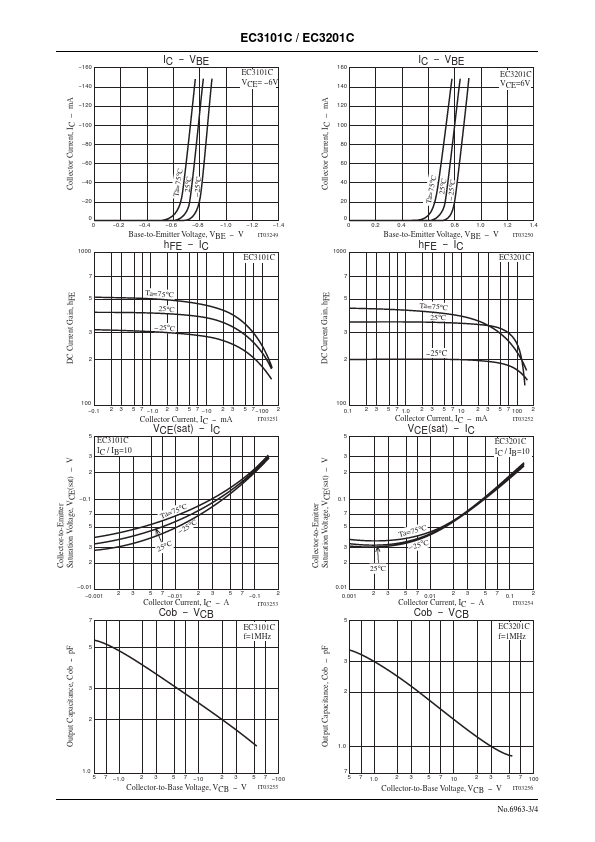

Ordering number : ENN6963A EC3101C / EC3201C EC3101C / EC3201C PNP / NPN Epitaxial Planar Silicon Transistors Low-Frequency General-Purpose Amplifier Applications Features • Ultraminiature package facilitates miniaturization in end products.
